Home
>>
Honda
>>
1996
>>
Del Sol L4-1590cc 1600
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
Schematic
Schematic

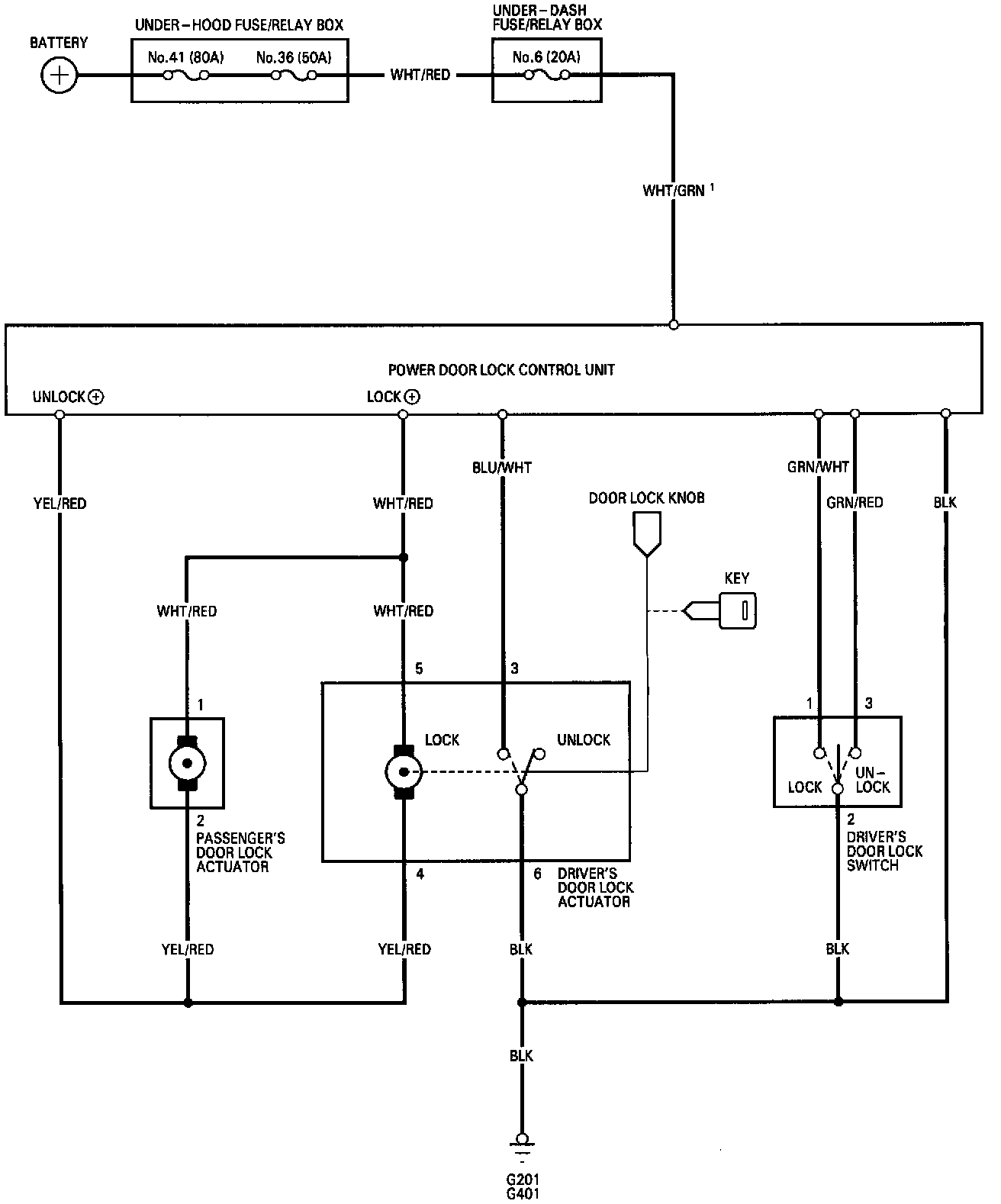

Power Door Locks-Circuit Diagram:
