Malfunction Lamp / Indicator: Locations

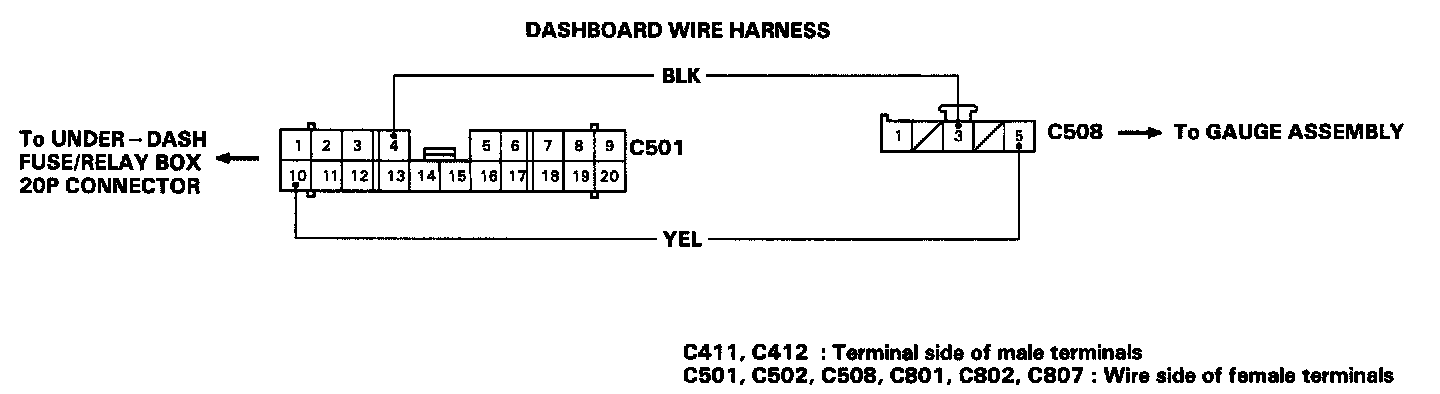

SRS Indicator Light Power Circuit:

SRS Indicator Light Power Circuit

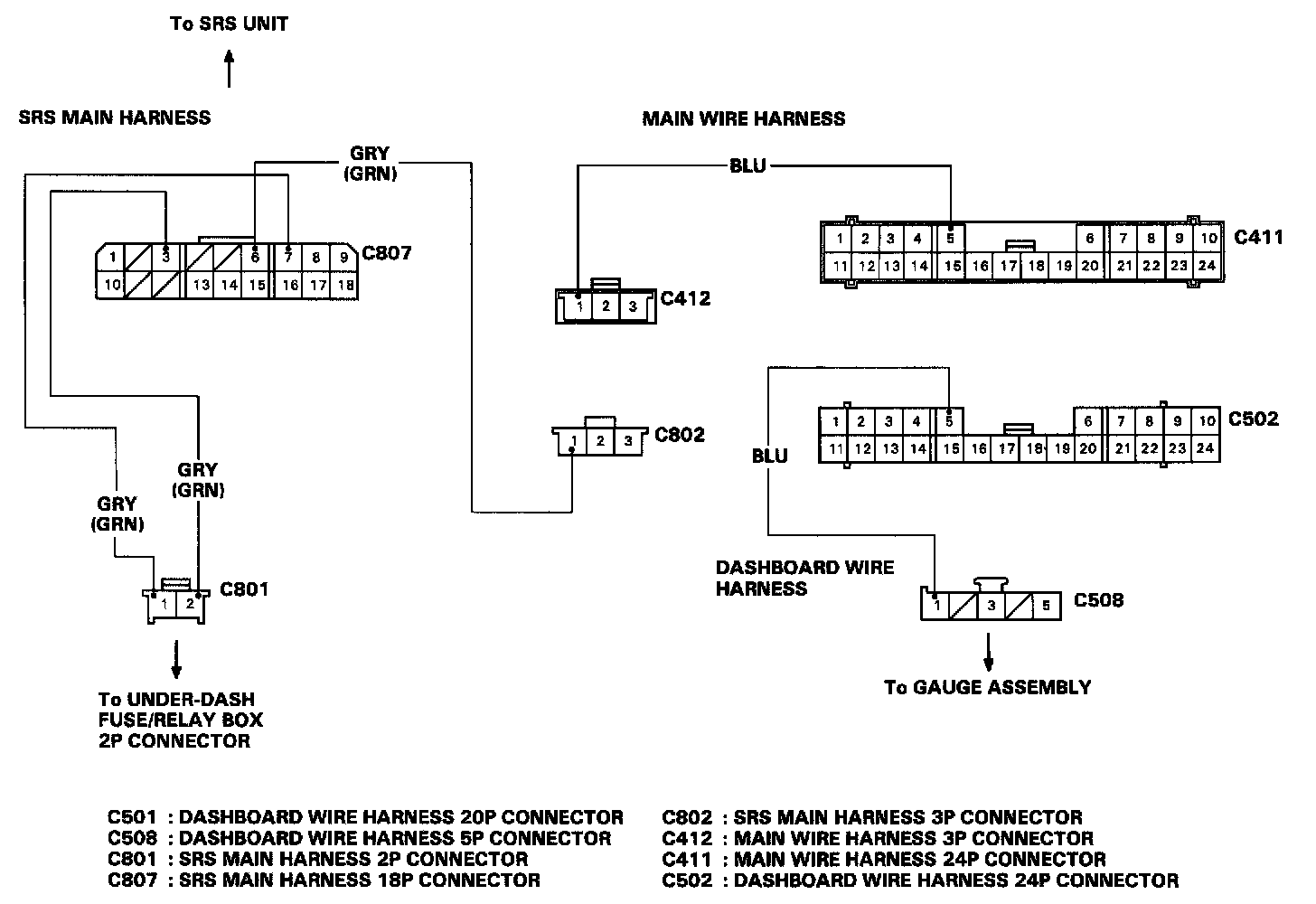

SRS Indicator Light Control Circuit:

SRS Indicator Light Control Circuit
