Home
>>
Honda
>>
1996
>>
Civic Sedan L4-1.6L SOHC (VTEC)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Diagrams
>>

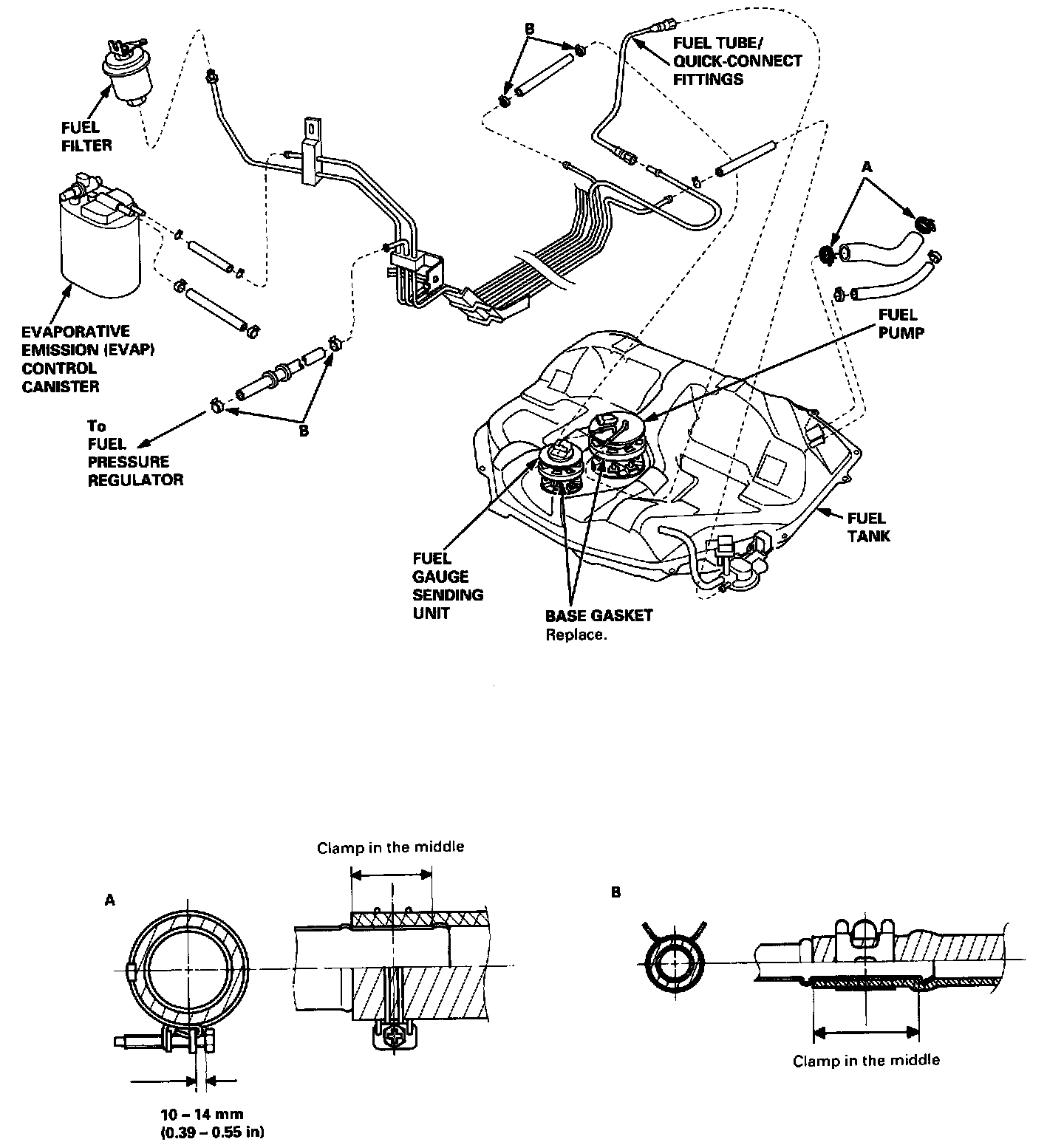

Exploded Views
Exploded Views
NOTE:
Check all hose clamps and retighten if necessary.
