Civic Sedan L4-1.6L SOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>
System Diagram
System Diagram
Fan Controls:

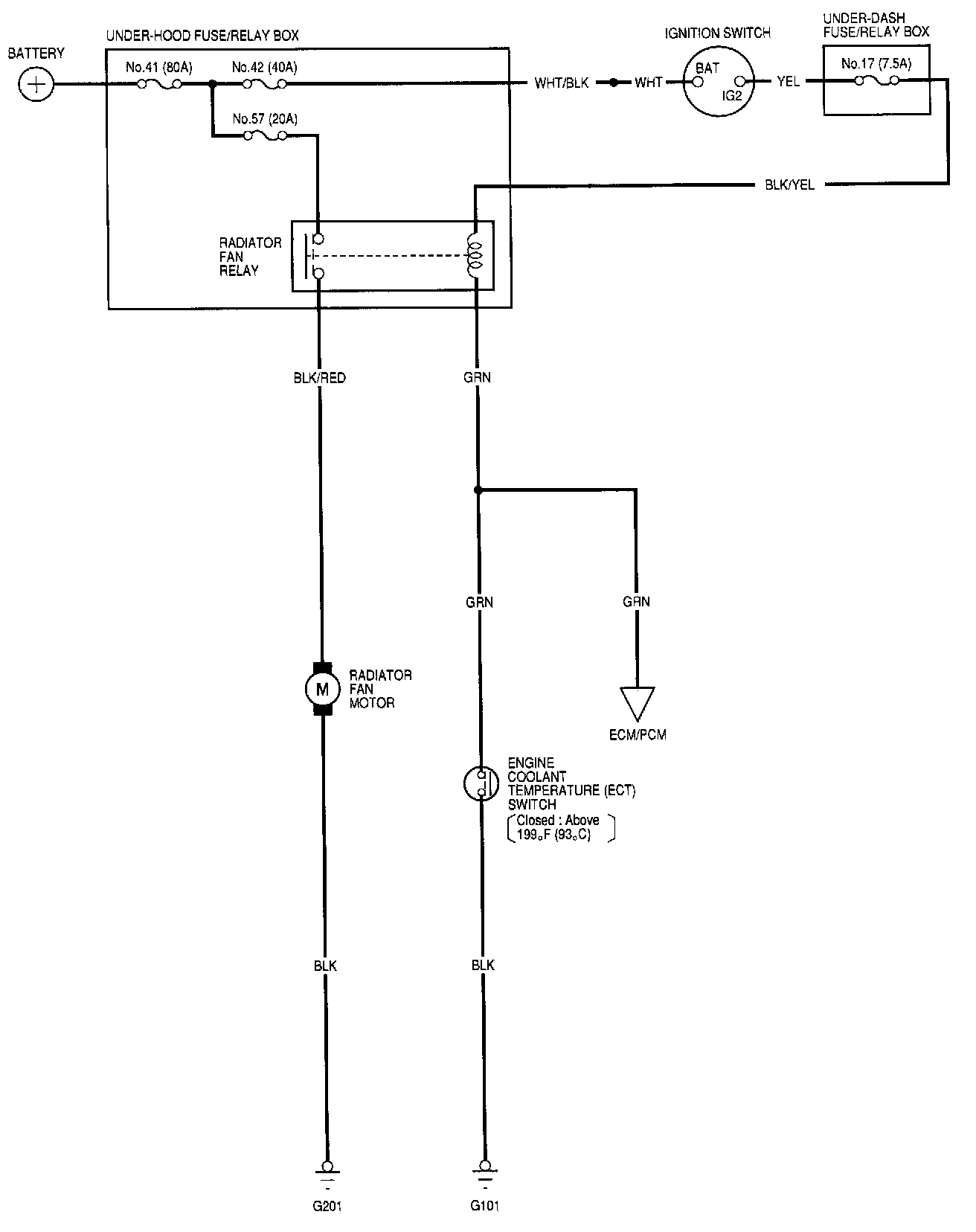

Circuit Diagram:
