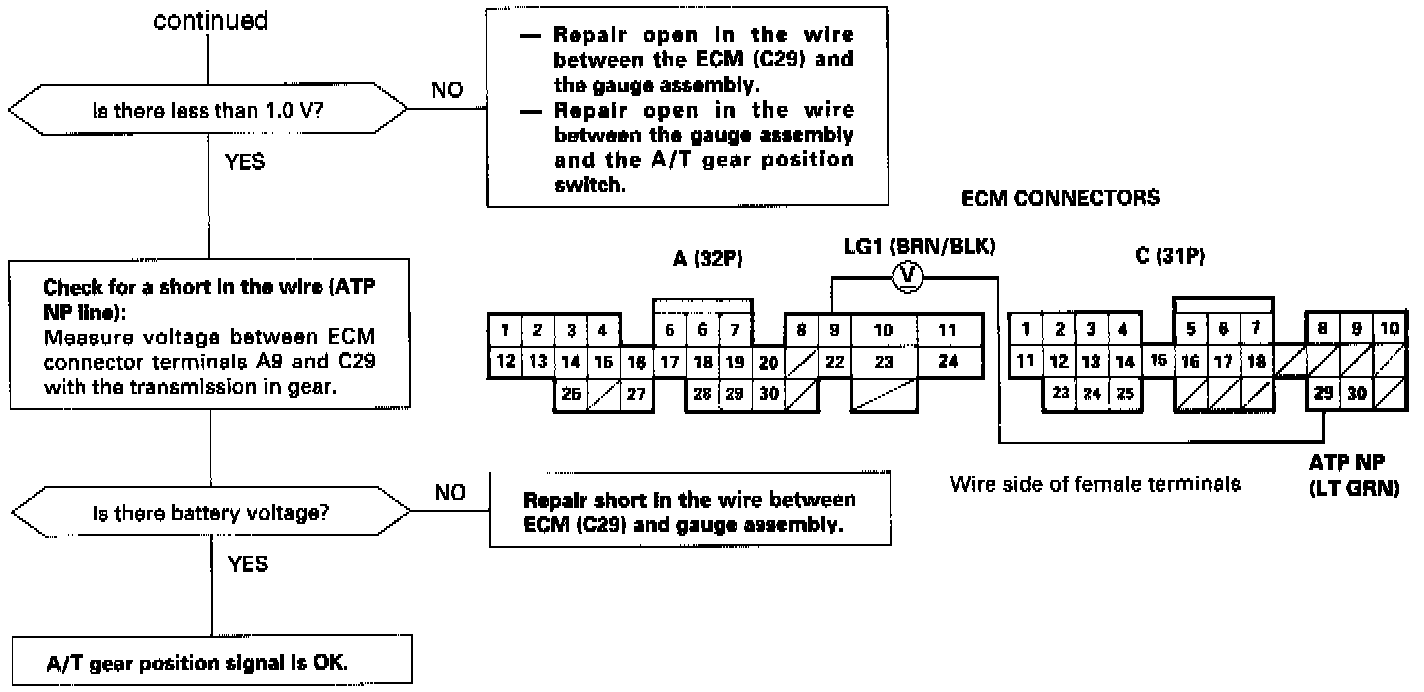

Shift Lever Position Switch
Shift Lever Position Switch
This signals the ECM when the transmission is in N or P position.
