Piston Ring: Service and Repair

REPLACMENT

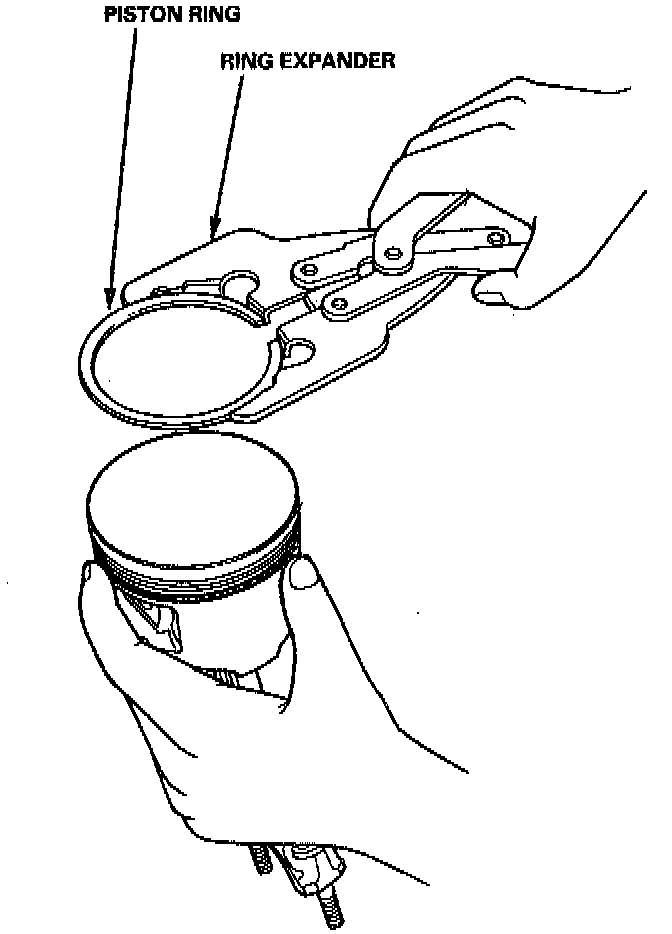

1. Using a ring expander, remove the old piston rings.
2. Clean all ring grooves thoroughly.

NOTE:
^ Use a squared-off broken ring or ring groove cleaner with blade to fit piston grooves.
^ Top and 2nd ring grooves are 1.2 mm (0.05 inch) wide, and the oil ring groove is 4.0 mm (0.16 inch) wide.
^ File down blade if necessary.

CAUTION: Do not use a wire brush to clean the ring grooves, or cut ring grooves deeper with cleaning tools.

NOTE: If the piston is to be separated from the connecting rod, do not install new rings yet.

3. Install new rings in the proper sequence and position.

NOTE: Do not use old piston rings.


ALIGNMENT





1. Install the piston rings.

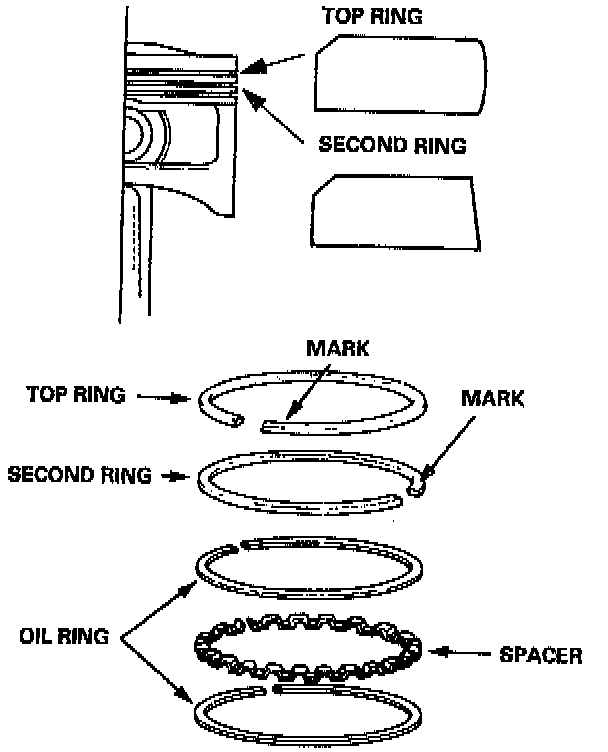

^ Identify top and second rings by the chamfer on the edge, and make sure they are in proper grooves on the piston.

NOTE: The manufacturing marks must be facing upward.

2. Rotate the rings in grooves to make sure they do not bind.

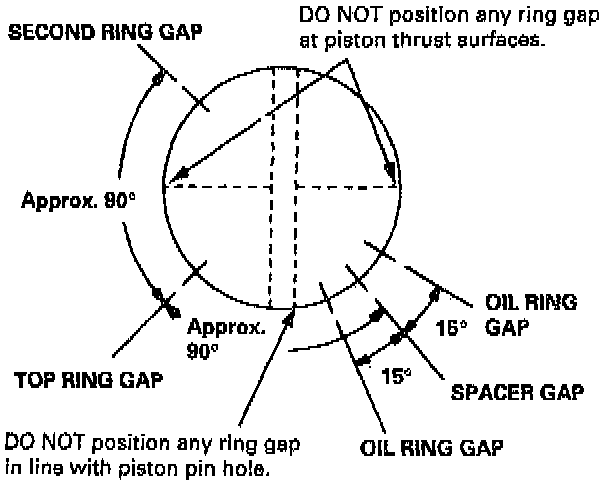

3. Position the ring end gaps as shown.
