Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Honda
>>
1996
>>
Accord Sedan V6-2.7L SOHC (24 Valve)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Torque Converter Housing / Valve Body
Torque Converter Housing / Valve Body
Torque Converter Housing / Valve Body:

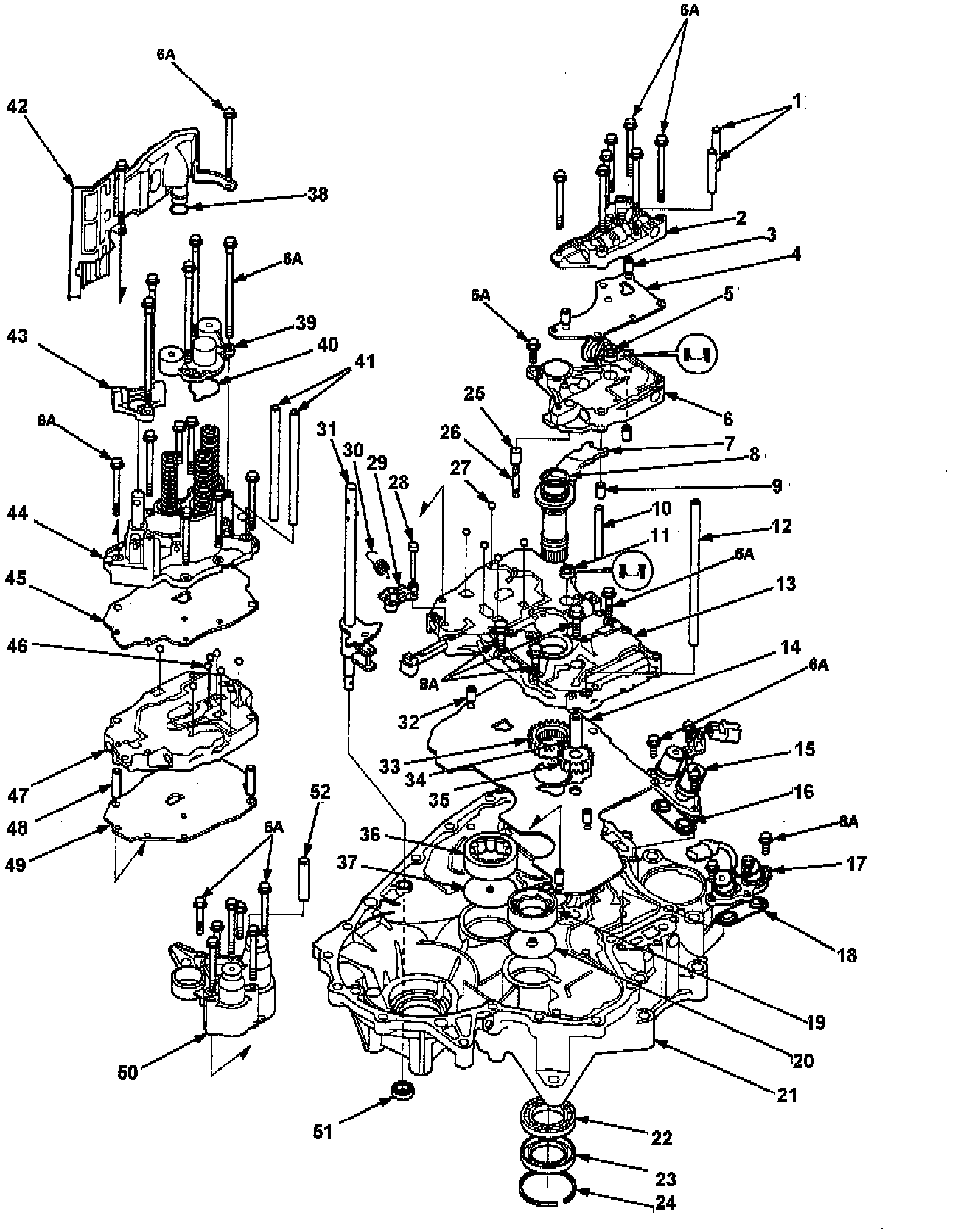

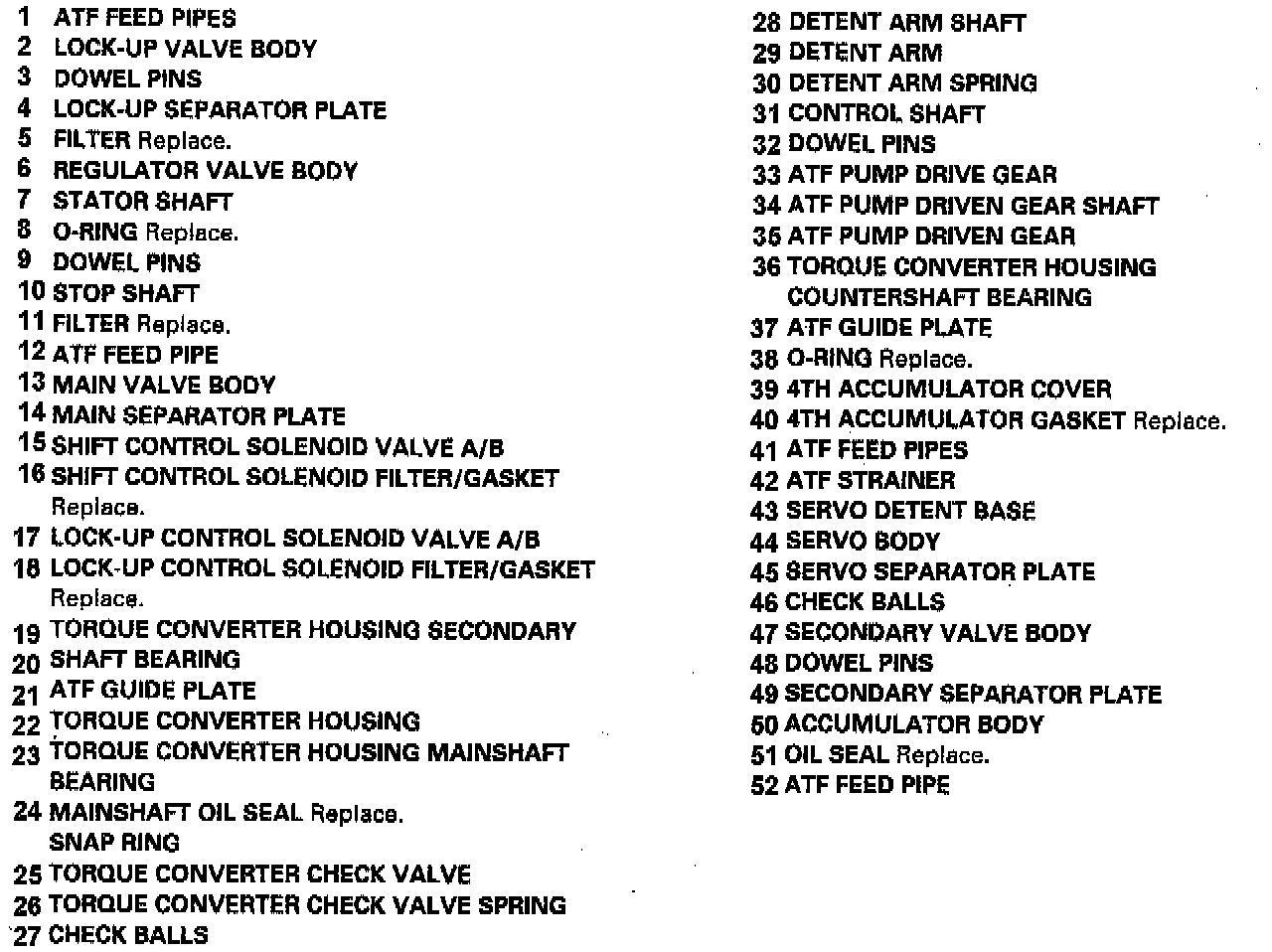

Torque Converter Housing / Valve Body Components:
