Accord Coupe L4-2.2L SOHC VTEC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G402
G402

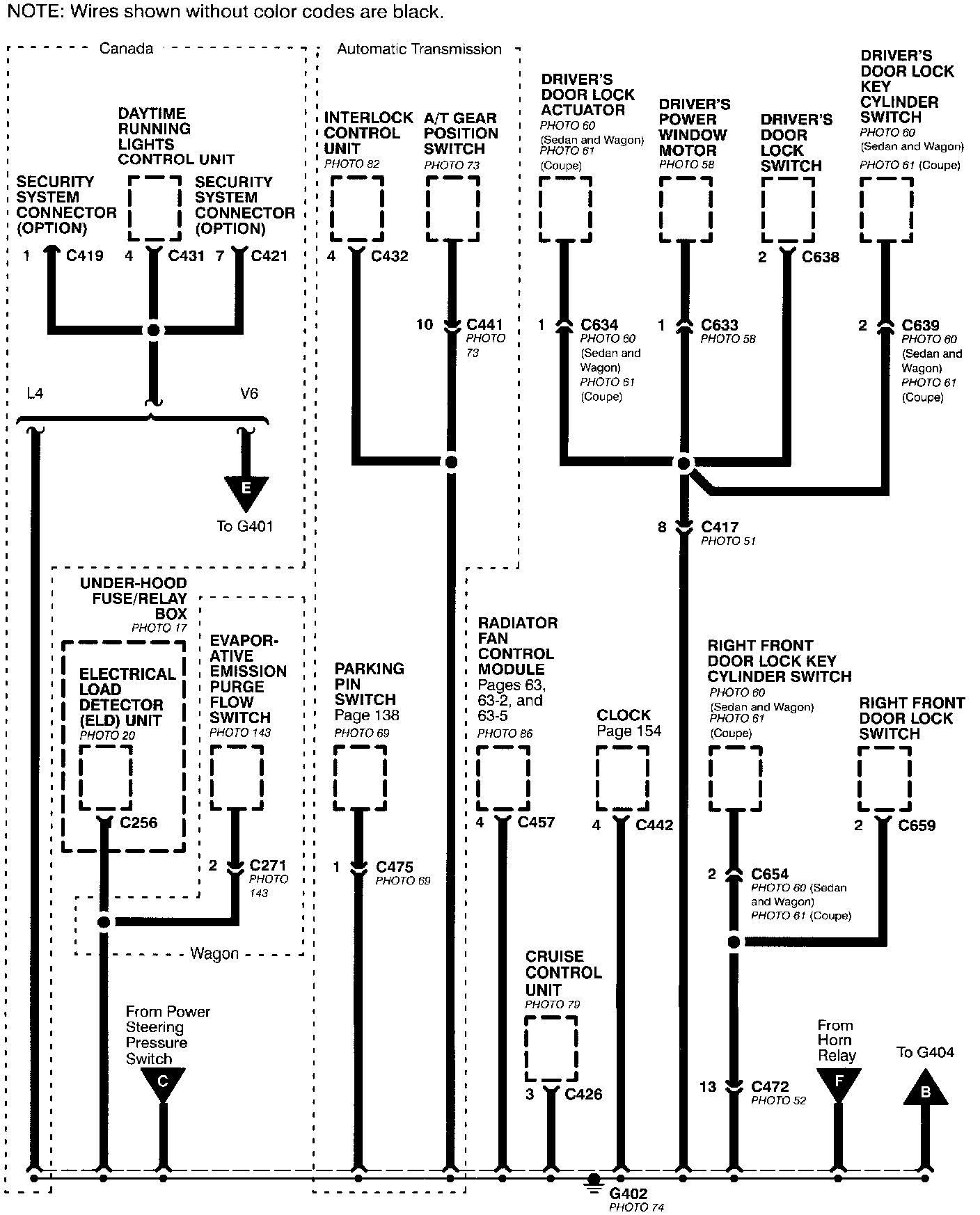

Ground Distribution - G402:
