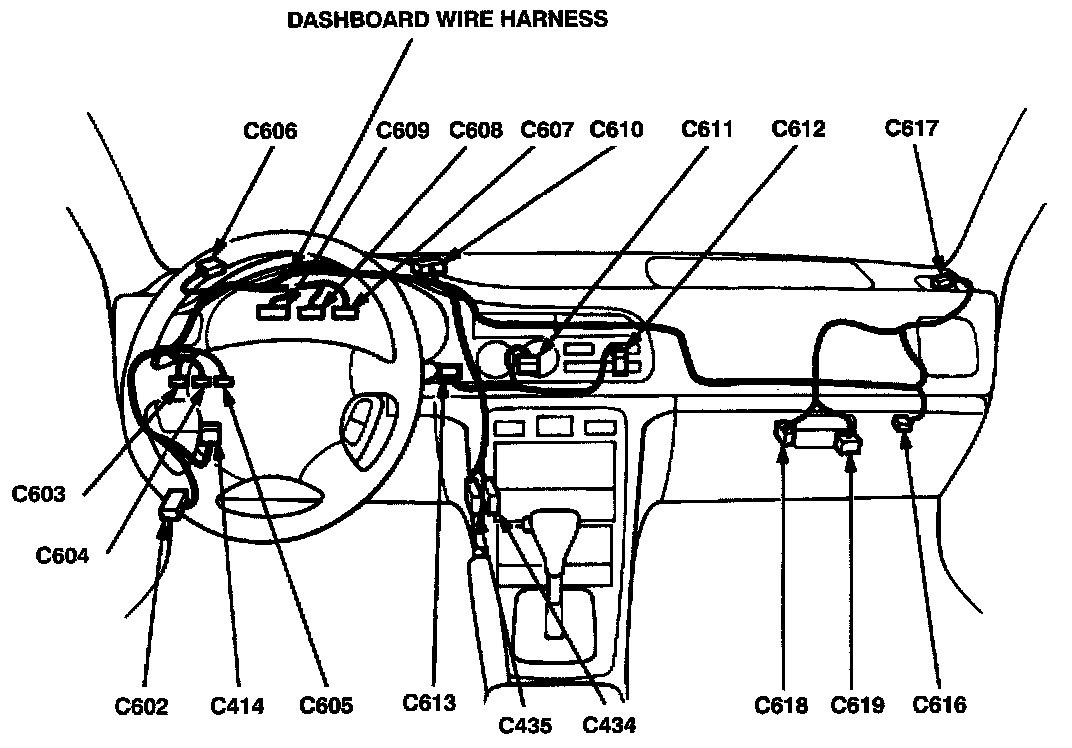

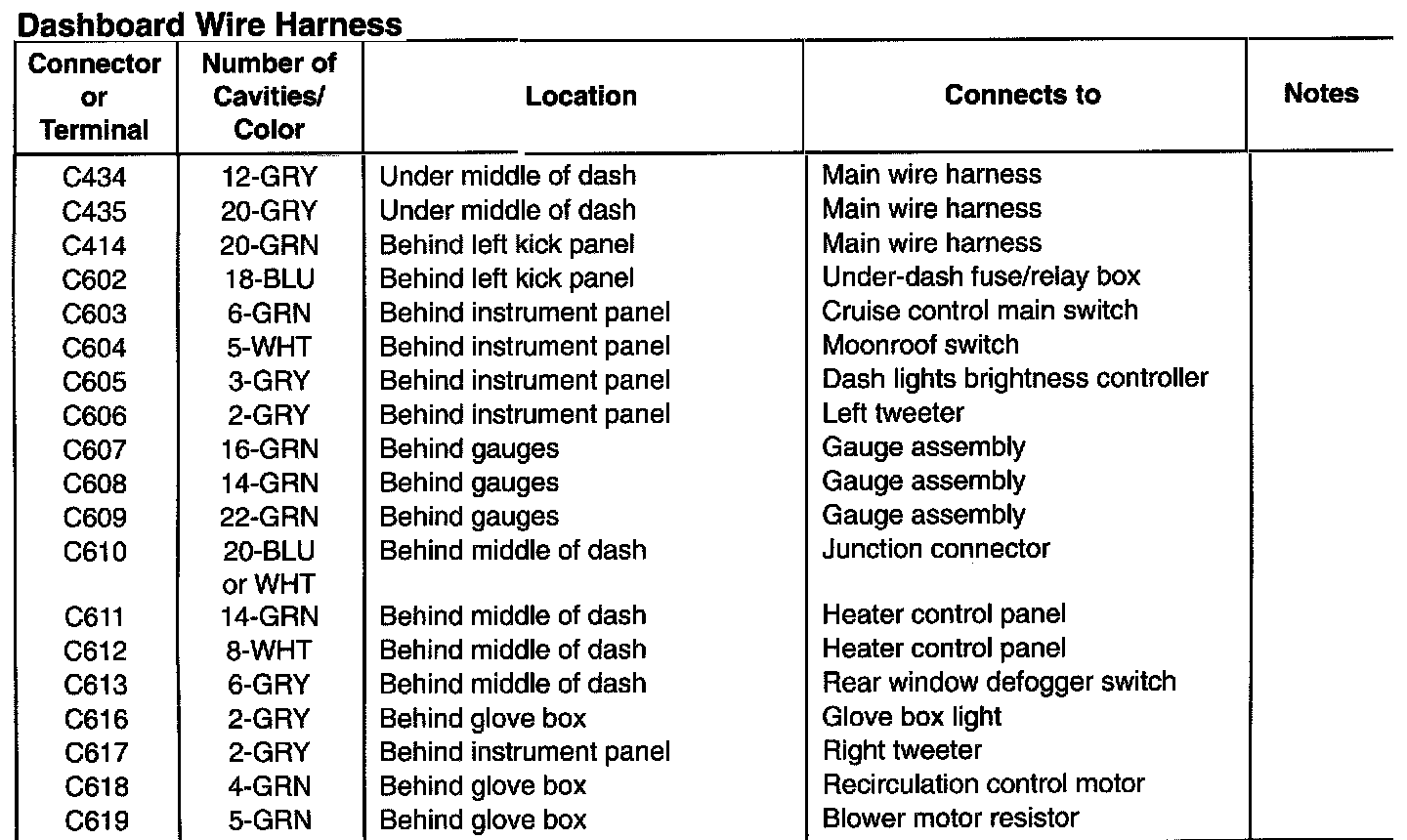

Instrument Panel, Gauges and Warning Indicators: Locations

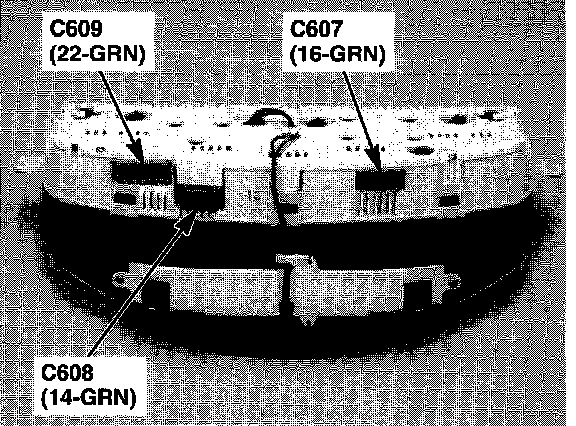

Brake Lamp Warning Indicator,Top Of Gauge Assembly, Connector 608.
