Home
>>
Honda
>>
1996
>>
Accord Coupe L4-2.2L SOHC VTEC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Ground Distribution
>>
G403
G403

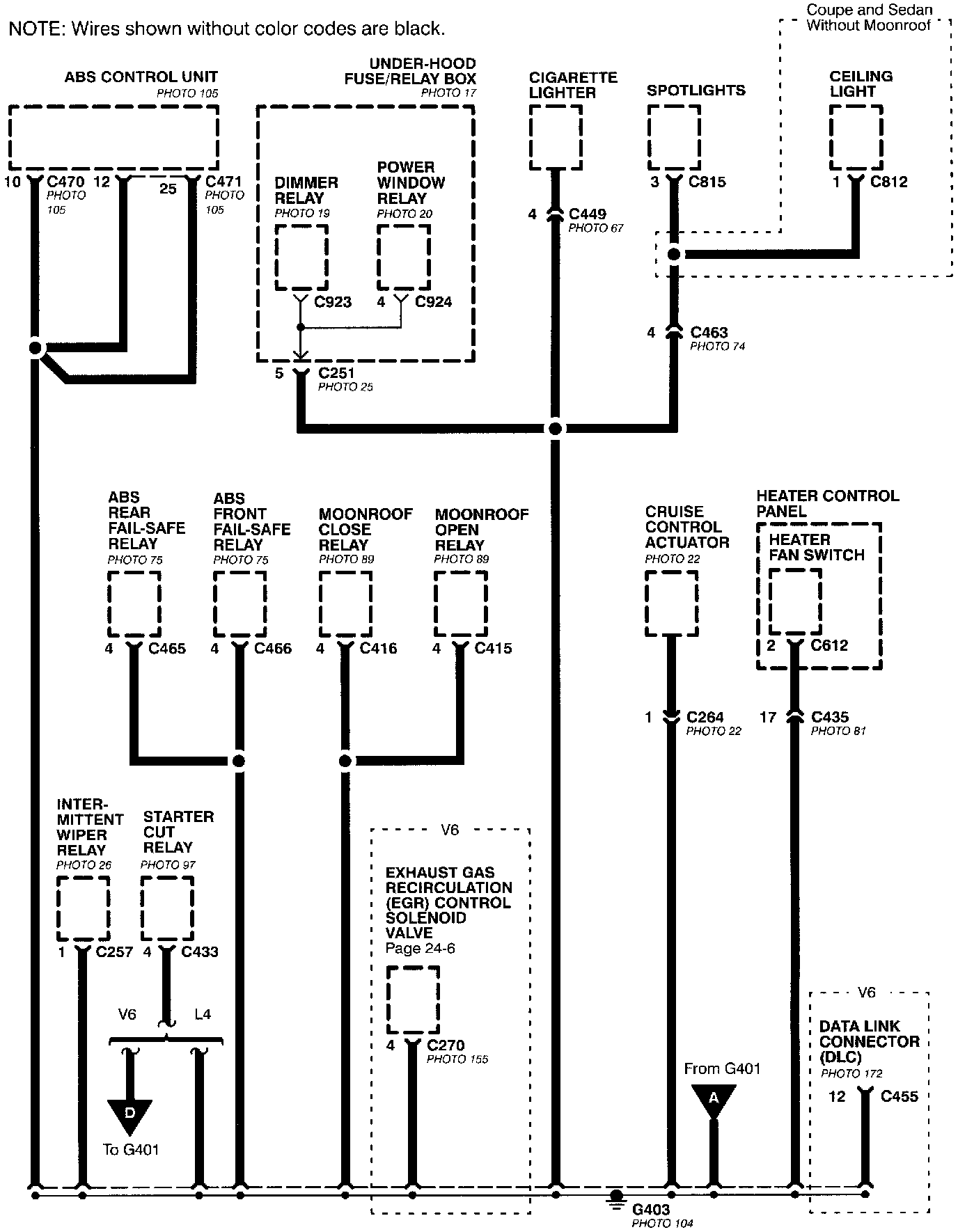

Ground Distribution - G403:
