Circuit Diagram

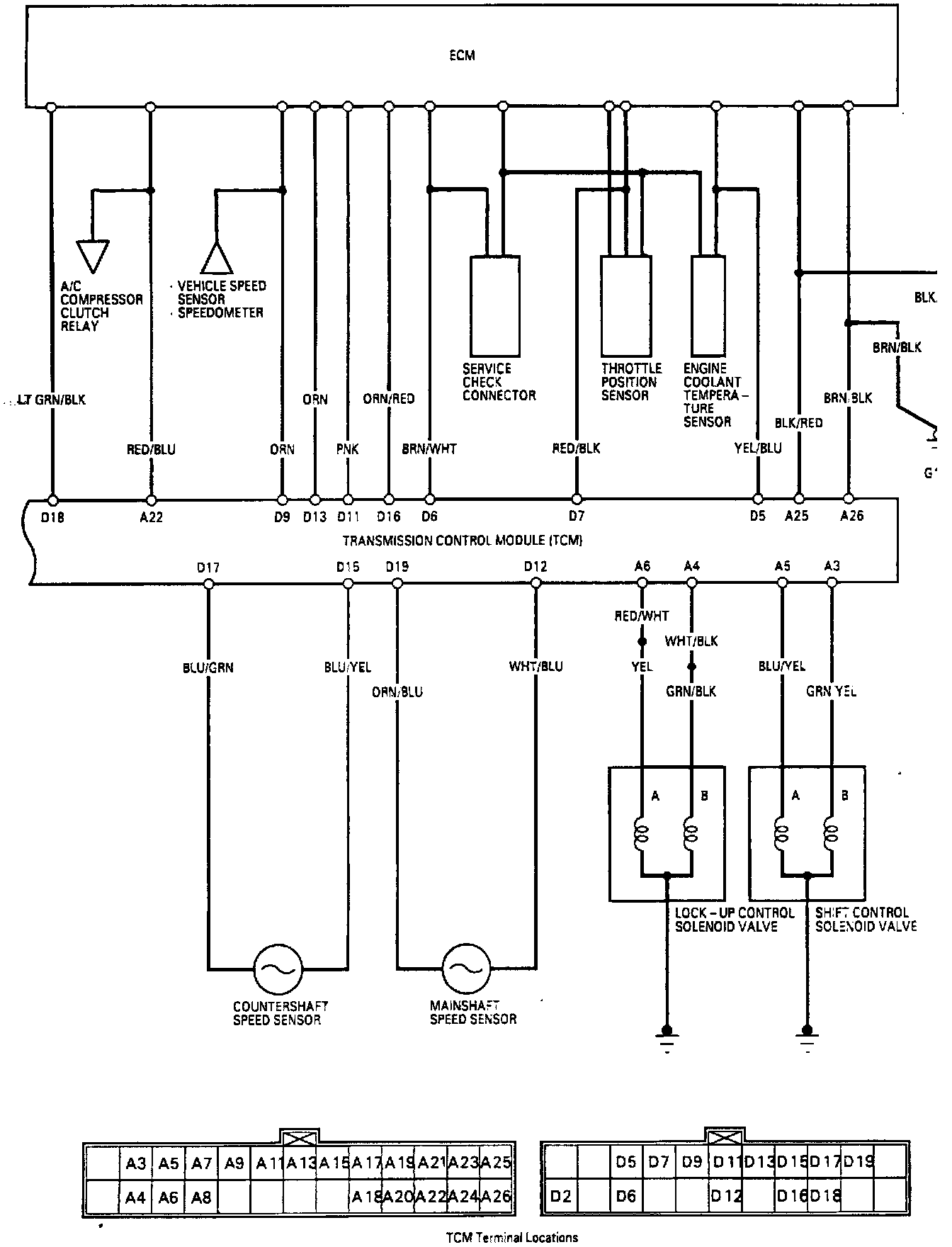

Transmission Controls Circuit Diagram (Part 1 Of 2):

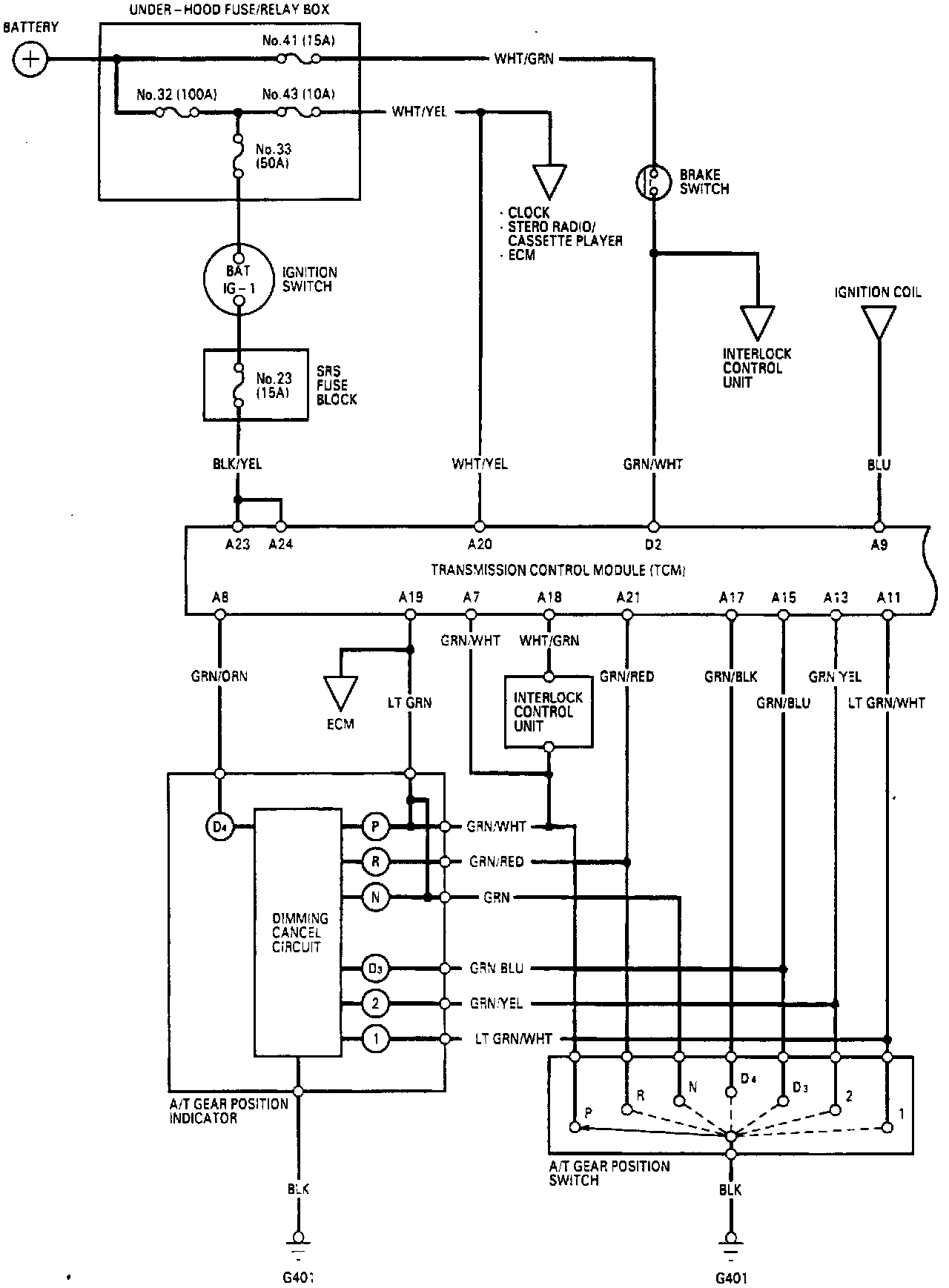

Transmission Controls Circuit Diagram (Part 2 Of 2):
