Honda
>>
1995
>>
Prelude L4-2.2L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G551
G551

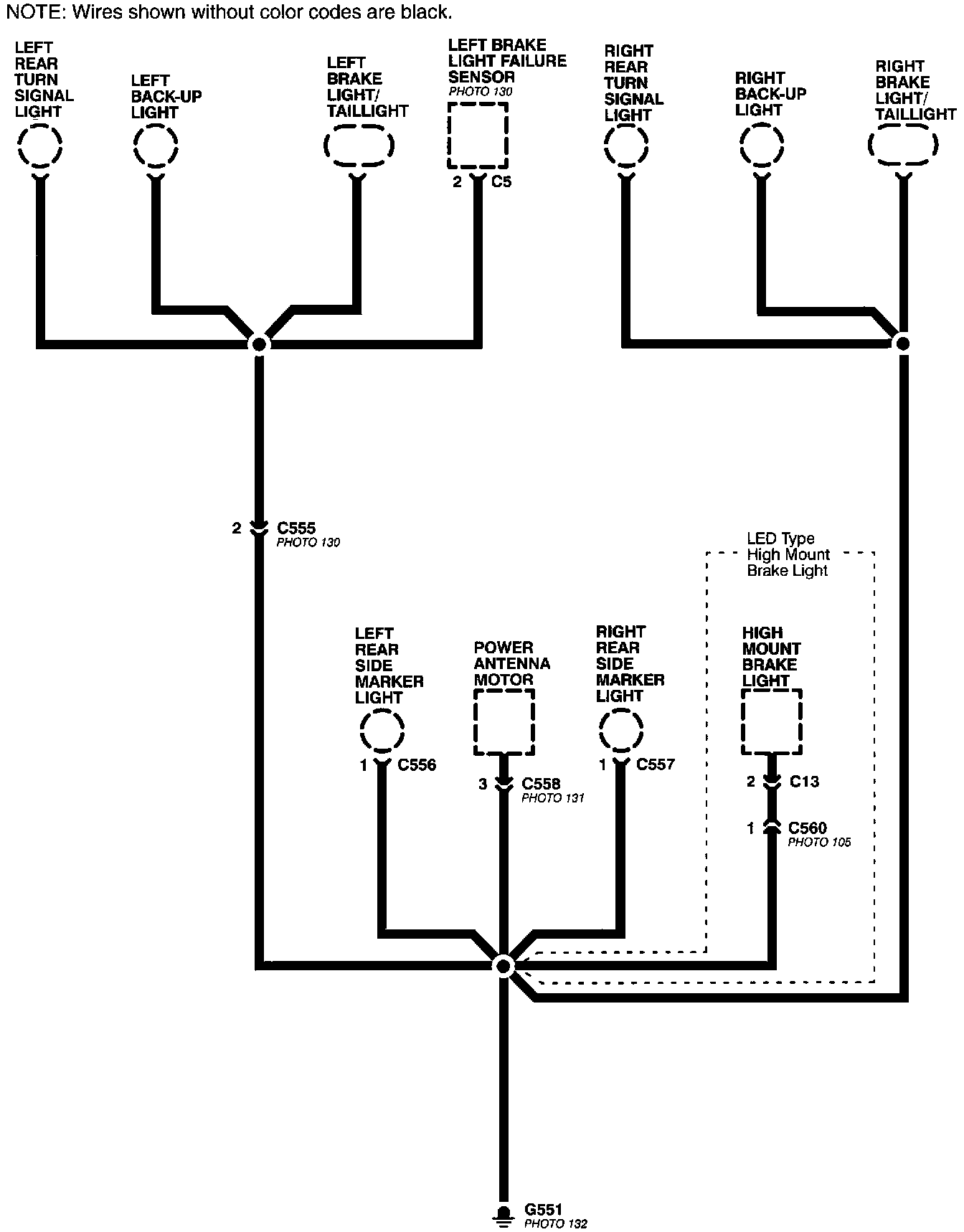

Ground Distribution - G551:
