Prelude L4-2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Sunroof / Moonroof
Sunroof / Moonroof

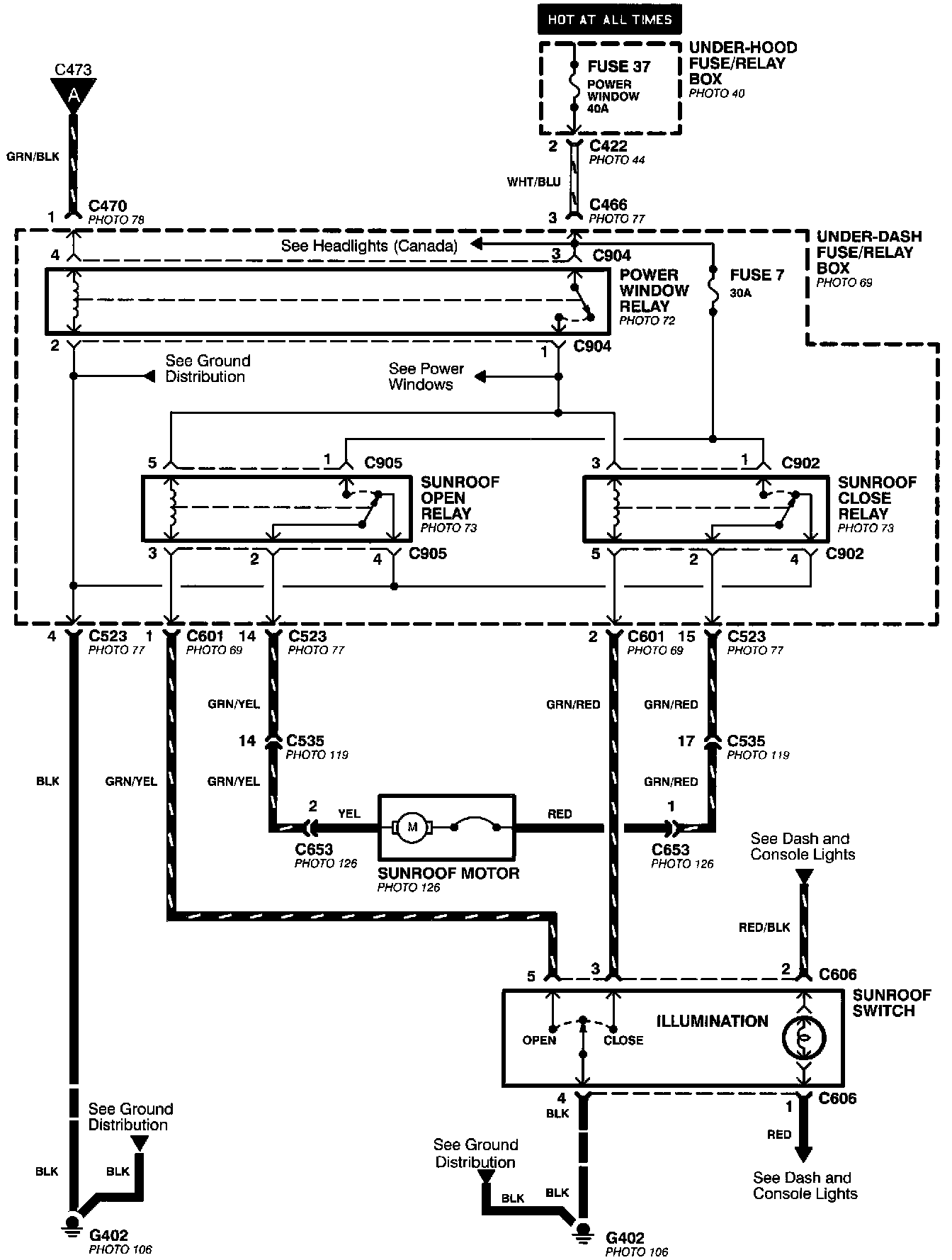

Sunroof - Key-OFF Timer Circuit (Part 1 Of 2):

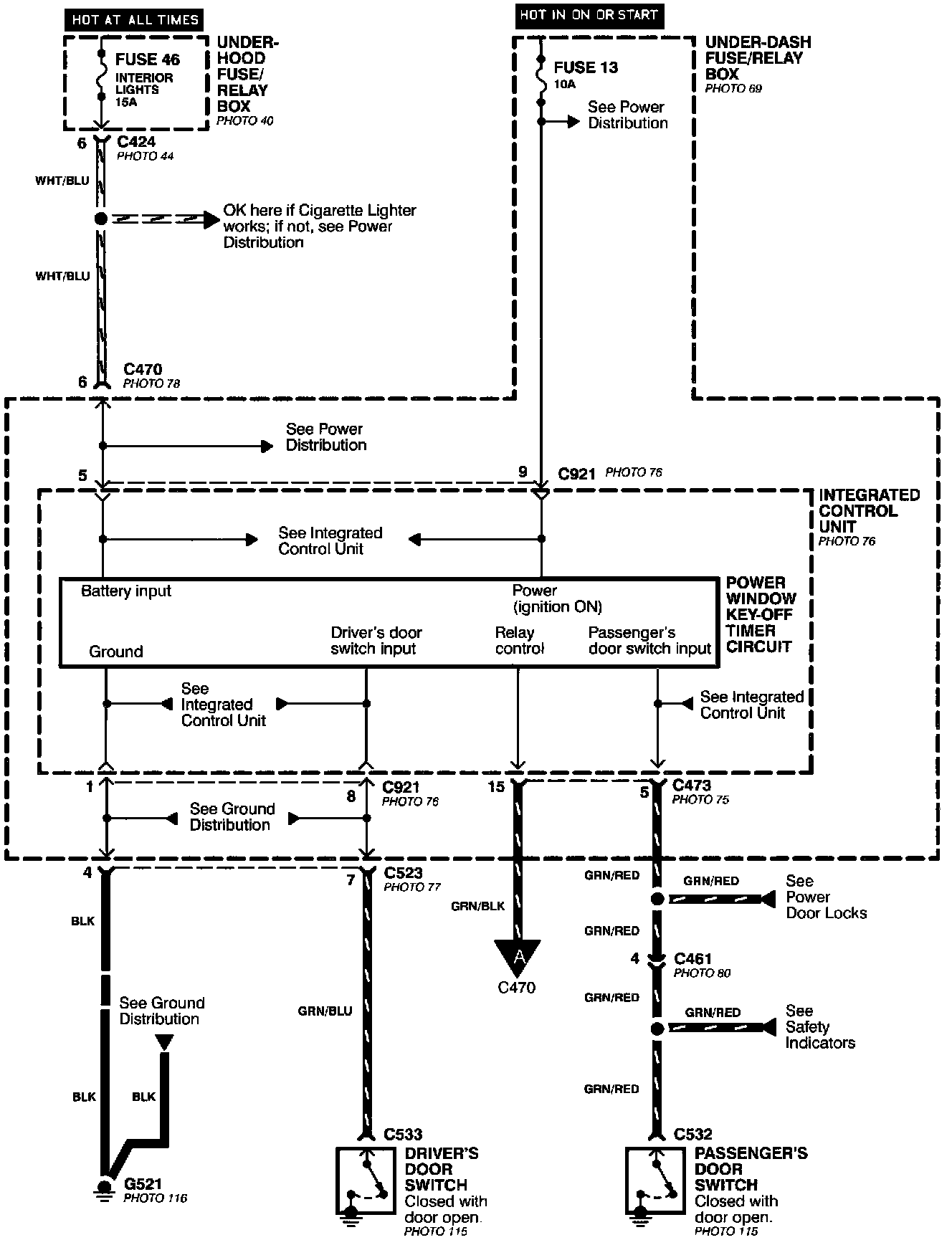

Sunroof - Key-OFF Timer Circuit (Part 2 Of 2):
