Wiring Diagrams

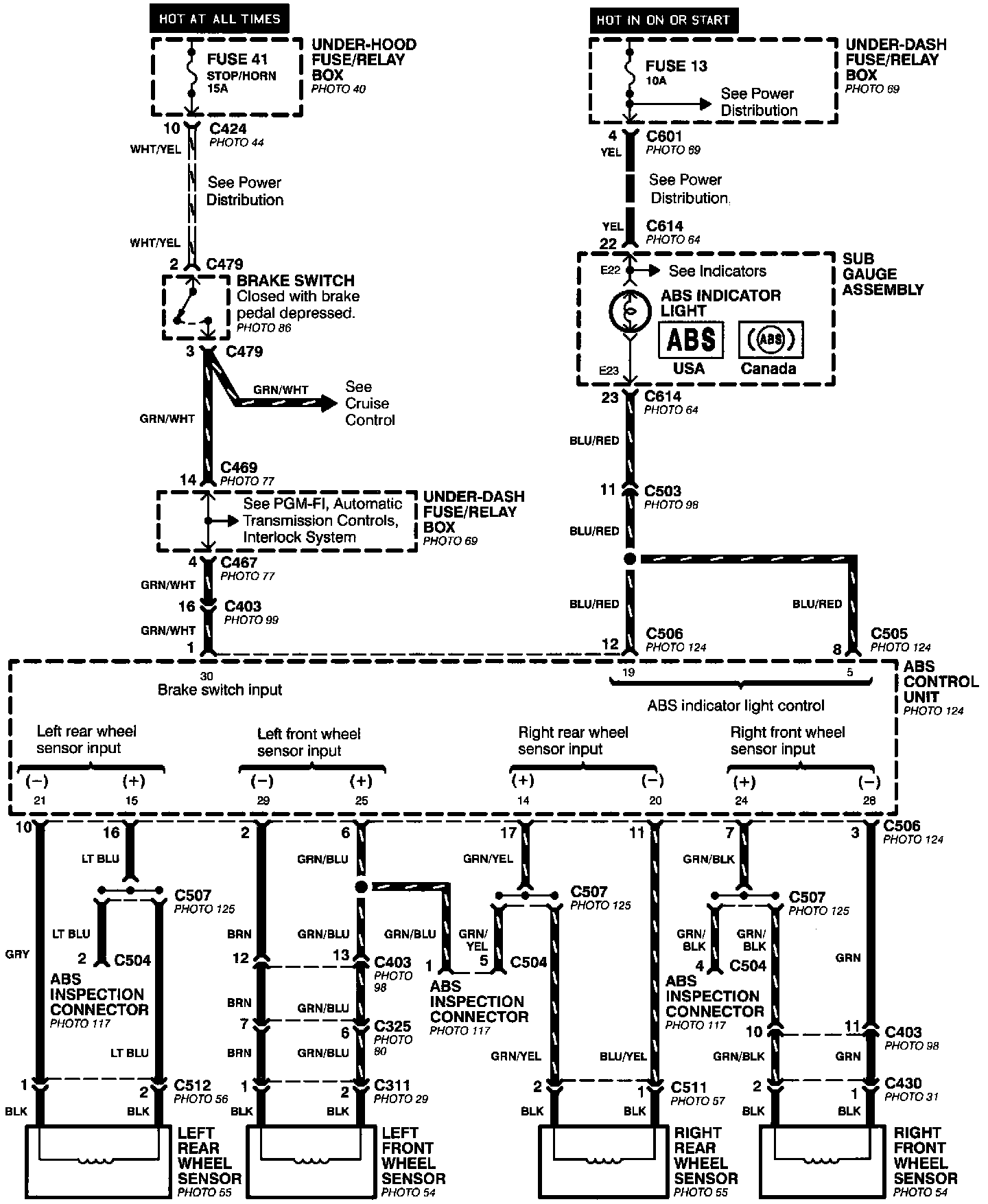

Anti-lock Brake System (ABS) - Brake Switch, Indicator, And Wheel Speed Sensor Inputs:

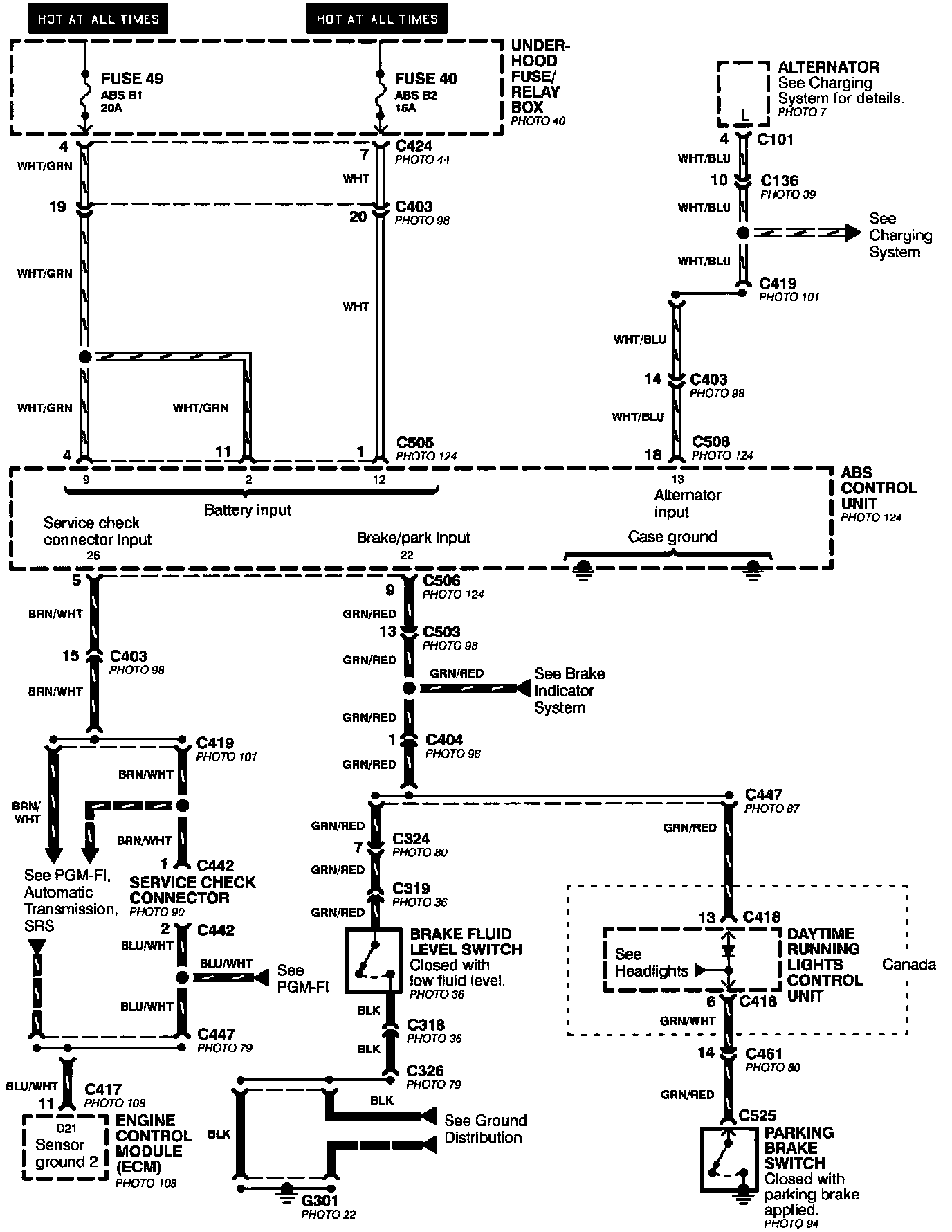

Anti-lock Brake System (ABS) - Power, Brake Fluid Switch, And Parking Brake Switch Inputs:

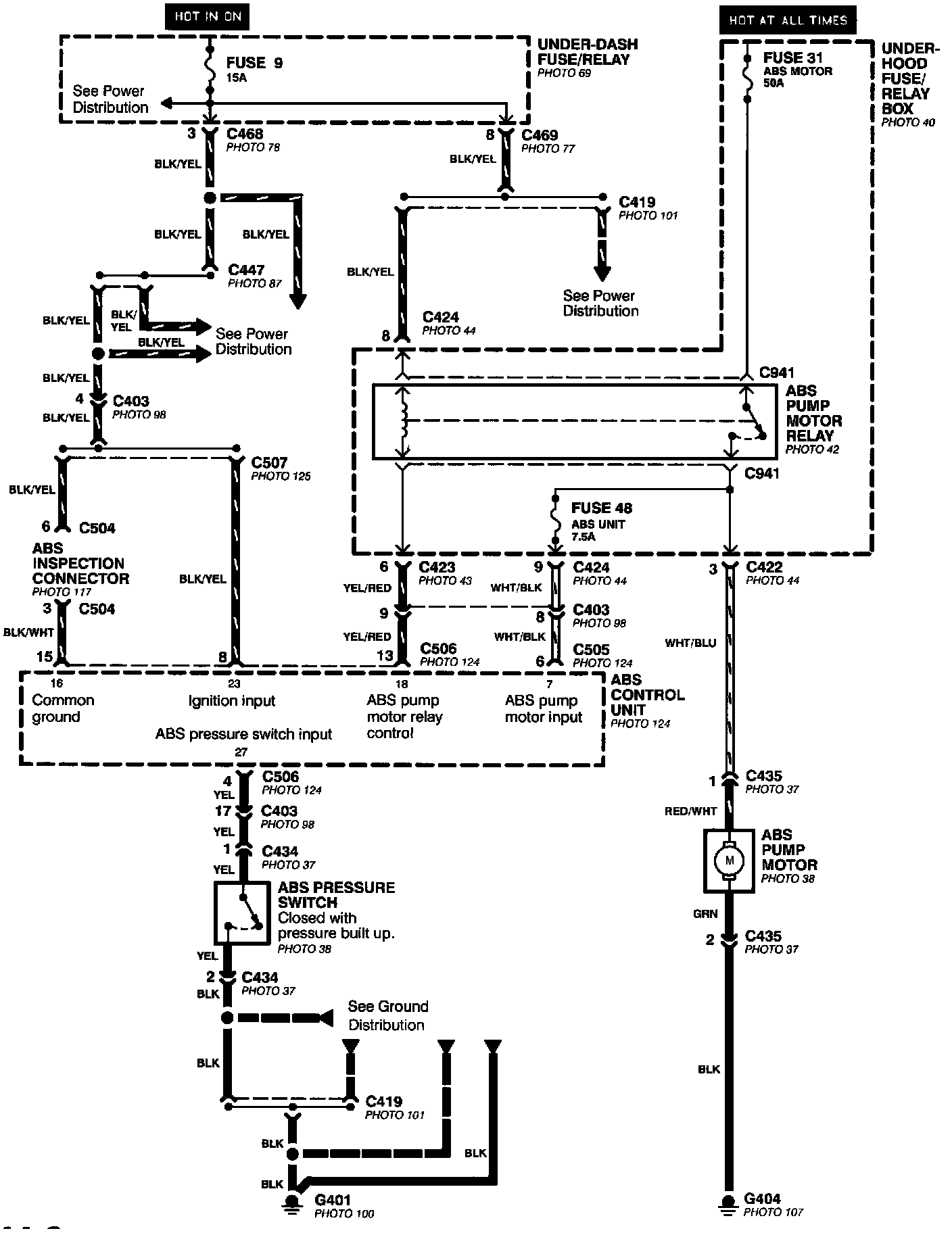

Anti-lock Brake System (ABS) - Motor, Pressure Switch, And Ignition Inputs:

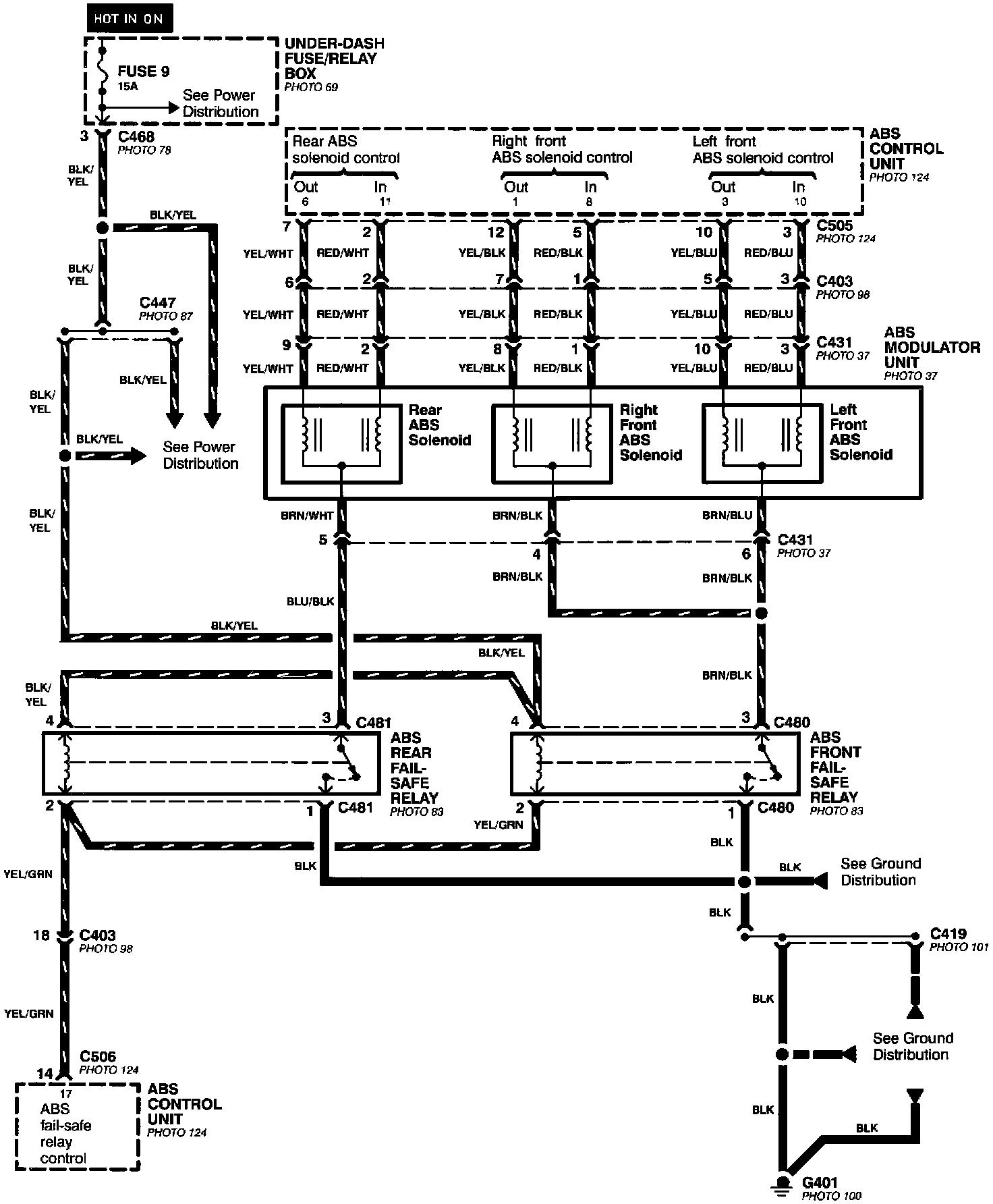

Anti-lock Brake System (ABS) - Fail-safe Relays And Modulator Unit:
