Electrical Diagrams

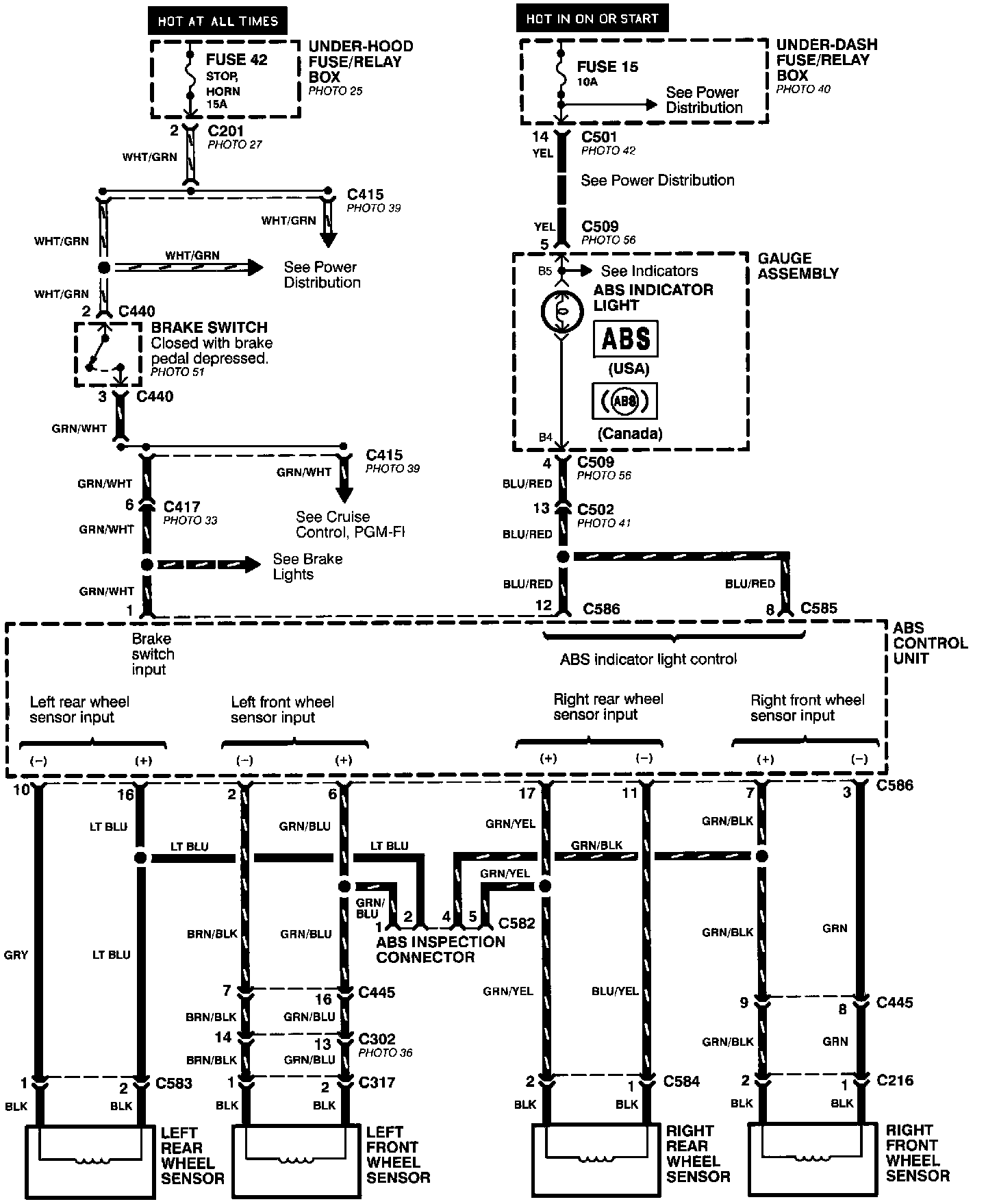

Anti-lock Brake System (ABS) - Brake Switch, Indicator, And Wheel Speed Sensor Inputs:

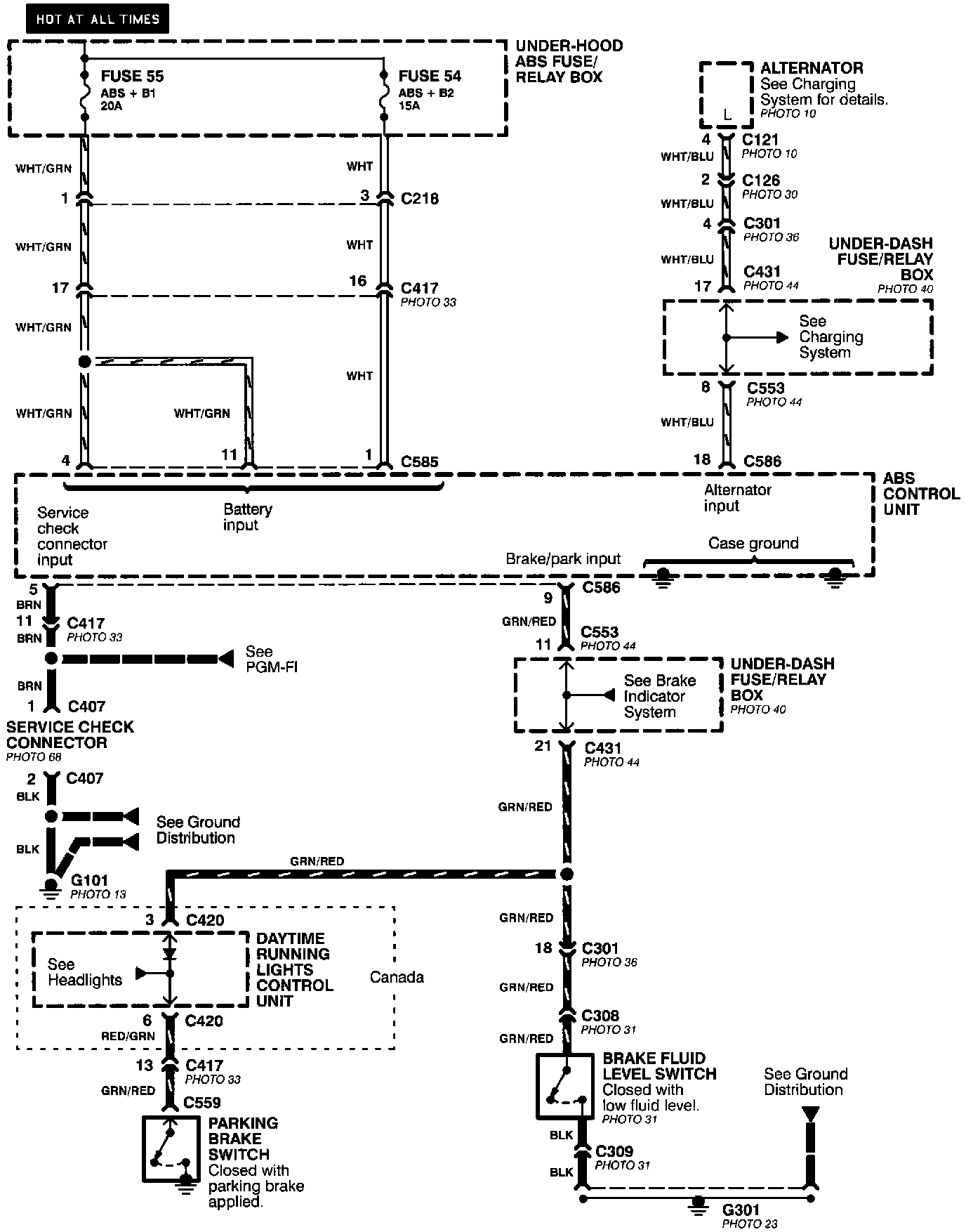

Anti-lock Brake System (ABS) - Power And Parking Brake Inputs:

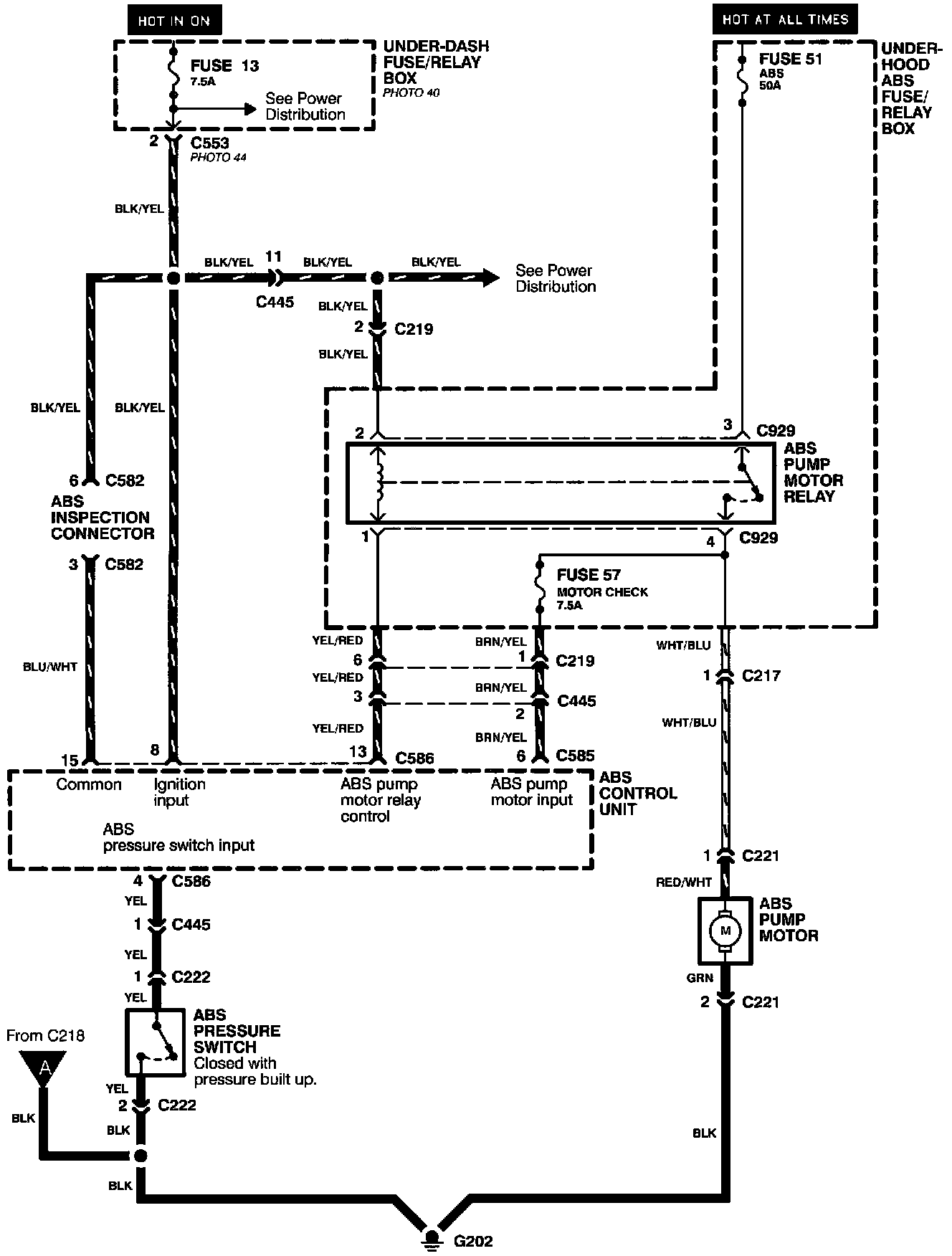

Anti-lock Brake System (ABS) - Motor And Pressure Switch:

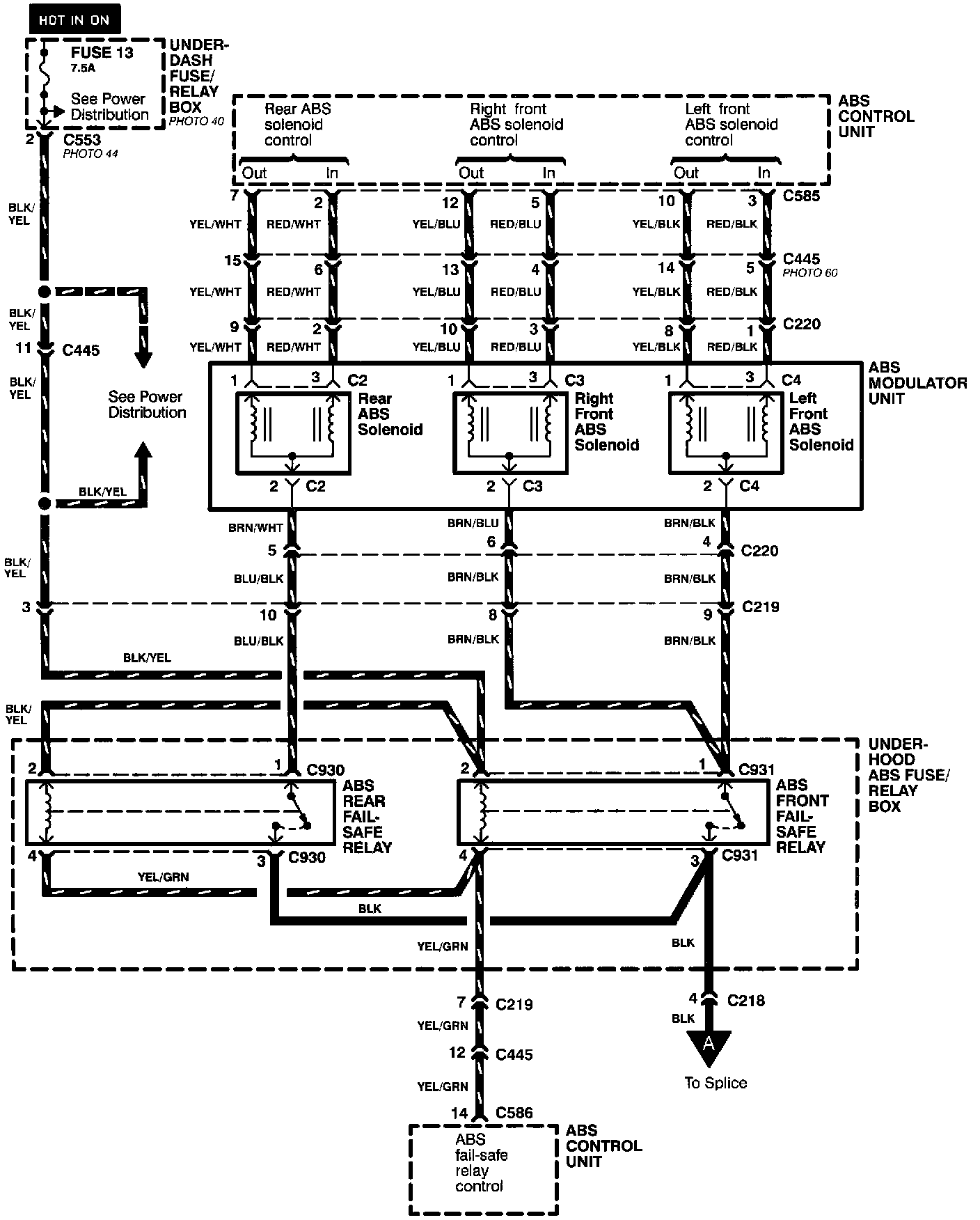

Anti-lock Brake System (ABS) - Fail-Safe Relays And Modulator Unit:
