Home
>>
Honda
>>
1995
>>
Civic Hatchback L4-1.6L SOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Ground Distribution
>>
G771
G771

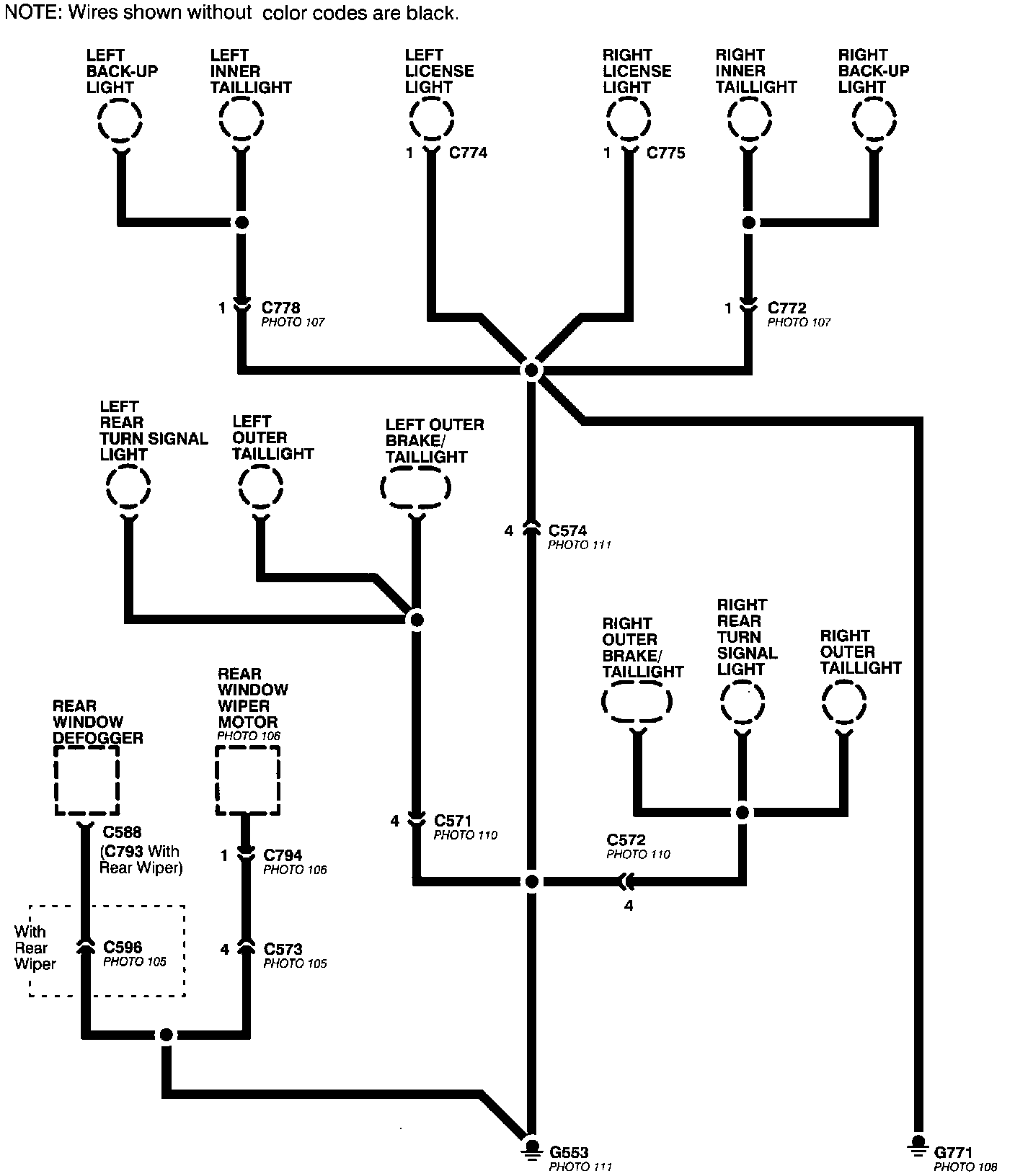

Ground Distribution- G553 (Hatchback), G771:
