Civic Hatchback L4-1.6L SOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Ground Distribution
>>
G501, G551
G501, G551

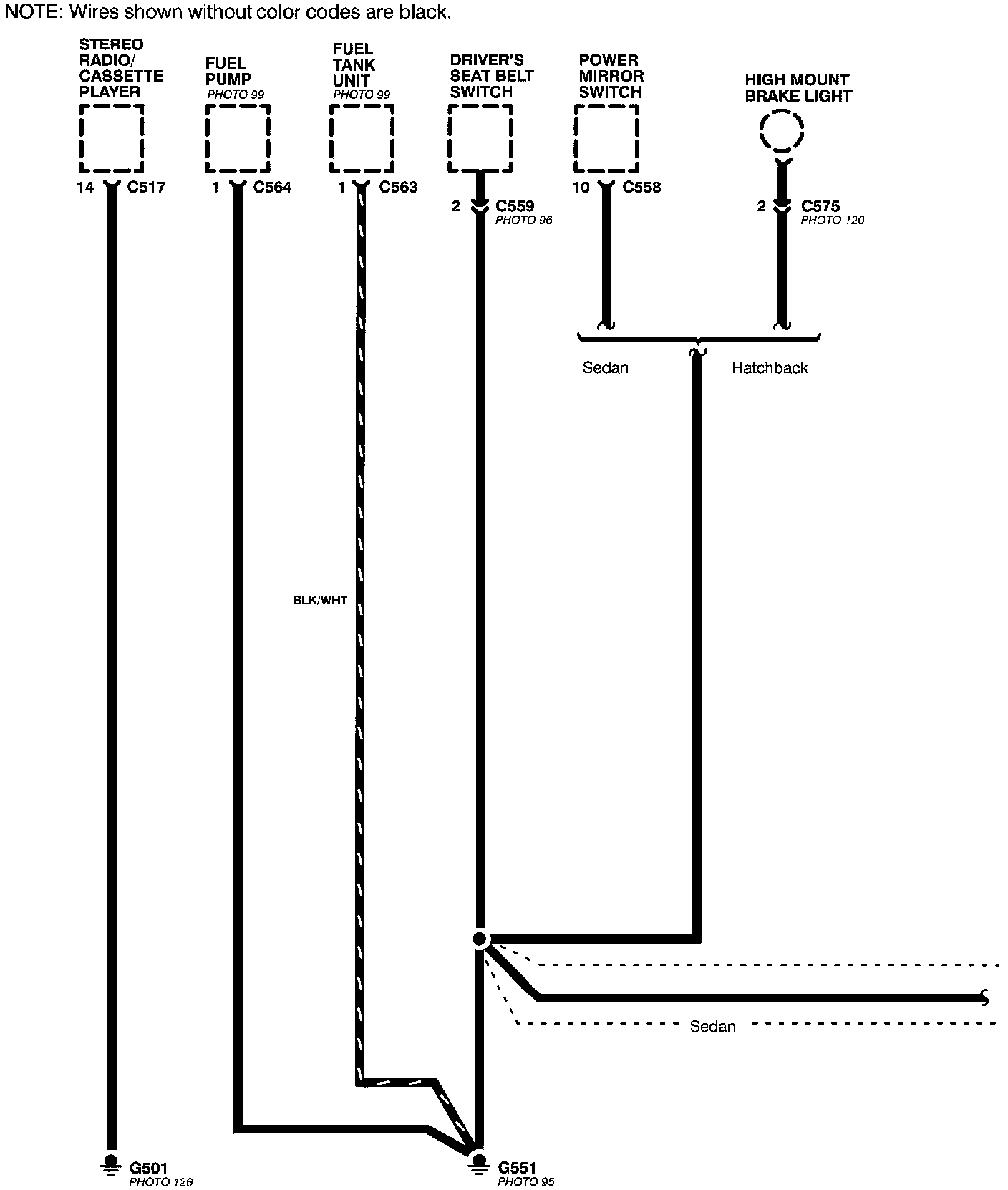

Ground Distribution- G501, G551:
