Home
>>
Honda
>>
1995
>>
Civic Hatchback L4-1.6L SOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>

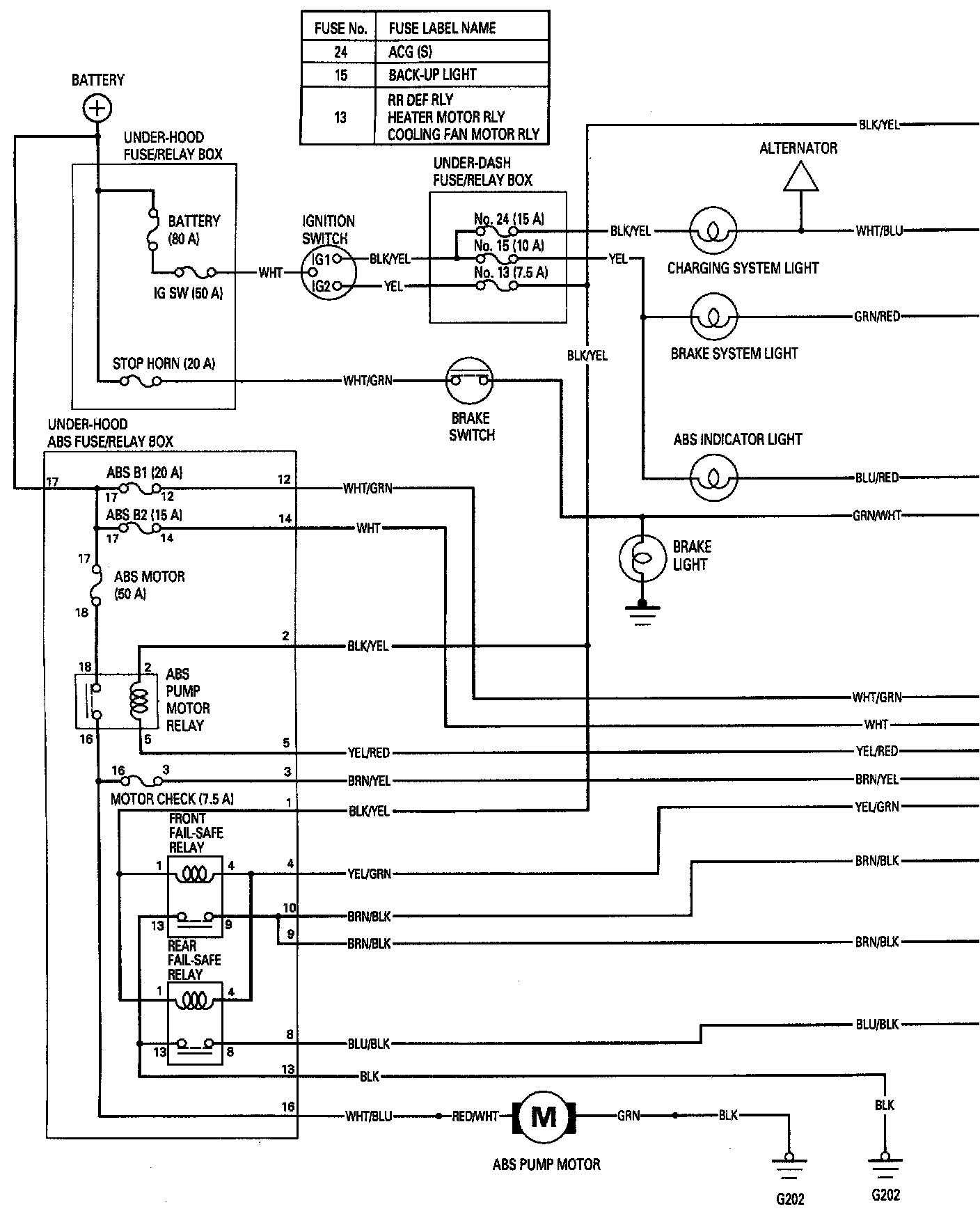

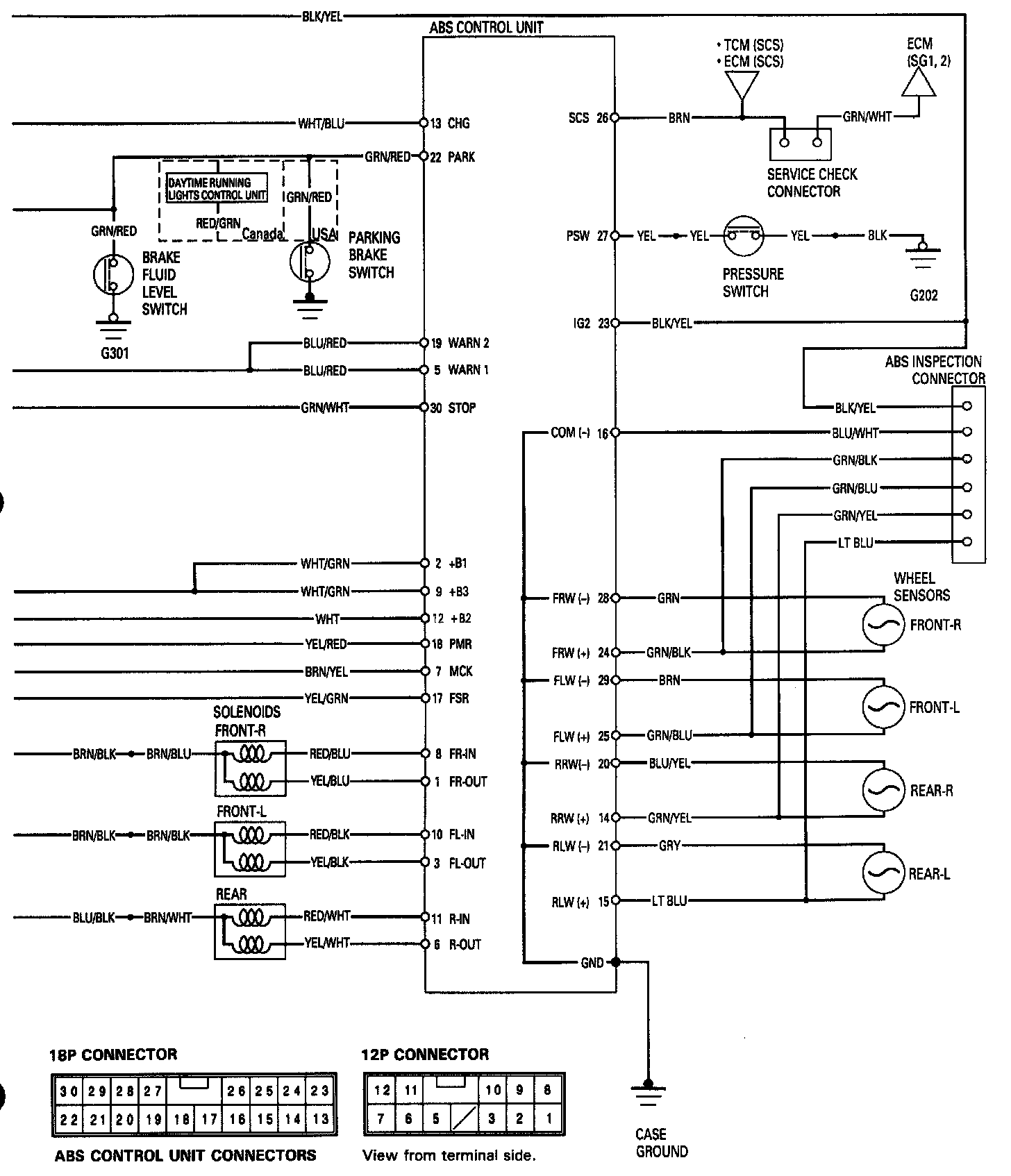

Wiring Schematics
Wiring Schematics
Circuit Diagrams
