Rocker Arm Assembly

ROCKER ARM AND SHAFT TORQUE AND SEQUENCE

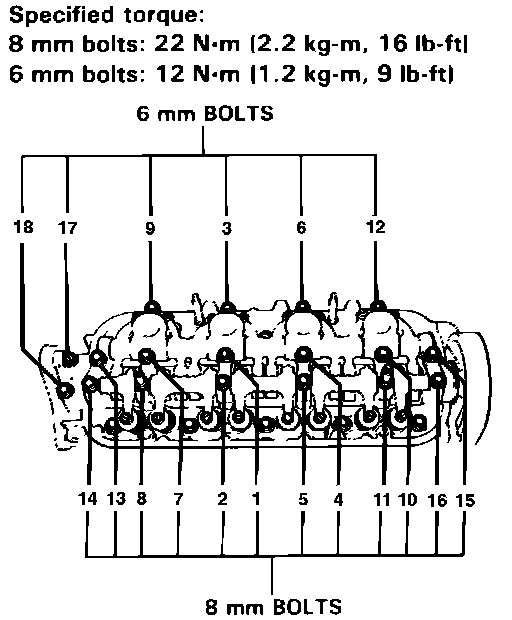

Cam Holder Torque Sequence:

Tighten each bolt two turns at a time in the sequence shown to ensure that the rockers do not bind on the valves.

SPECIFIED TORQUE:
8mm bolts: 22 Nm (2.2 kg-m, 16 lb.ft.)
6mm bolts: 12 Nm (1.2 kg-m, 9 lb.ft.)
