Lighting - Courtesy Light Lens Missing

Bulletin No.
95-050

Issue Date
Dec. 11, 1995

File Under
ELECTRICAL

Applicable To
See VEHICLES
AFFECTED

Model
1994-95
ACCORD

Loose or Missing Courtesy Light Lens

SYMPTOM

Loose or missing courtesy light lens on one or more doors.

PROBABLE CAUSE

Weak retaining force of the lens housing.

VEHICLES AFFECTED

Japan production: 4-door only

US production: All

CORRECTIVE ACTION

Replace the courtesy light with the appropriate one listed under PARTS INFORMATION.

1. Remove the door panel. Refer to section 20 of the appropriate service manual for instructions.

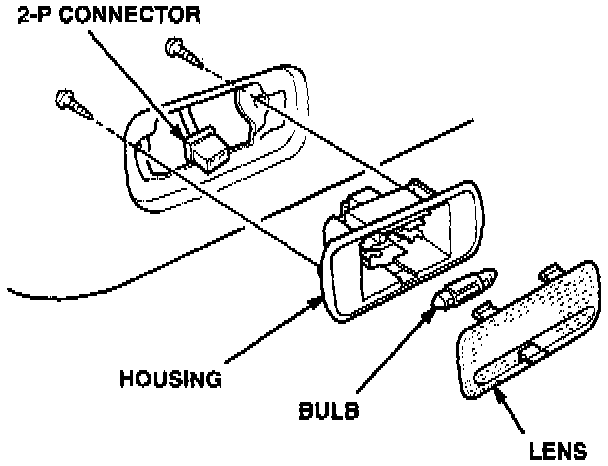

2. Separate the courtesy light housing from its 2-P connector inside the door.

3. If still attached, pull the lens off the housing; then remove the two screws, and pull the housing out of the door panel.

4. Check the operation of the light. It should turn on when the door is opened and turn off when the door is closed.

5. Install the new courtesy light in the reverse order of removal.

PARTS INFORMATION

Courtesy light assembly,
Japan-produced 4-doors:

Ivory: P/N 34255-SM4-961ZE, HC 3369642
Charcoal: P/N 34255-SM4-961ZK, HC 4318879
Green: P/N 34255-SM4-961ZM, HC 4318887
Beige: P/N 34255-SM4-961ZN, HC 4318895

Courtesy light assembly,
All US-produced models:

Ivory: P/N 34255-SV1-A01ZD, HC 4268751
Charcoal: P/N 34255-SV1-A01ZB, HC 4268736
Green: P/N 34255-SV1-A01ZA, HC 4268728
Beige: P/N 34255-SV1-A01ZC, HC 4268744

WARRANTY CLAIM INFORMATION

In warranty:
The normal warranty applies.

Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

OPERATION DESCRIPTION FLAT RATE TIME
NUMBER

715102 Replace one light 0.4 hour
715103 Replace two lights 0.8 hour
715104 Replace three lights 1.2 hours
715105 Replace tour lights 1.6 hours

Failed part: P/N 34255-SV1-A01ZE
H/C 4736633

Defect code: 018

Contention code: A02
