Interior - Center Armrest Appears Worn

Bulletin No.
96-002

Model
1994-95
ACCORD

Applicable To
ALL LX and EX
MODELS

File Under
BODY

Center Armrest Material Matted
(Supersedes 96-002, dated March 11, 1996)

PROBLEM

The fabric on the center armrest is matted and appears worn.

CORRECTIVE ACTION

Replace the center armrest with the new part listed under PARTS INFORMATION.

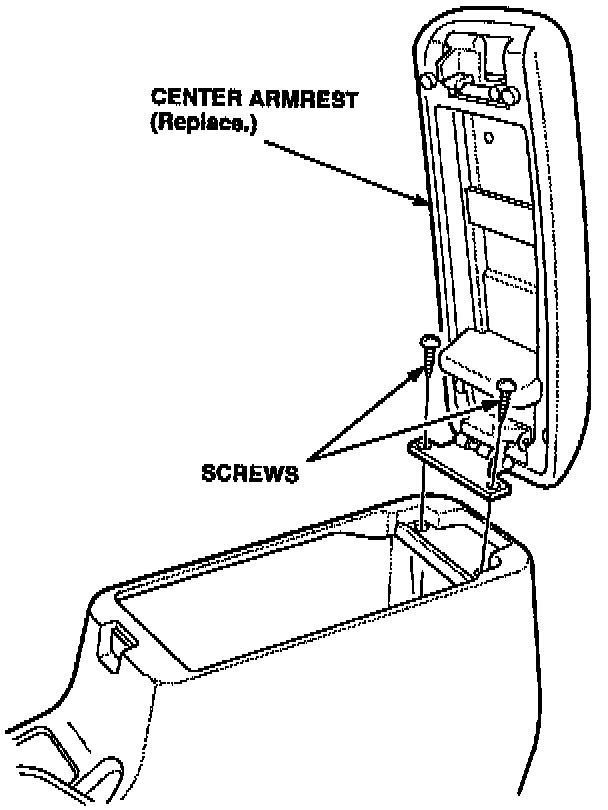

1. Remove the center armrest.

2. Install the new center armrest. Make sure it latches properly.

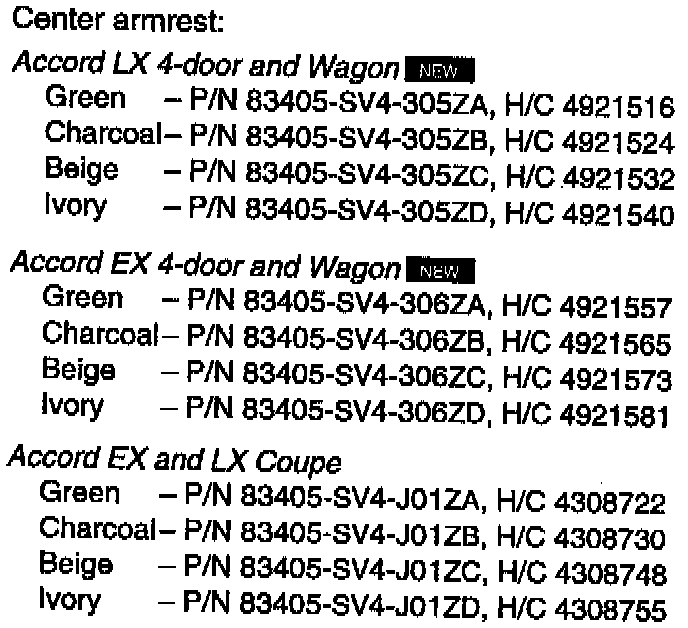

PARTS INFORMATION

NOTE:
The replacement center armrests for the Coupe will not exactly match the originals in color and fabric texture, but they will coordinate with the rest of the interior.

WARRANTY CLAIM INFORMATION

In warranty: The normal warranty applies.

Out of warranty: Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

Operation number: 853108
Flat rate time: 0.2 hour
Failed part: P/N 83405-SV4-A01ZA
H/C 4325437
Defect code: 009
Contention code: A01
