Interior - Armrest Fabric Worn

Bulletin No.
96-001

Issue Date
March 11, 1996

File Under
Body

Applicable To
4-DOOR SEDAN AND WAGON

Model
1994-95 ACCORD

Worn Fabric on Door Armrest

PROBLEM

Worn fabric on the left or right front door armrest.

WARRANTY CLAIM INFORMATION

In warranty:
The normal warranty applies.

Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

OPERATION
NUMBER DESCRIPTION FLAT RATE TIME

843107 Replace left front 0.6 hour
lower door panel.

844107 Replace right front 0.6 hour
lower door panel.

Failed part: P/N 83551-SV4-A10ZA
H/C 4325619

Defect code: 009

Contention code: A01

REQUIRED MATERIALS

Wool Felt: P/N 06993-SA5-000, H/C 2086676

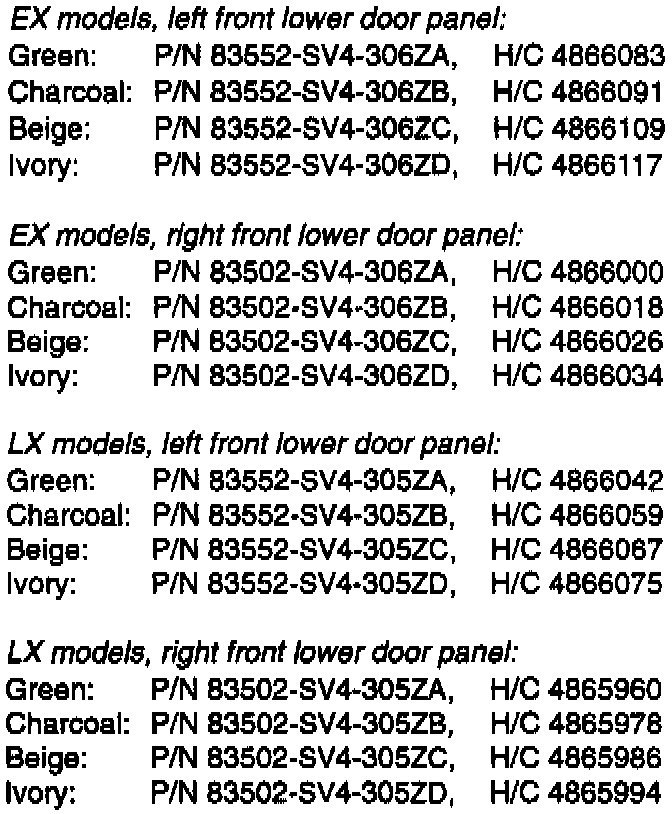

PARTS INFORMATION





When ordering, be sure to choose the correct vehicle model, door position, and lower door panel color.

CORRECTIVE ACTION

Replace the lower door panel with the new panel listed under PARTS INFORMATION.

1. Remove the door panel. (Refer to section 20 of the appropriate Accord Service Manual.)

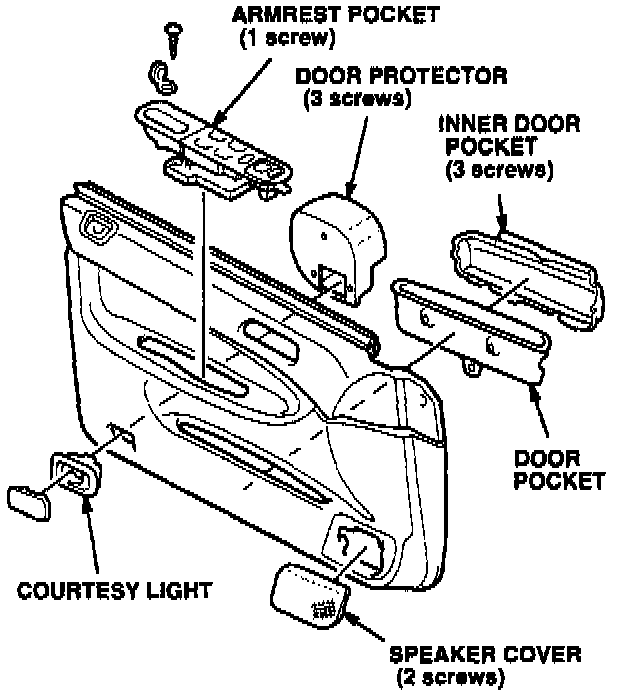

2. Lay the door panel on a protective cloth, then remove these parts:

^ Speaker cover

^ Door pocket and inner door pocket

^ Armrest pocket with power window master switch

^ Door protector

^ Courtesy light

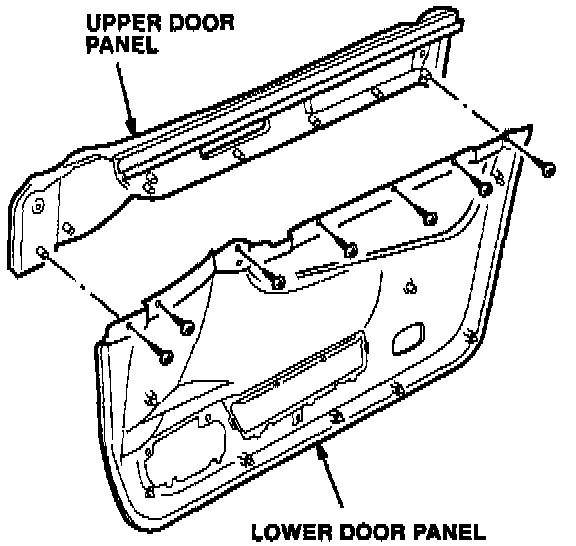

3. Remove the seven screws holding the upper and lower door panels together.

4. Separate the upper door panel from the lower door panel, and discard the lower one.

5. Install the parts you removed in step 2 onto the new lower door panel.

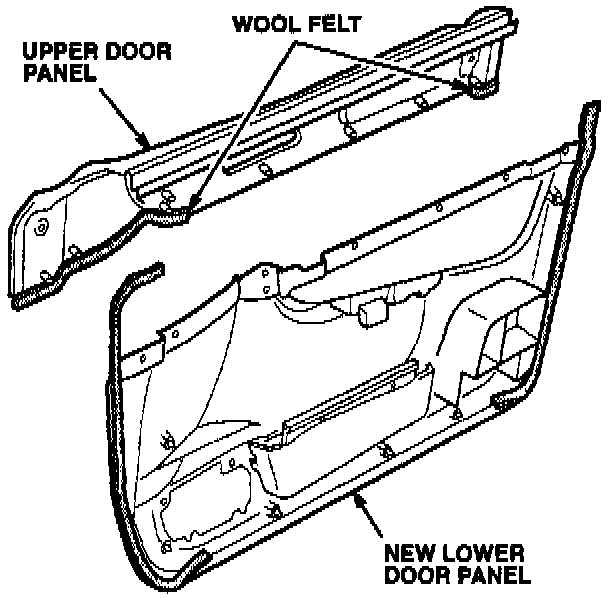

6. Look for a strip of wool felt along the bottom edge of the upper door panel. If the felt is not there, install a 7-mm-wide strip along the edge.

7. Join the new lower panel to the upper panel using the seven screws you removed in step 3.

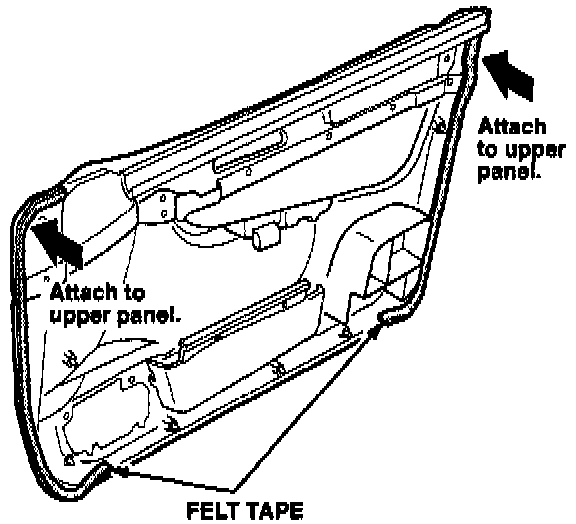

8. Remove the paper backing from the felt tape on the lower panel, then attach the tape to the upper panel.

9. Reinstall the door panel. (Refer to section 20 of the appropriate Accord Service Manual.)

10. Check the operation of the power windows, the power mirrors, the door locks, and the courtesy light.
