Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Honda
>>
1995
>>
Accord Sedan L4-2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
Windows

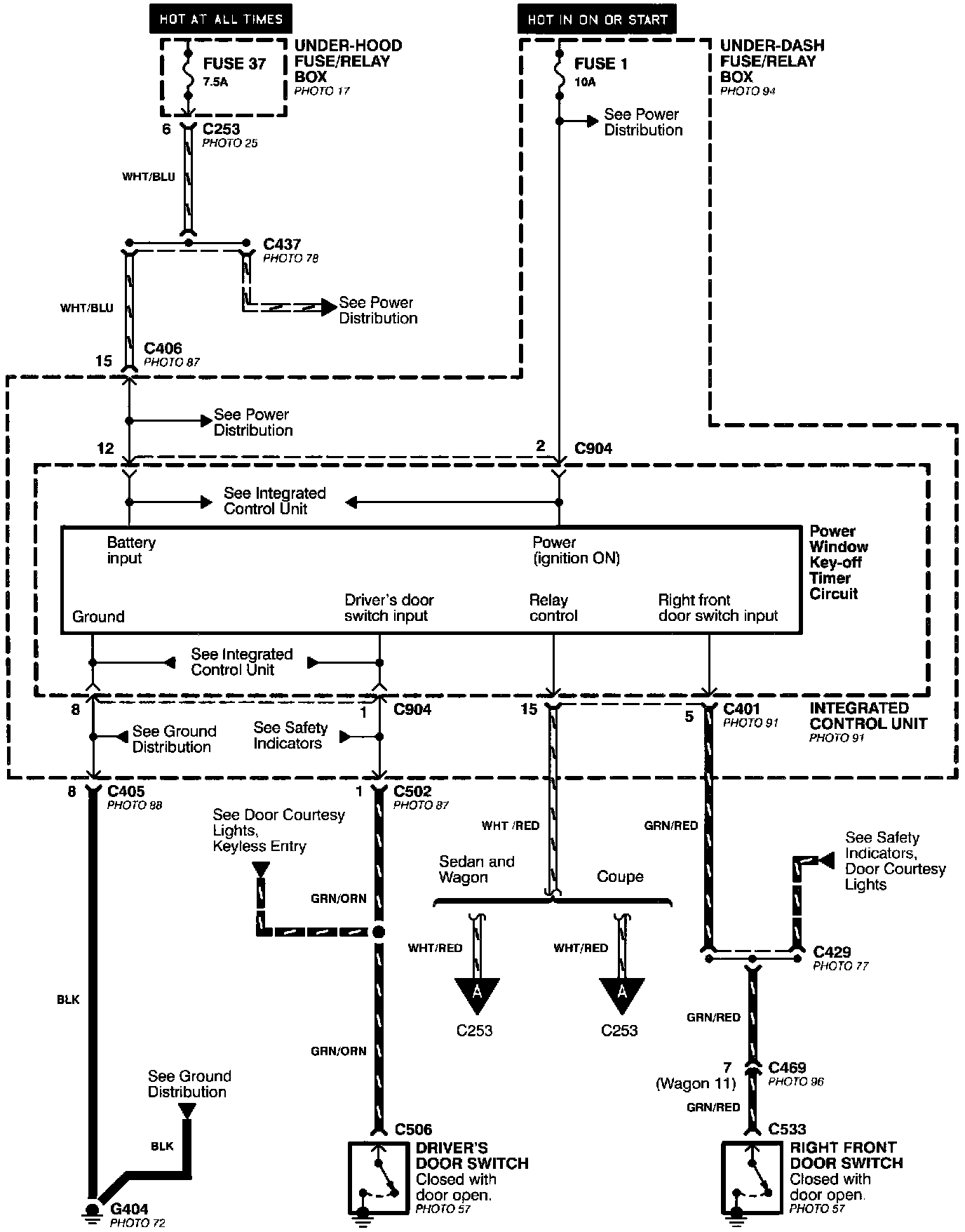

Power Windows - Key-off Timer Circuit:
Power Windows - Driver's Door:

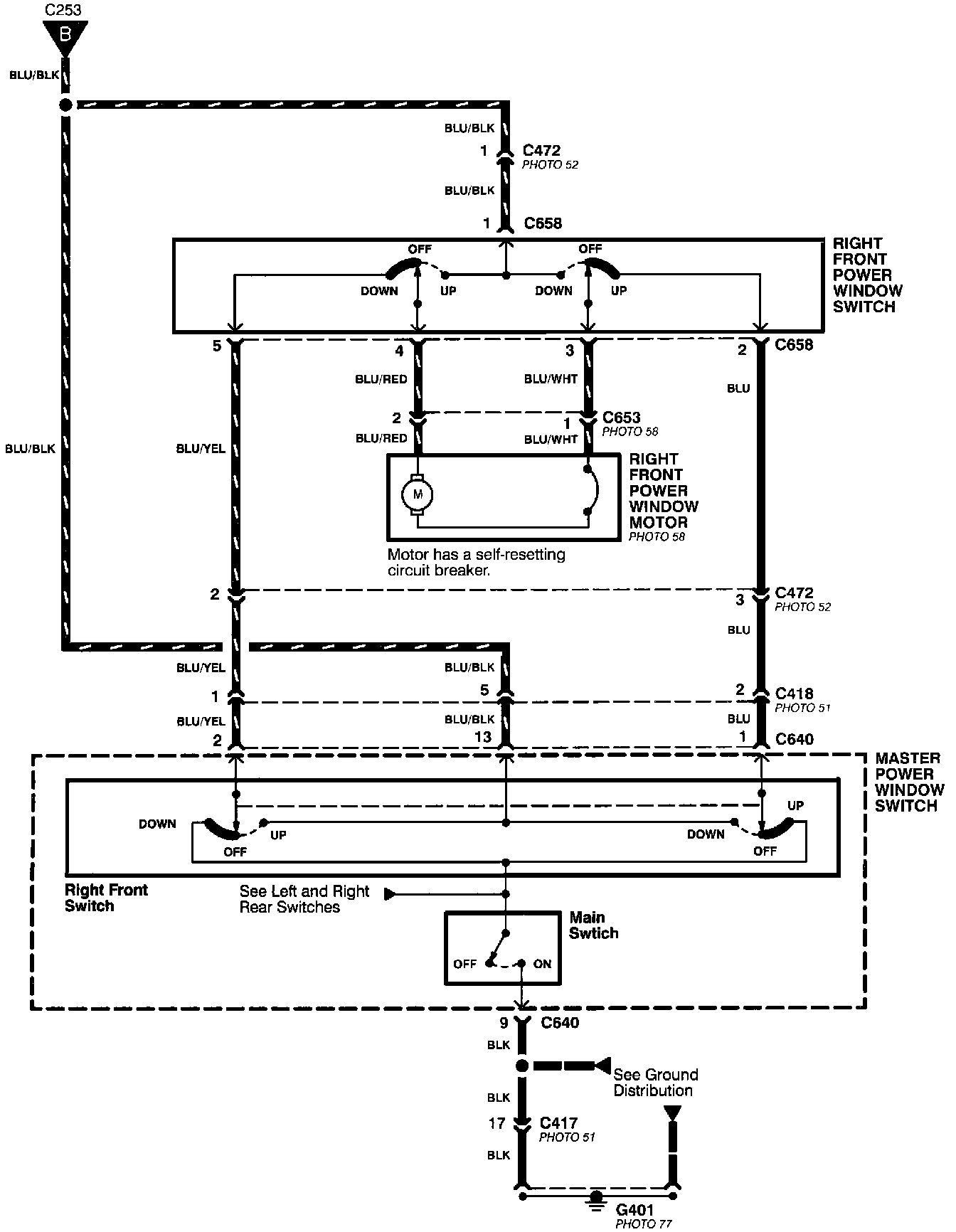

Power Windows - Right Front Door:
Power Windows - Left Rear Door:
Power Windows - Right Rear Door:
