Home
>>
Honda
>>
1995
>>
Accord Coupe L4-2.2L SOHC VTEC
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

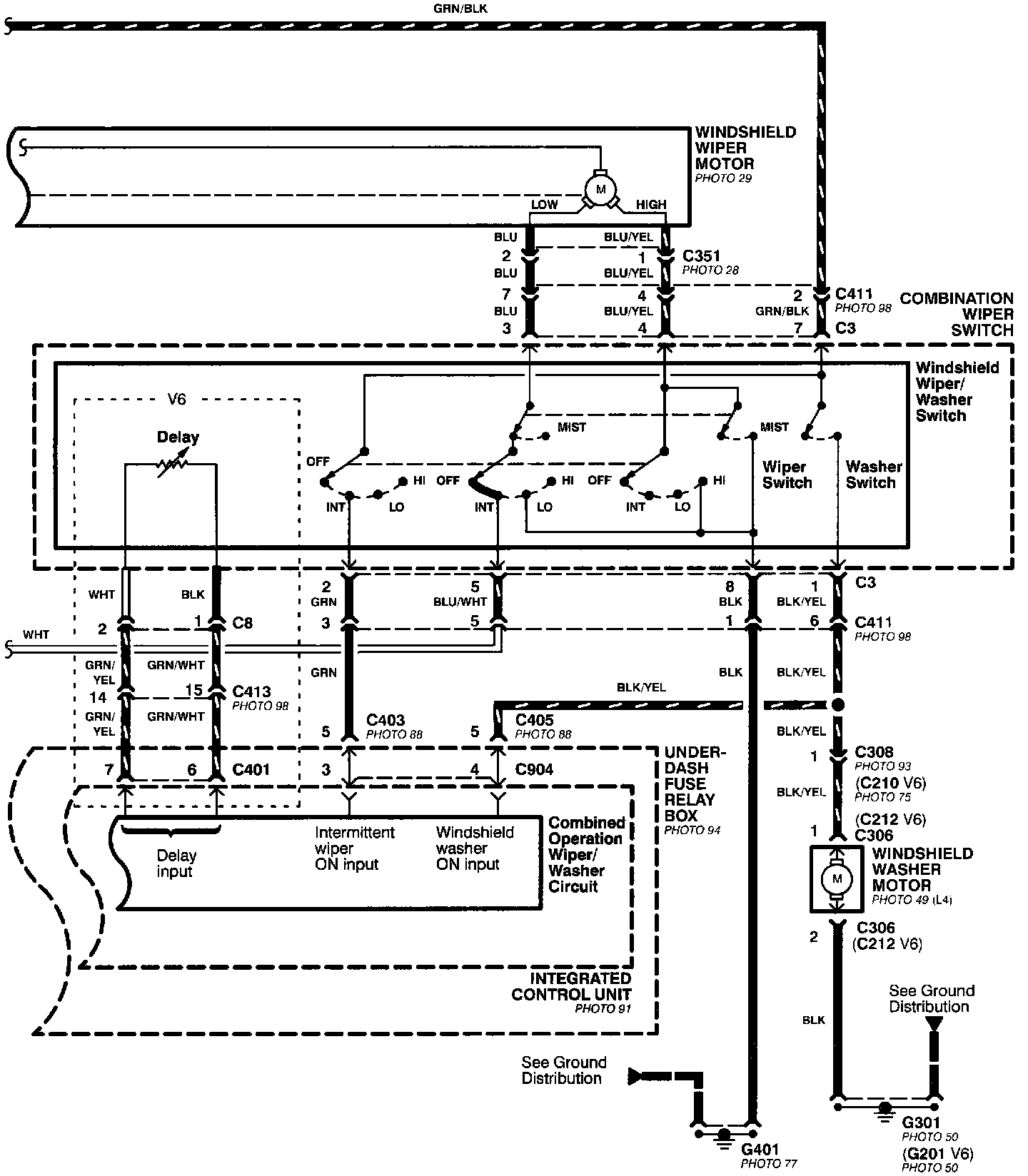

Wiper/Washer (part 1 Of 2):

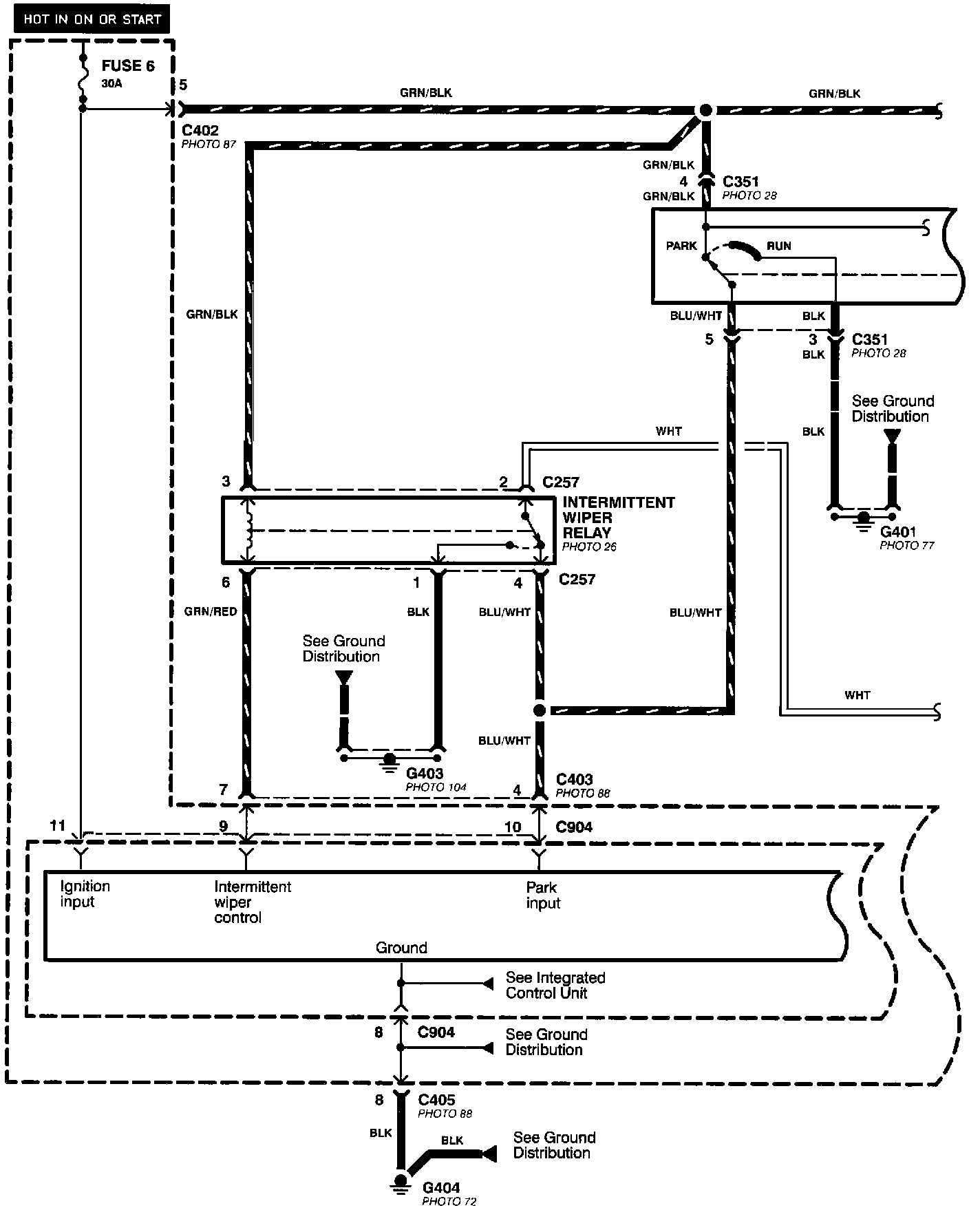

Wiper/Washer (part 2 Of 2):

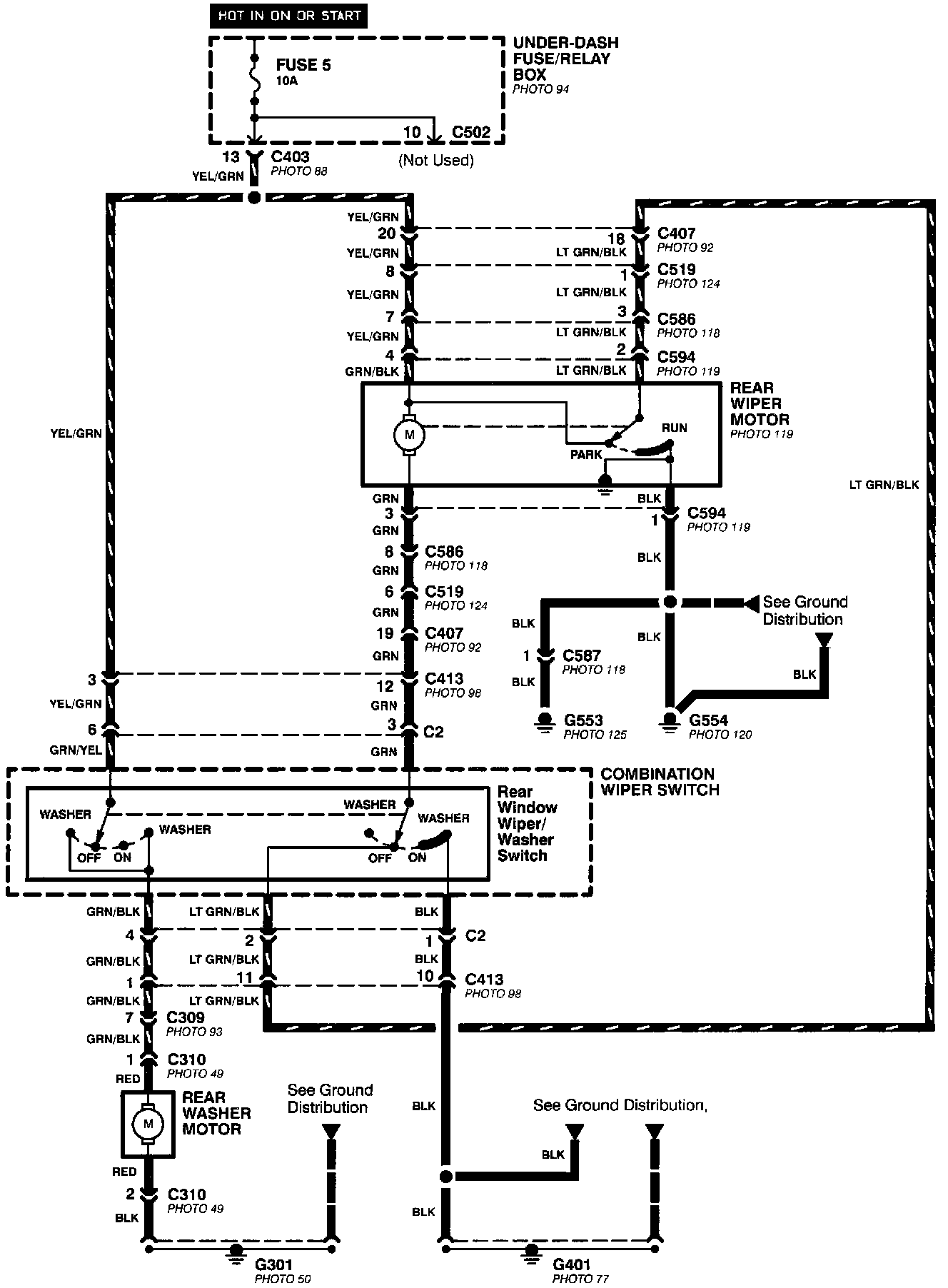

Rear Wiper/Washer:
