Windows - Front Window Comes Out of the Channel

Bulletin No.
95-040

Issue Date
OCT 16, 1995

Model
1994-95
ACCORD
COUPE

Applicable To
ALL

File Under
BODY

Front Window Comes Out of the Channel

SYMPTOM

The front door glass comes out of the run channel.

PROBABLE CAUSE

Misadjustment of the front channel.

WARRANTY CLAIM INFORMATION

In warranty: The normal warranty applies. Out of warranty: Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

SIDE OPERATION NUMBER TEMPLATE ID
LEFT 826001 95-040A
RIGHT 827001 95-040B

Flat rate time: 0.5 hour per window
Failed part: P/N 76255-SV2-A25
H/C 4916383

Defect code: 021

Contention code: A01

CORRECTIVE ACTION

Adjust the front channel. Replace the run channel and mirror gasket if they have been damaged by the glass.

1. Remove the door trim panel as described in steps 1 thru 9 on page 20-4 of the Service Manual Supplement.

2. Inspect the door mirror gasket for tears or cuts. Replace the gasket if it is damaged (see PARTS INFORMATION).

3. Inspect the run channel for tears or cuts caused by the glass coming out. Replace the run channel if it is damaged.

NOTE:
You do not have to loosen any of the window regulator mounting bolts or perform any glass adjustments when replacing the run channel.

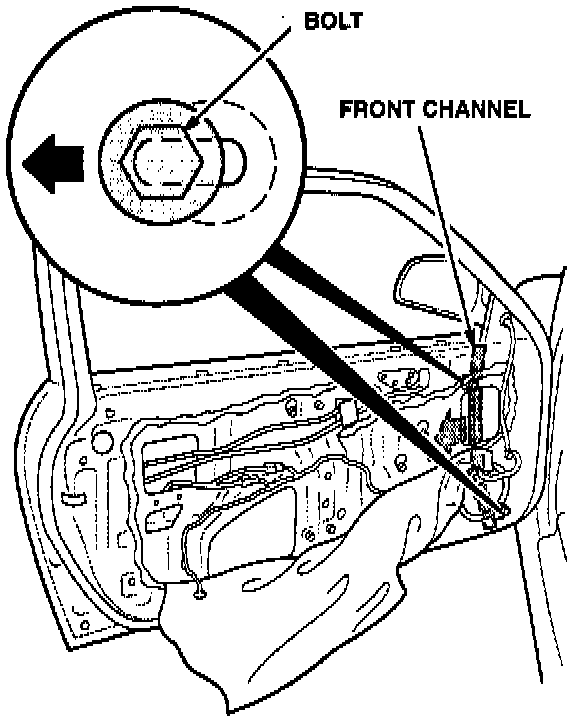

4. Raise the window fully. Loosen the two front channel mounting bolts. Move (without forcing) the channel rearward to increase its overlap with the glass. Tighten the mounting bolts to 8 N-m (0.8 kg-m, 6 lb-ft).

5. Raise and lower the window several times to check for binding or slow operation. If necessary, readjust the front channel.

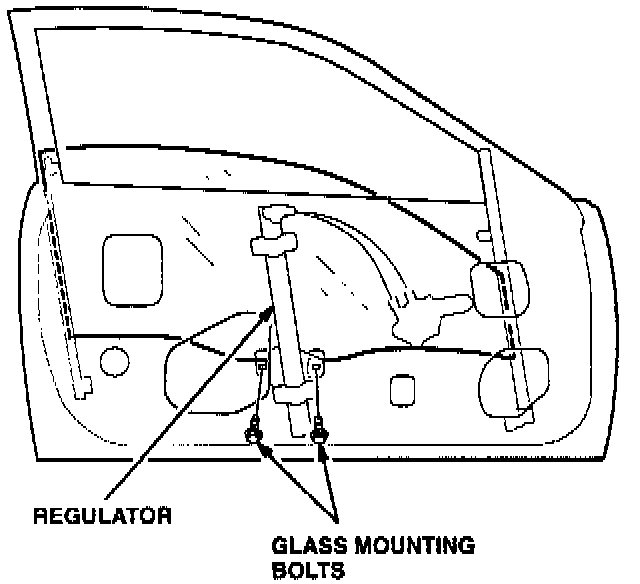

6. Lower the window. Replace the two glass mounting bolts with the new bolts listed under PARTS INFORMATION. Apply DC-111 grease to the 0-rings on the mounting bolts before installing them.

7. Reinstall the door trim panel.

PARTS INFORMATION

Door mirror gasket, LX and EX:
Right - P/N 76205-SV2-A25, H/C 4916375
Left - P/N 76255-SV2-A25, H/C 4916383

Door mirror gasket, DX:
Right - P/N 76205-SV2-A11, H/C 4916391
Left - P/N 76255-SV2-A11, H/C 4916409

Window glass mounting bolt (two required):
P/N 90112-SV2-000, H/C 4919973
