Torque Converter Clutch Solenoid: Service and Repair

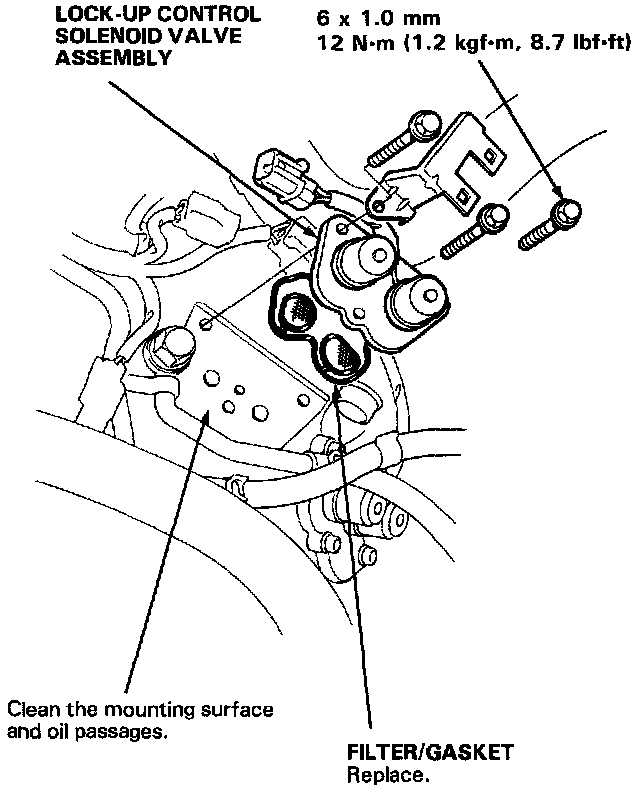

1. Remove the Mounting Bolts and Lock-up Control Solenoid Valve assembly.

NOTE: Be sure to remove or replace the Lock-up Control Solenoid Valves A and B as an assembly.





2. Check the Lock-up Control Solenoid Valve oil passages for dust or dirt, and replace as an assembly, if necessary.
3. Clean the mounting surface and oil passages of the Lock-up Control Solenoid Valve assembly, and install a new filter/gasket.
4. Check the connector for rust, dirt or oil, and reconnect it securely.
