Cable Reel

REMOVAL
1. Disconnect the battery negative cable, then disconnect the positive cable.
2. Make sure the wheels are aligned straight ahead.

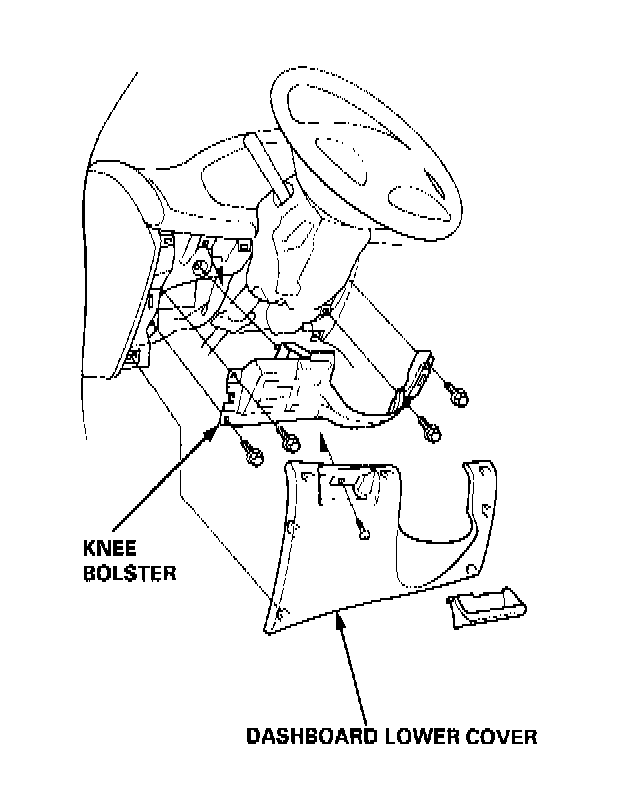

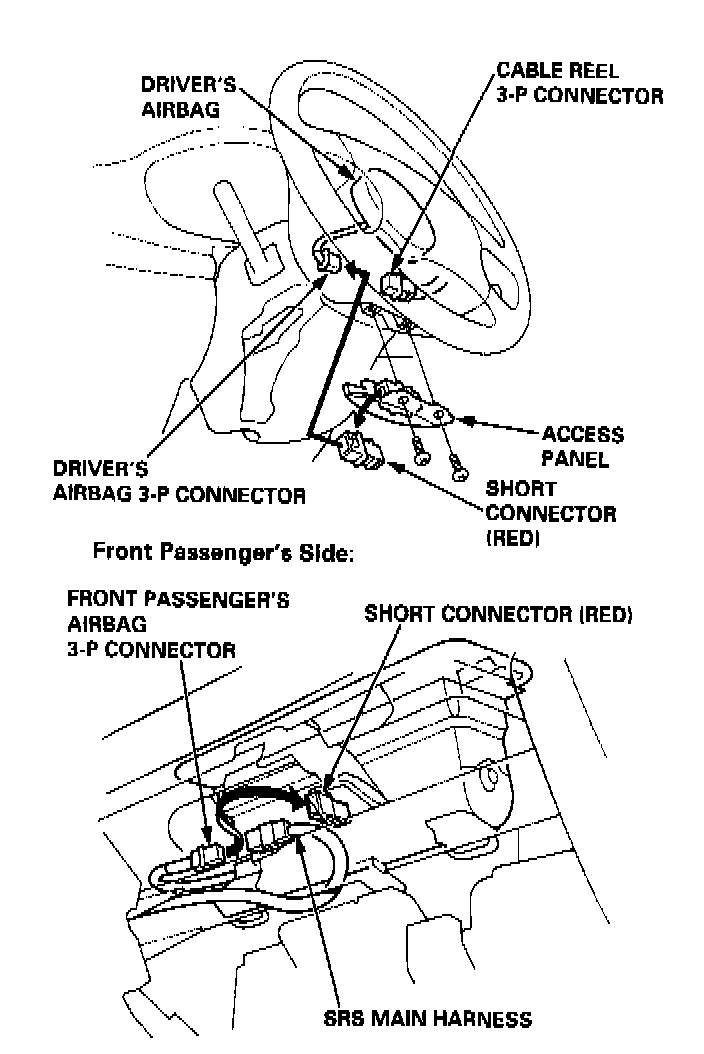

3. Remove the dashboard lower cover and knee bolster.
4. Remove the glove box damper (see section 20), then remove the glove box.





5. Connect the short connectors to the airbags.

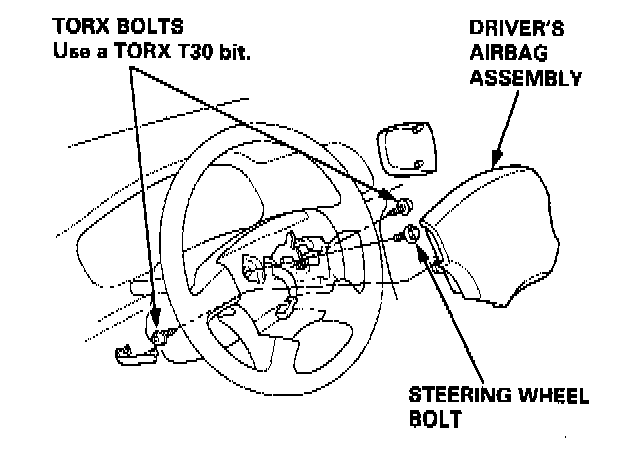

6. Remove the driver's airbag assembly from the steering wheel (two T30 Torx bolts), then remove the steering wheel bolt.

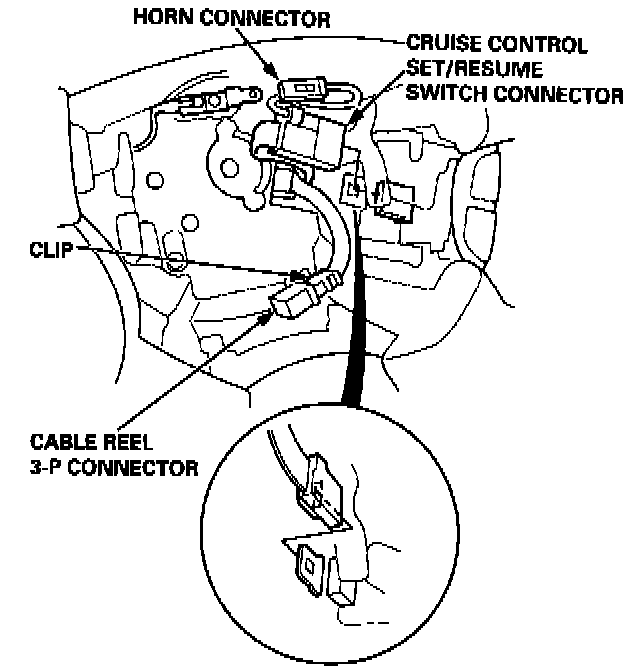

7. Disconnect the connectors from the horn and cruise control set/resume switches, then remove the cable reel 3-P connector from its clip.

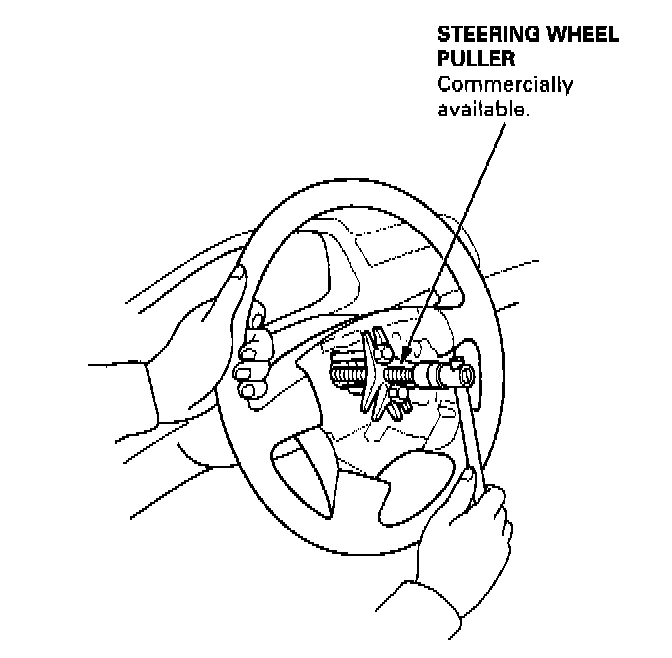

8. Remove the steering wheel using a commercially available steering wheel puller

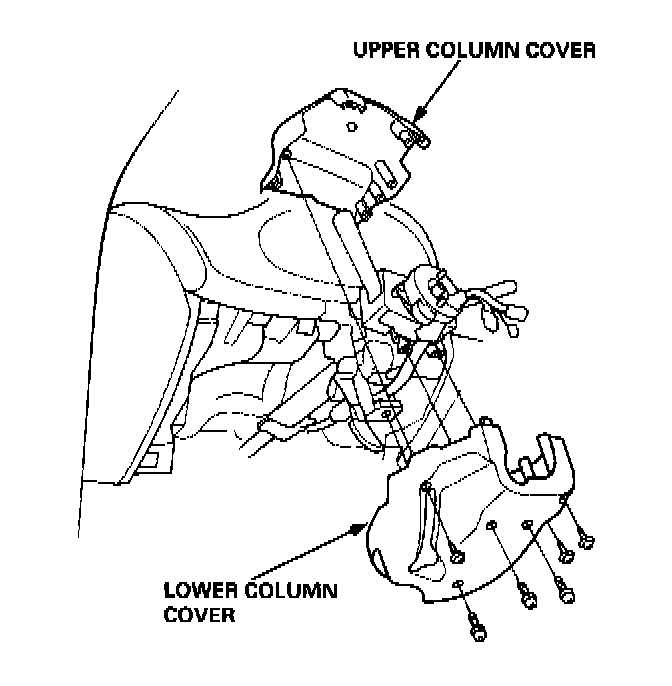

9. Remove the upper and lower column covers.

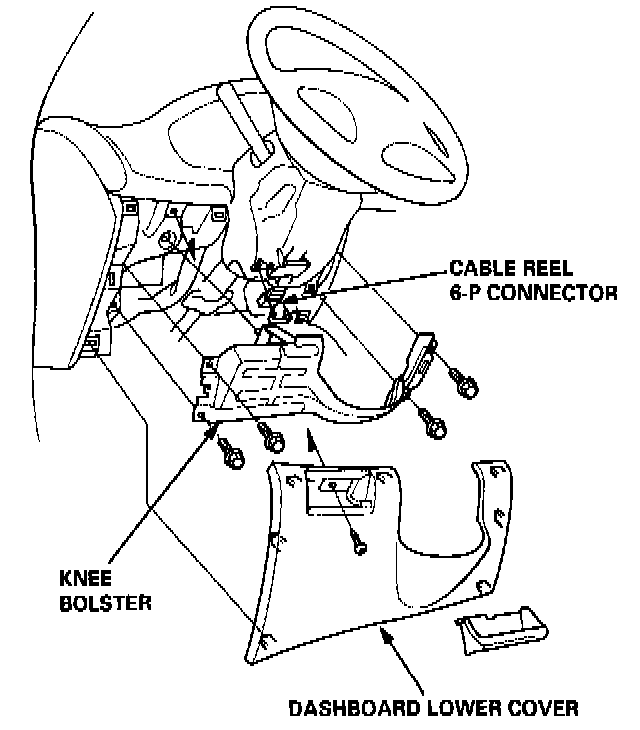

10. Disconnect the 6-P connector between the cable reel and SRS main harness, then remove the connector holder from the steering column.

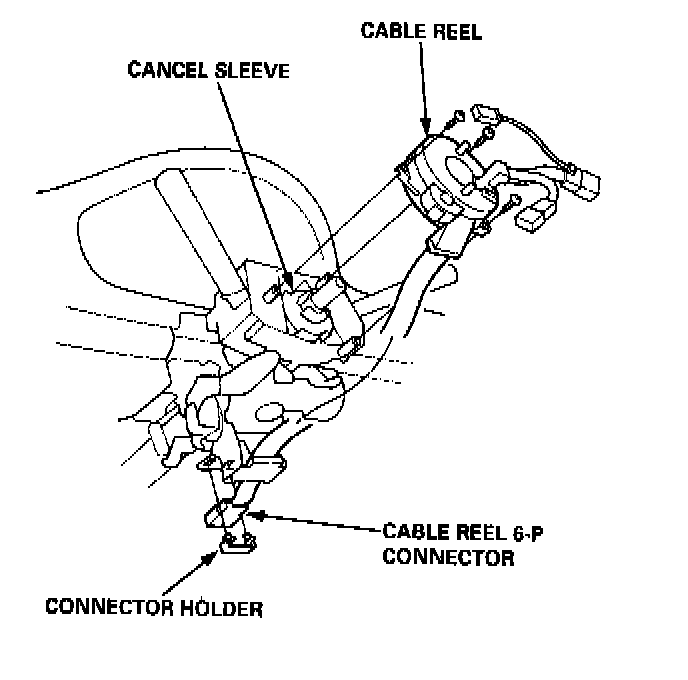

11. Remove the cable reel from the column.

INSTALLATION

CAUTION:
- Before installing the steering wheel, the front wheels should be aligned straight ahead.
- Be sure to install the harness wires so that they are not pinched or interfering with other car parts.
- After reassembly, confirm that the wheels are still turned straight ahead and that the steering wheel spoke angle is correct (road test). If minor spoke angle adjustment is necessary, do so only by adjustment of the tie-rods, not by removing and repositioning the steering wheel.

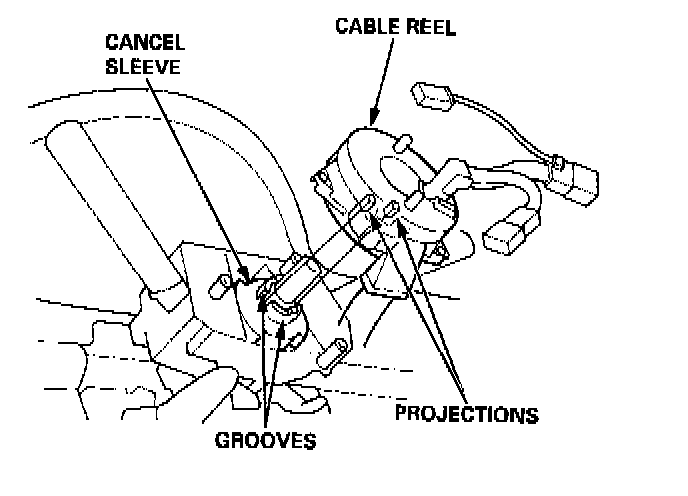

12. Align the cancel sleeve grooves with the cable reel projections.





13. Carefully install the cable reel on the steering column shaft. Then attach the connector holder to the steering column
14. Install the steering column upper and lower covers.

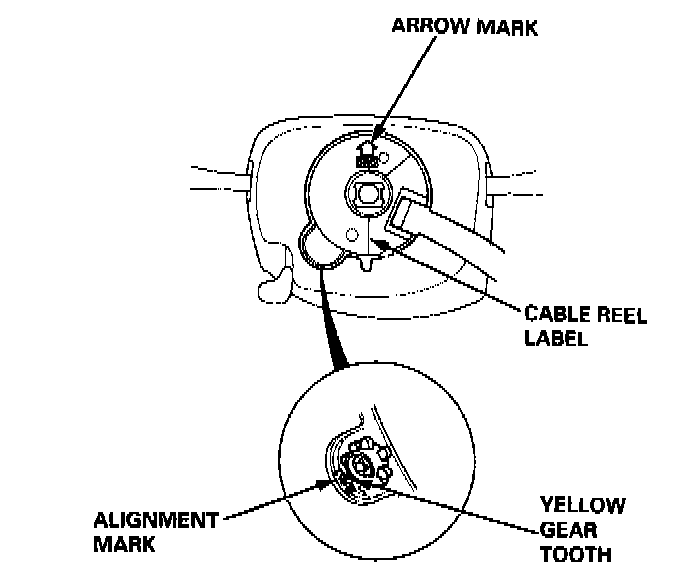

15. Center the cable reel. Do this by first rotating the cable reel clockwise until it stops. Then rotate it counterclockwise (approximately two turns) until:
- The yellow gear tooth lines up with the alignment mark on the cover.
- The arrow mark on the cable reel label points straight up.

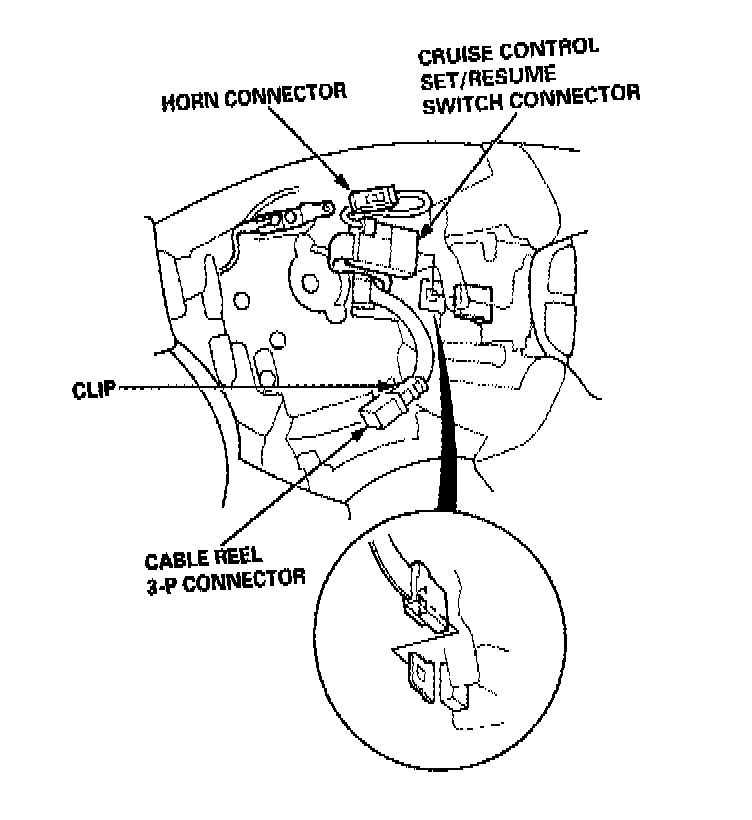

16. Install the steering wheel, and attach the cable reel 3-P connector to the clip.





17. Connect the horn connector and cruise control set/resume switch connector.





18. Install the steering wheel bolt.

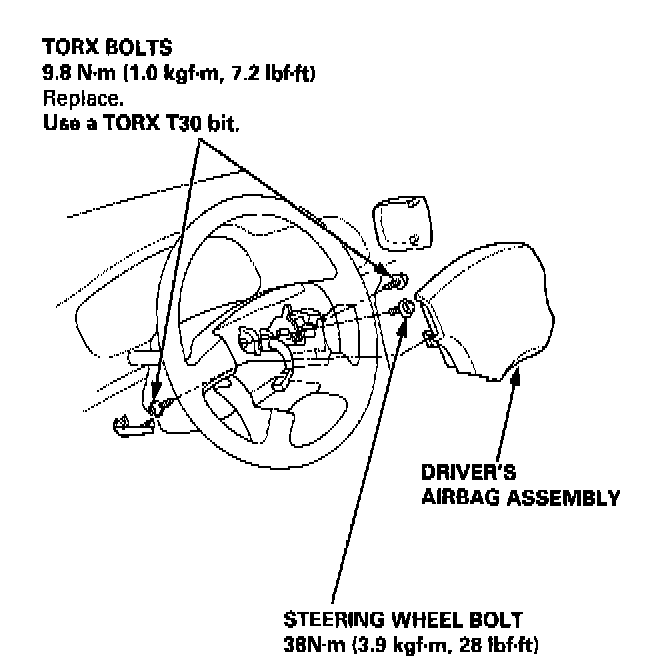

19. Install the driver's airbag assembly.





20. Connect the cable reel 6-P connector to the SRS main harness, then install the knee bolster and dashboard lower cover.
21. Remove and properly store the short connectors (RED), then reconnect the airbag connectors (and reinstall the glove box).
22. Reconnect the battery positive cable, then the negative cable.
23. After installing the cable reel, confirm proper system operation:
- Turn the ignition ON (II); the instrument panel SRS indicator light should come on for about six seconds and then go off.
- Make sure both horn buttons work.
- Make sure the headlight and wiper switches work.
- Go for a test drive, and make sure the cruise control switches work.





- Rotate the steering wheel counterclockwise to make sure the yellow gear tooth lines up with the slot on the cover.

24. Enter the code number to restore radio operation.
