Fuel Pump: Service and Repair

WARNING: Do not smoke while working on fuel system. Keep open flames away from your work area.

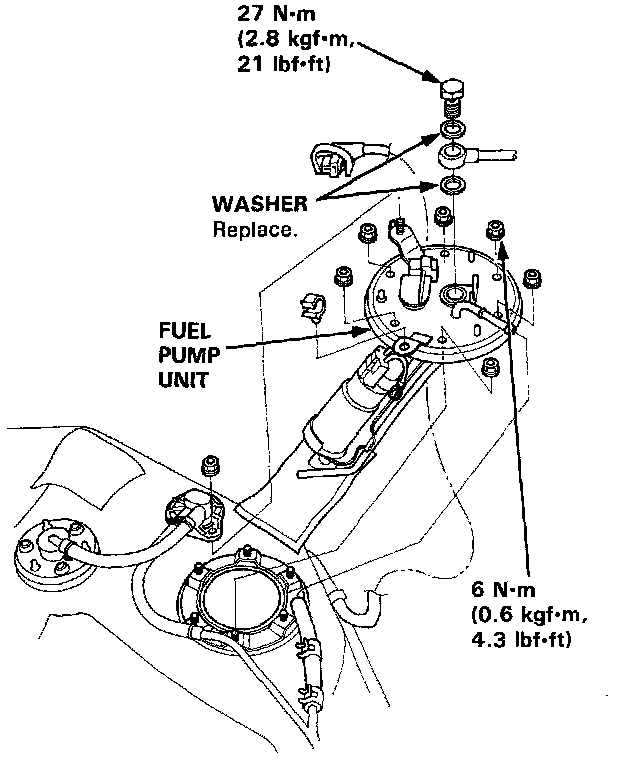

1. Remove the Fuel Tank.
2. Disconnect the 2 P Connector from the Fuel pump.
3. Remove the Fuel Pump Mounting Nuts.
4. Remove the Fuel Pump from the Fuel Tank.






5. Install a new Washer on the Banjo Bolt, then install parts in the reverse order of removal.
