Trunk Lamp
Trunk Lamp

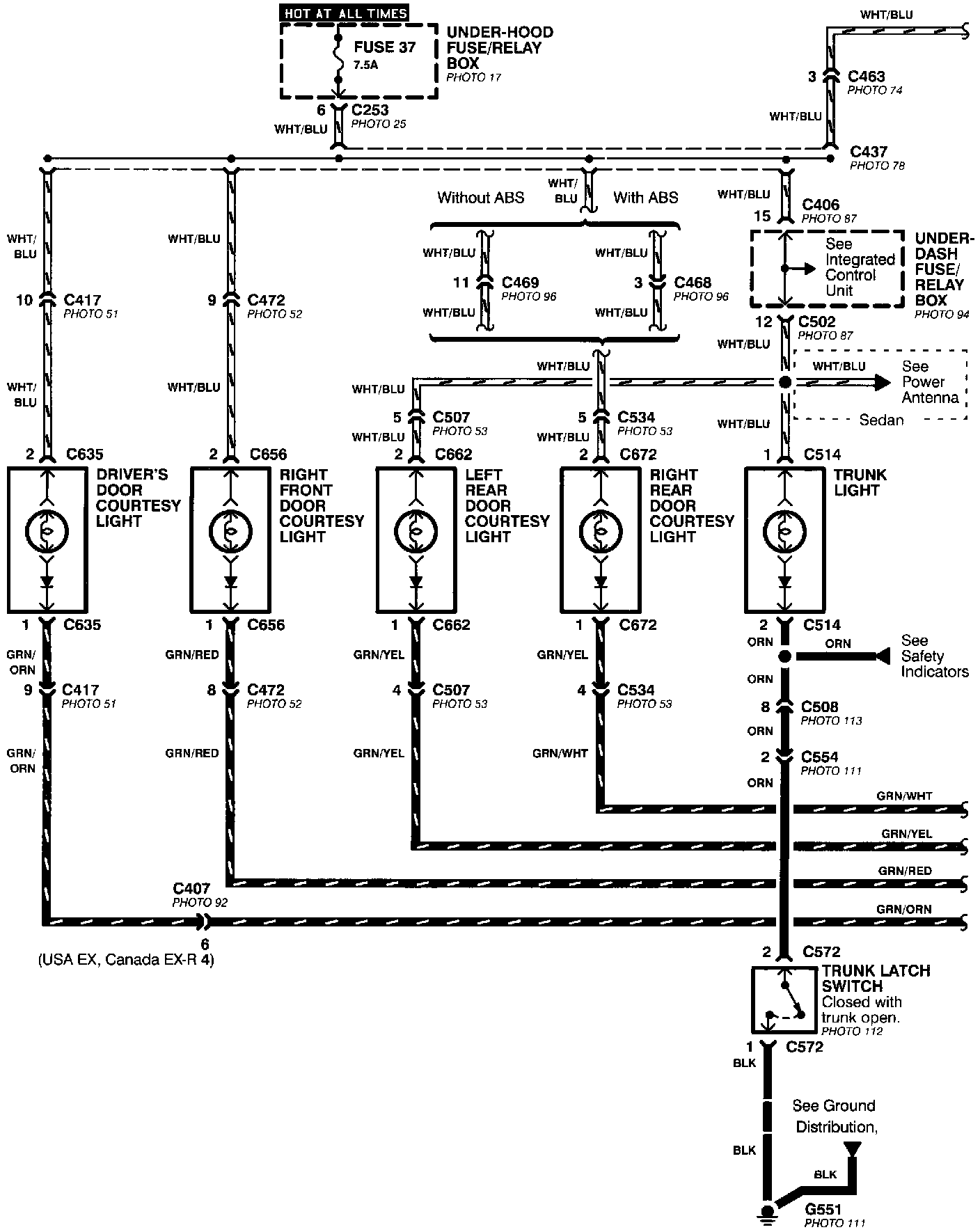

Ceiling, Door Courtesy, Spot And Trunk Lights (part 1 Of 2):

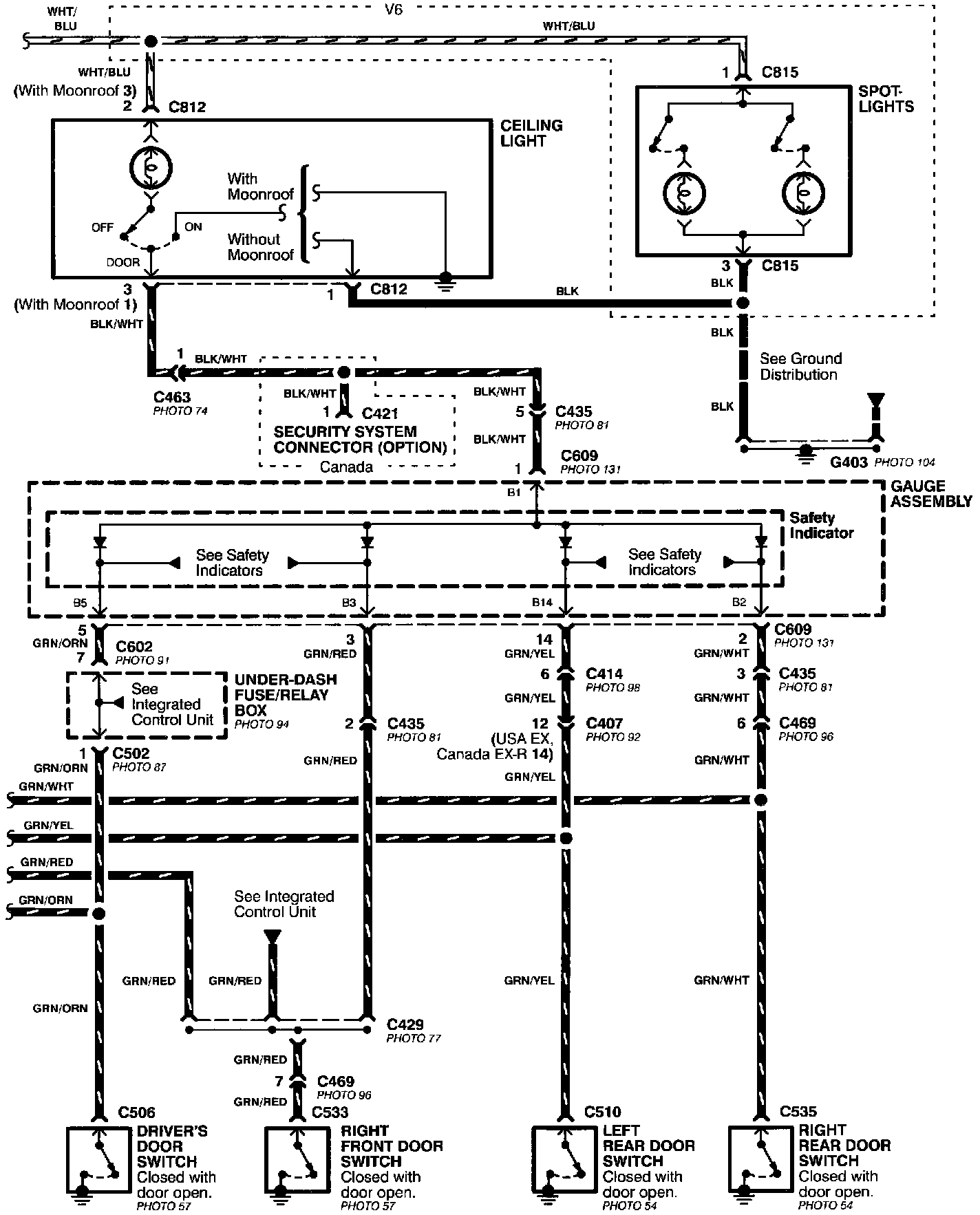

Ceiling, Door Courtesy, Spot And Trunk Lights (Part 2 Of 2):
