Trailer Connector
Trailer Connector

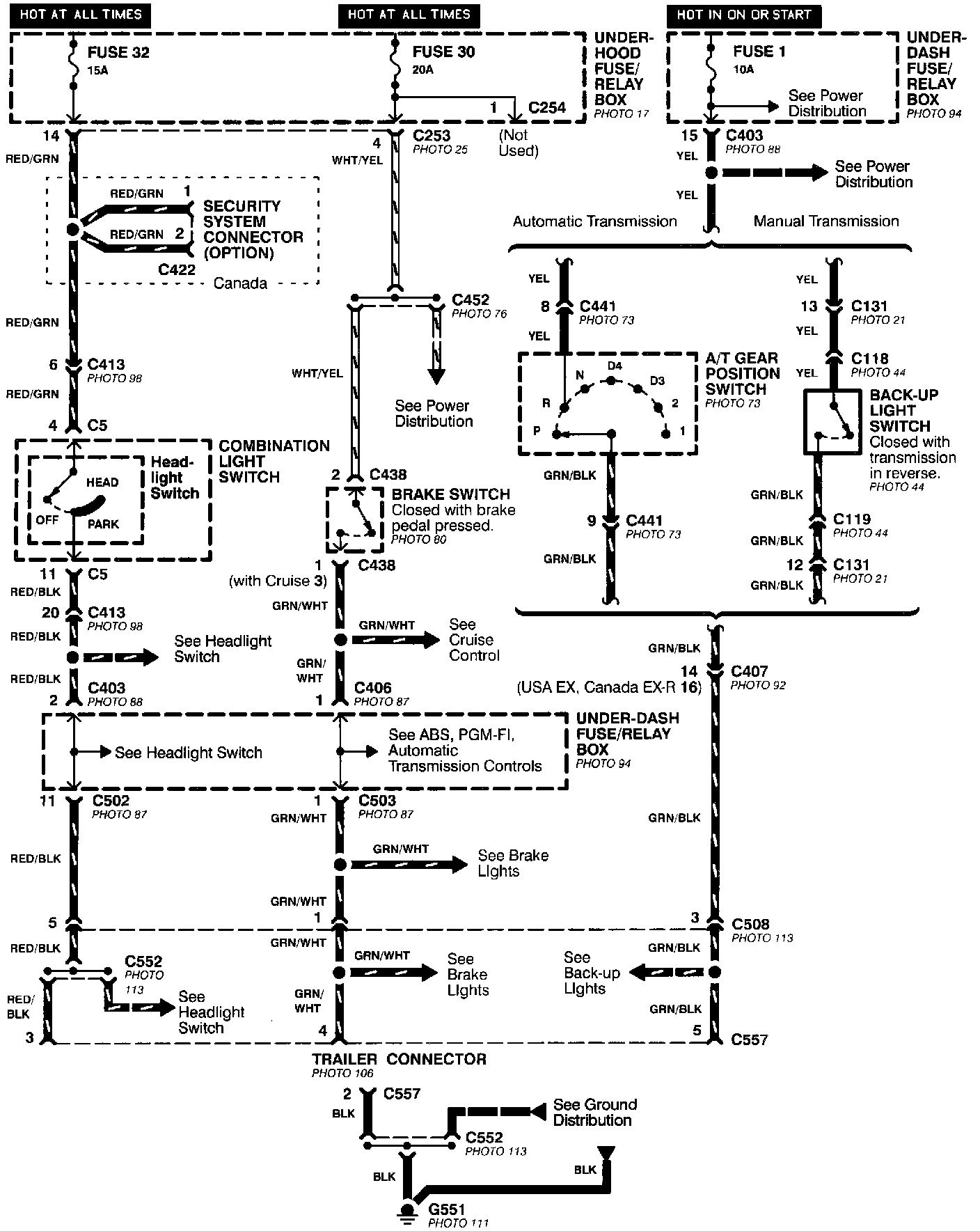

Trailer Connector (part 1 Of 2):
Trailer Connector (part 2 Of 2):
