Accord Coupe L4-2.2L SOHC VTEC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Ignition System
>>
System Diagram
>>
DX, LX, and Canada Ex
DX, LX, and Canada Ex

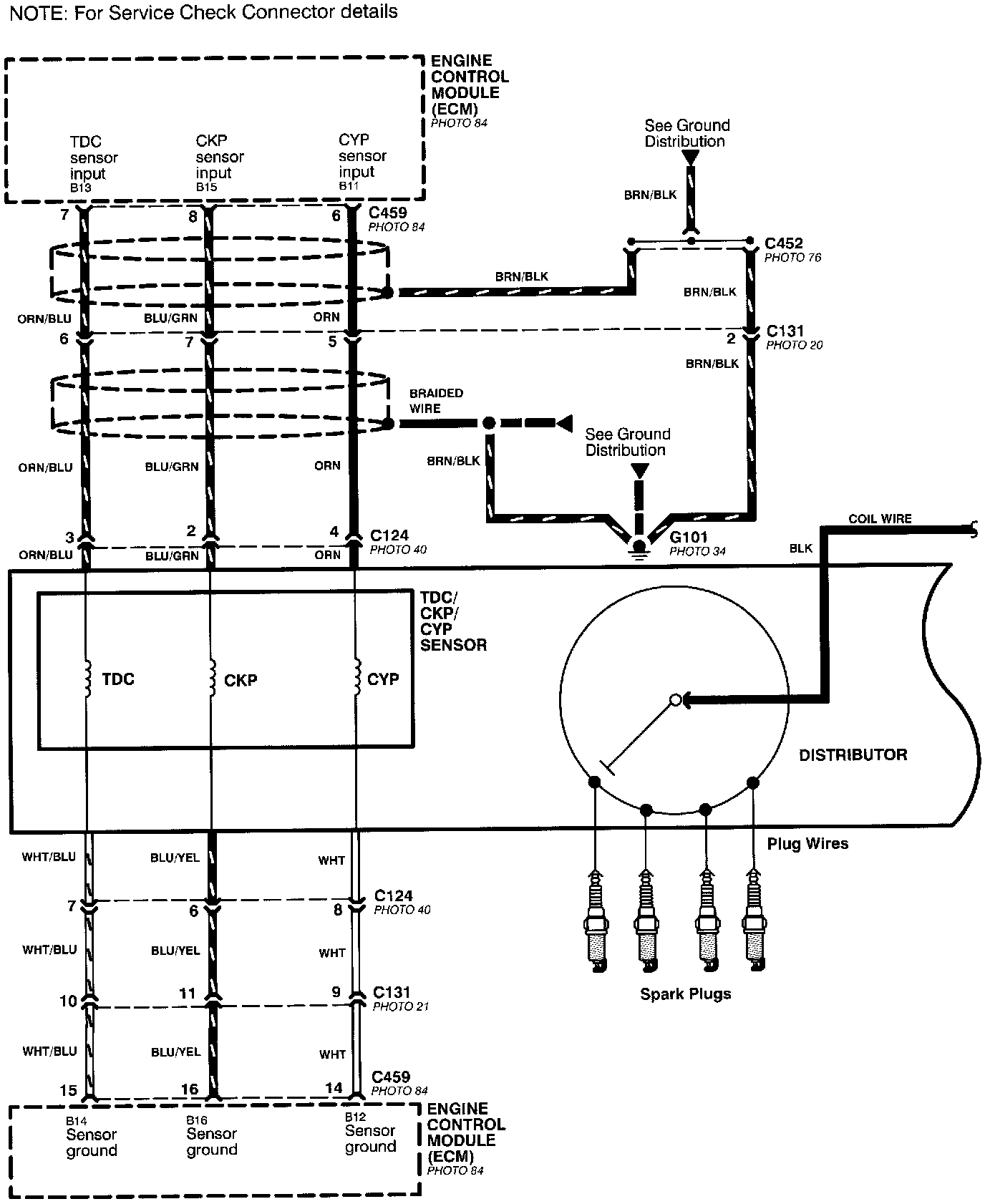

Ignition System -(DX,LX,and Canada EX) (part 1 Of 2):
Ignition System -(DX,LX,and Canada EX) (part 2 Of 2):
