Headlamp
>>
Headlamp Switch
Headlamp Switch

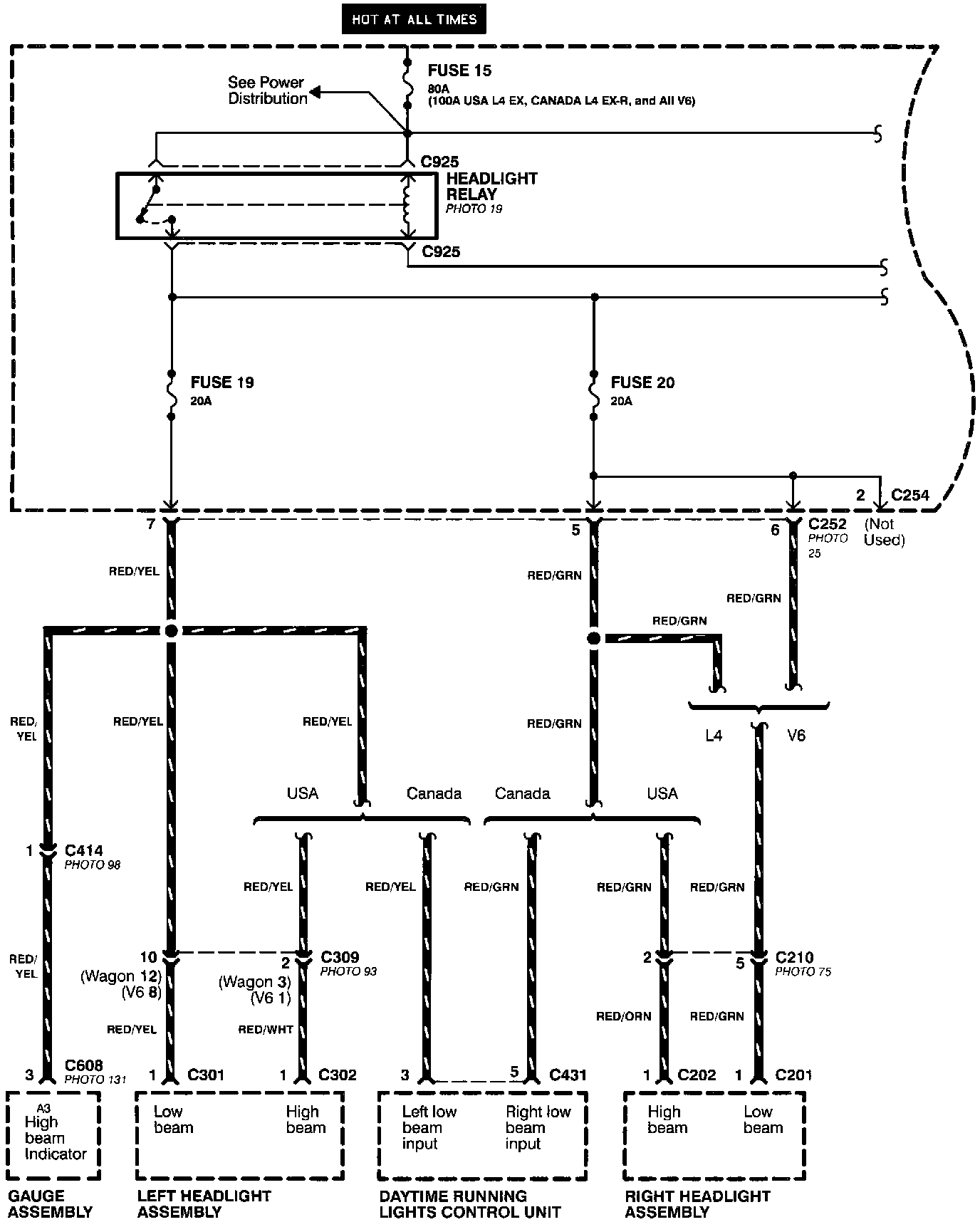

Headlight Switch (part 1 Of 2):

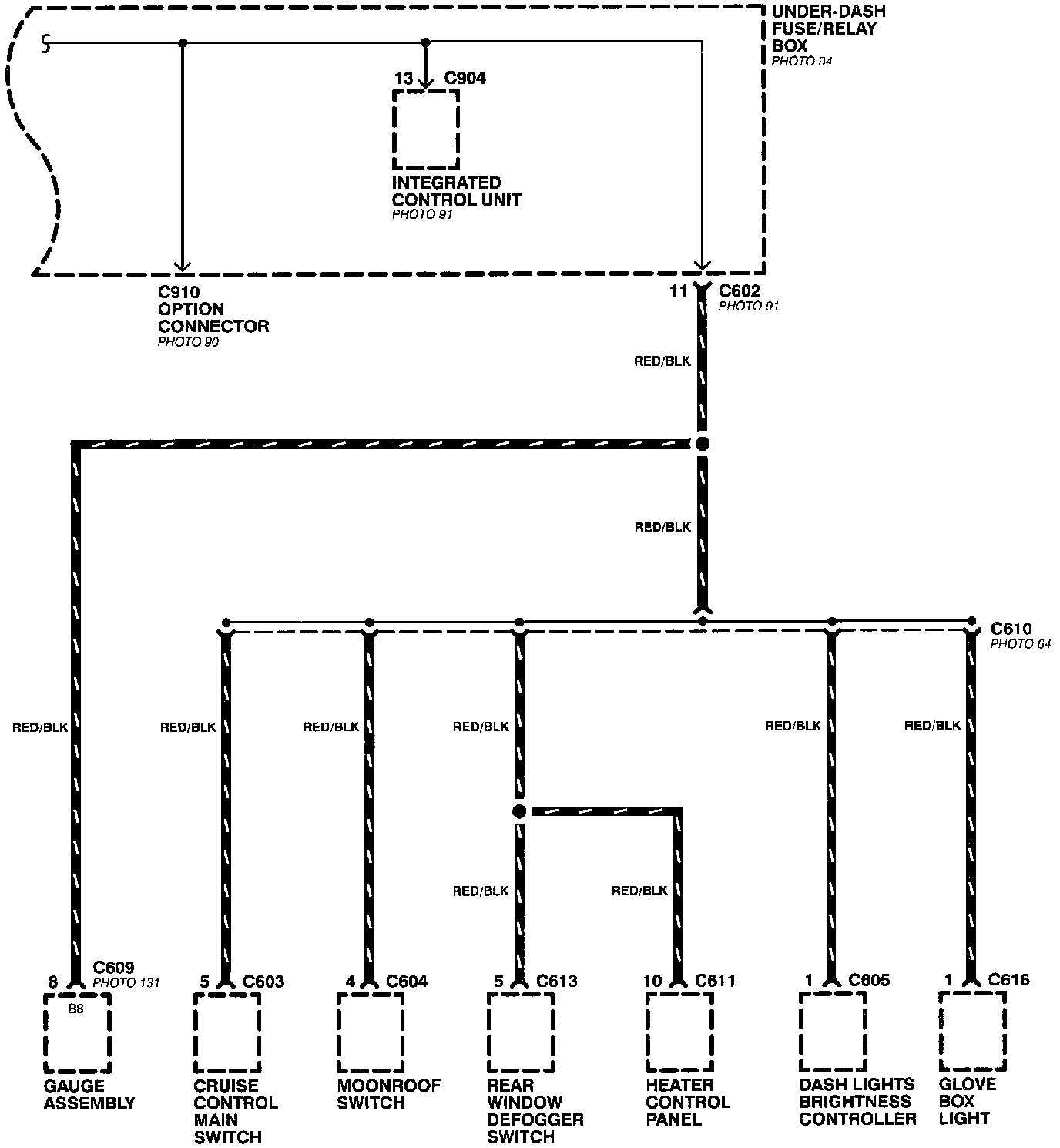

Headlight Switch (part 2 Of 2):

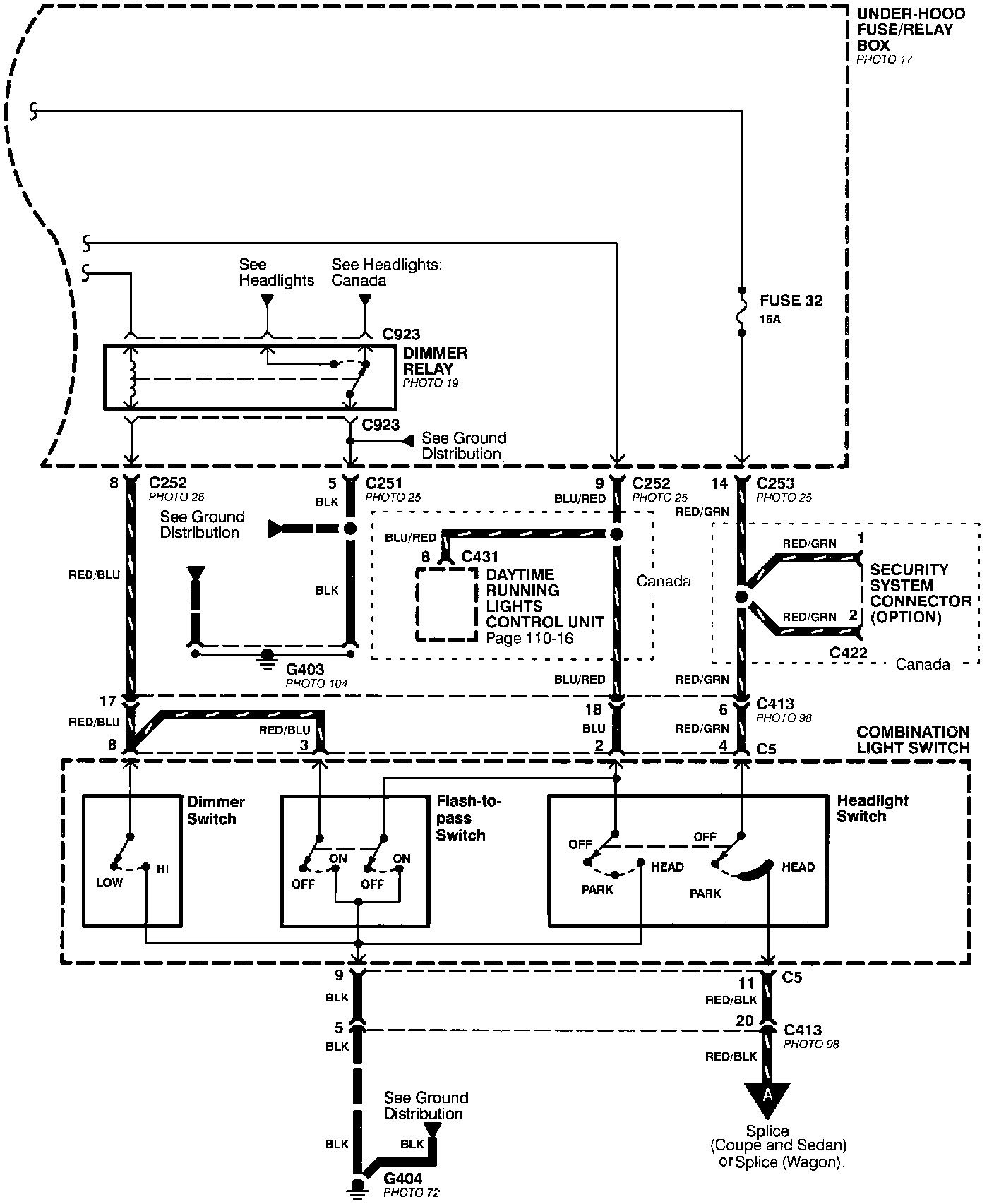

Headlight Switch (Part 1 Of 2):

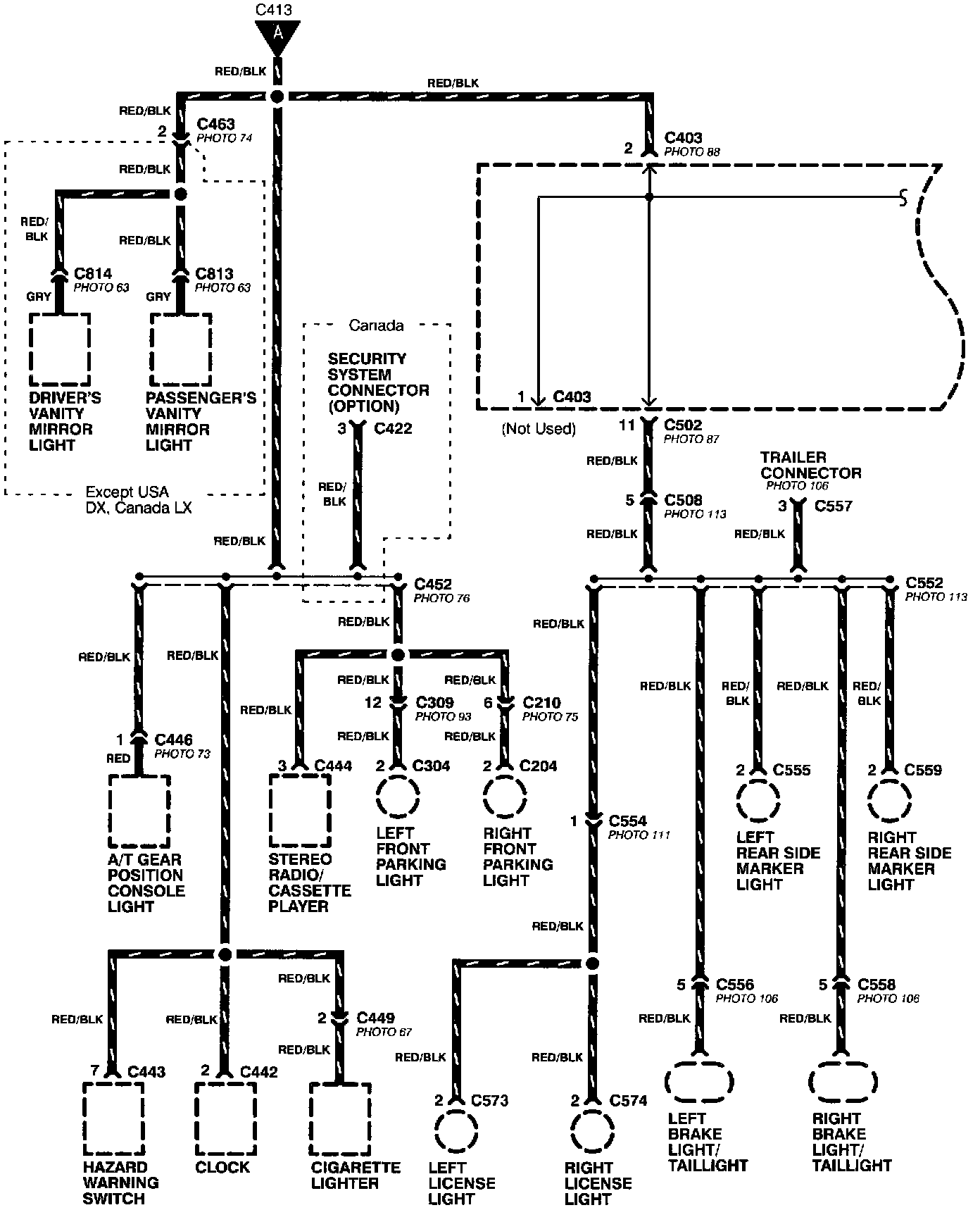

Headlight Switch (Part 2 Of 2):
