Honda
>>
1995
>>
Accord Coupe L4-2.2L SOHC VTEC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
Wiring Schematics
Wiring Schematics

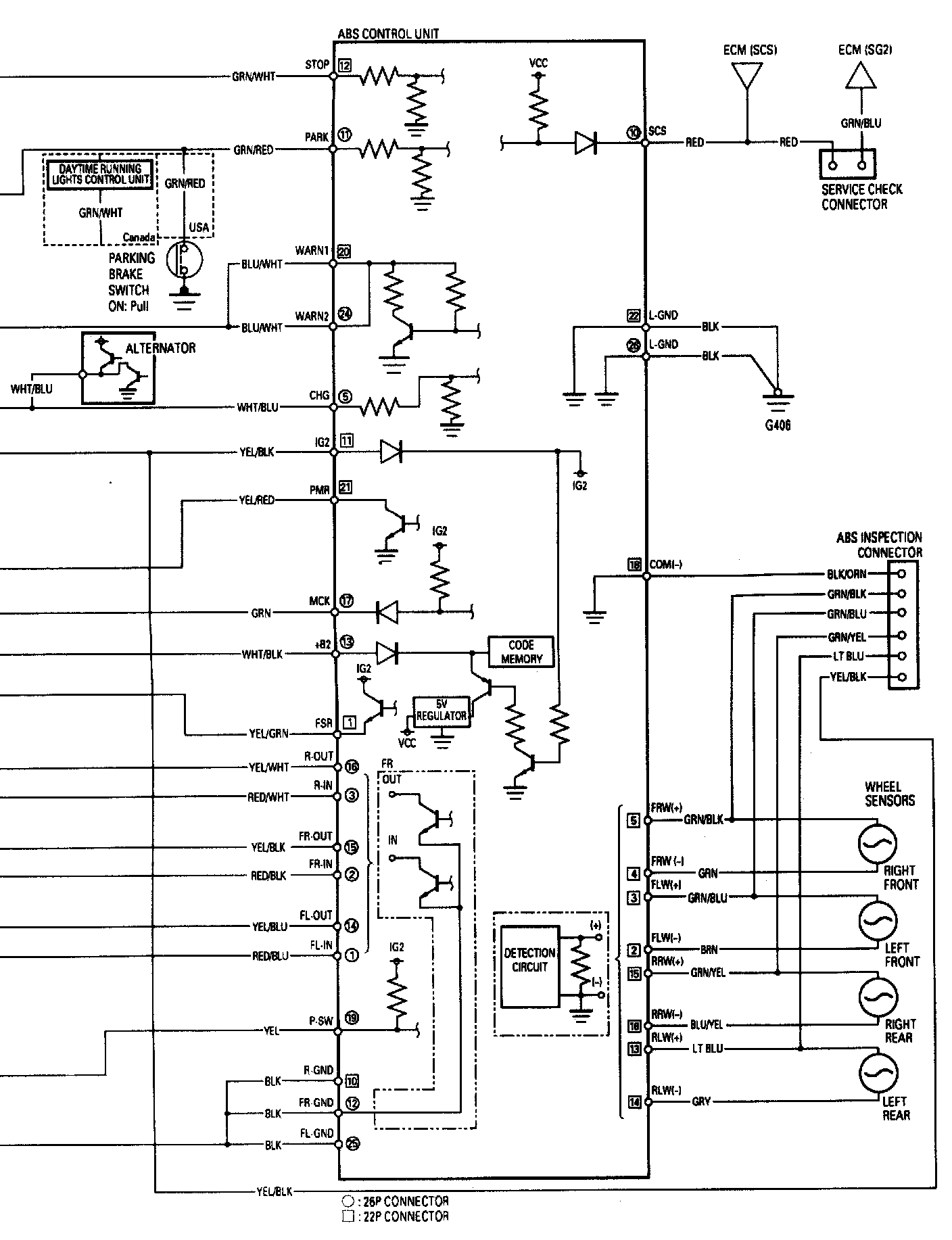

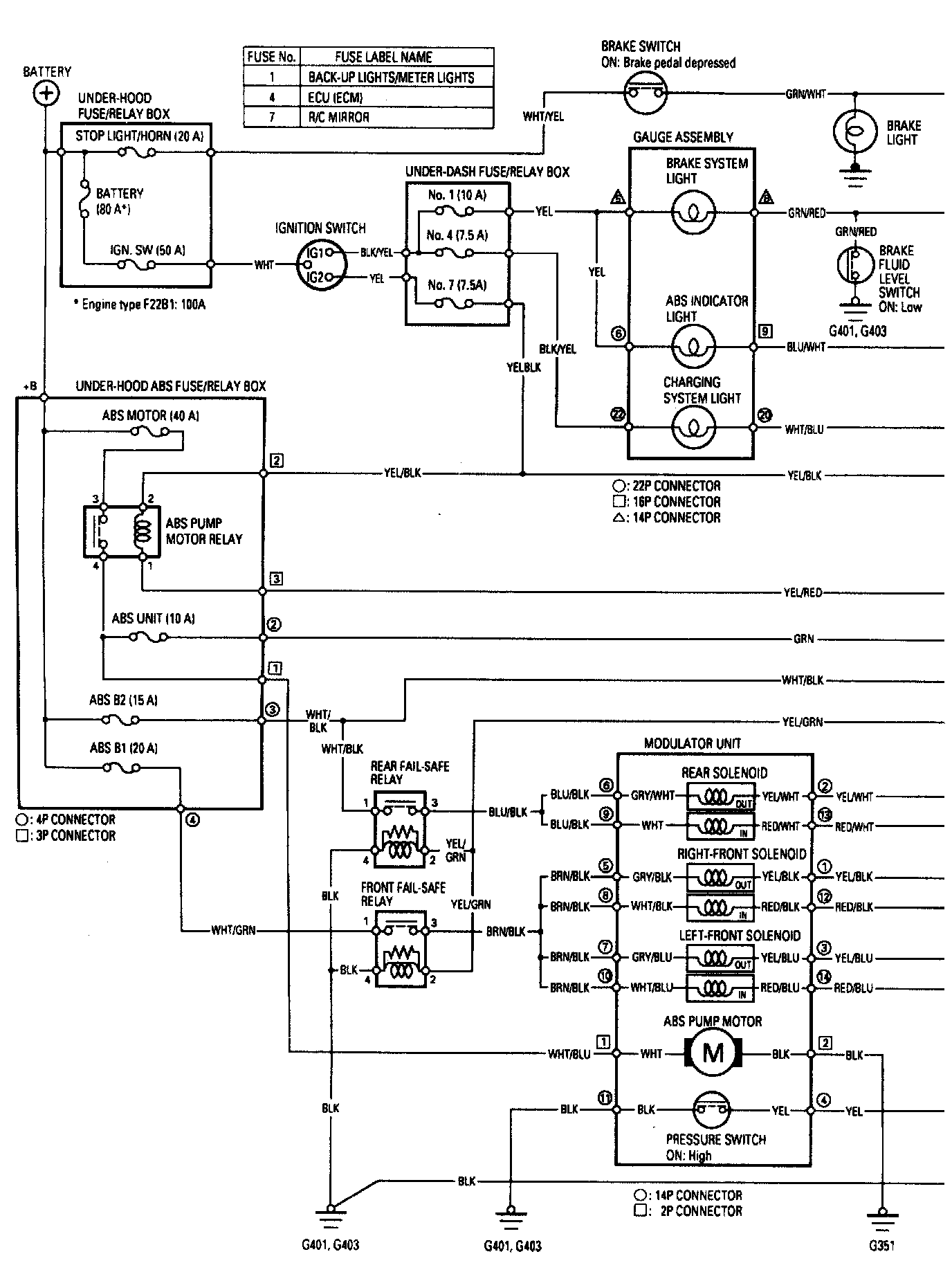

CIRCUIT DIAGRAMS
