Wiring Diagrams

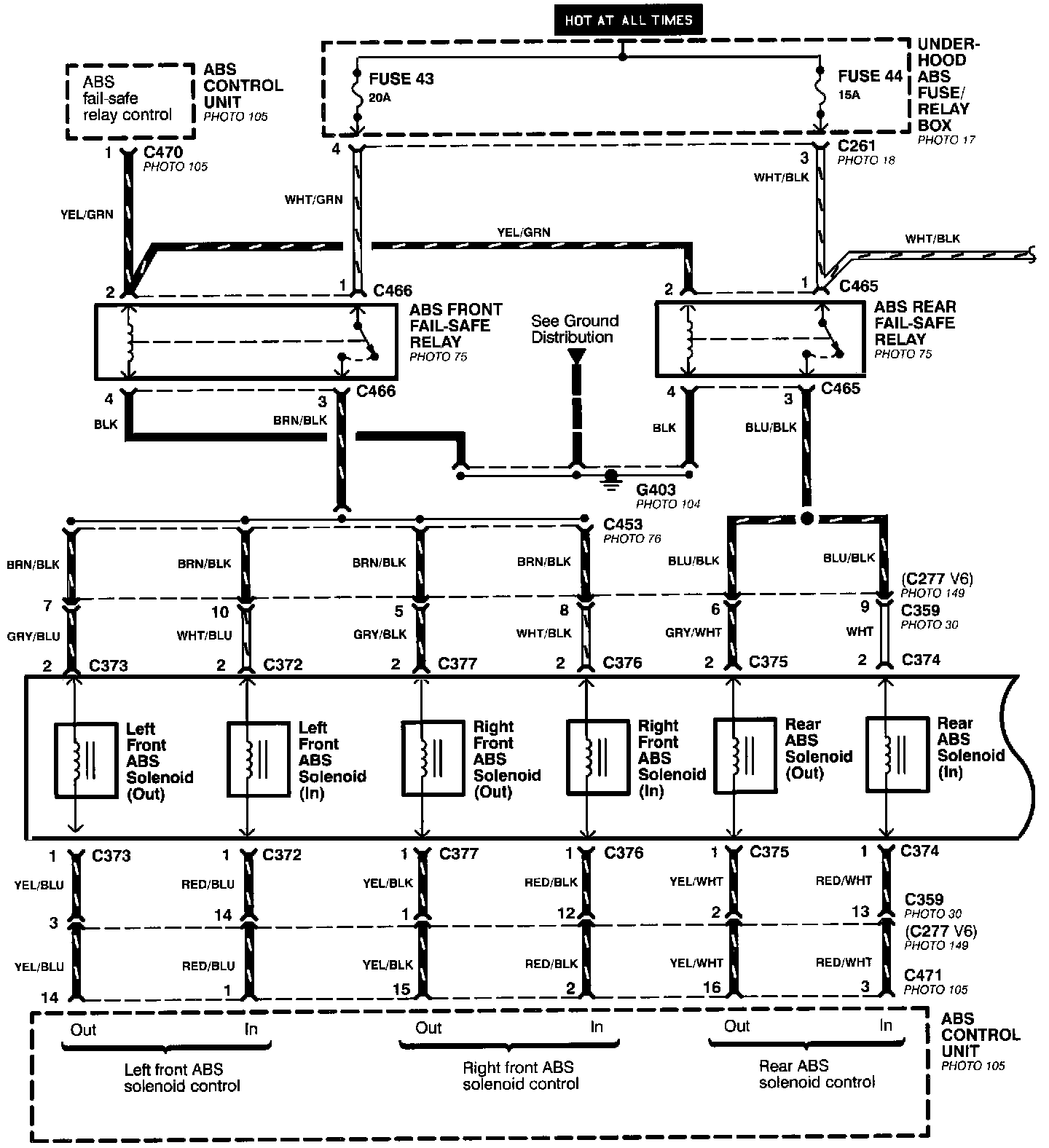

Anti-lock Brake System (ABS)(part 1 Of 4):

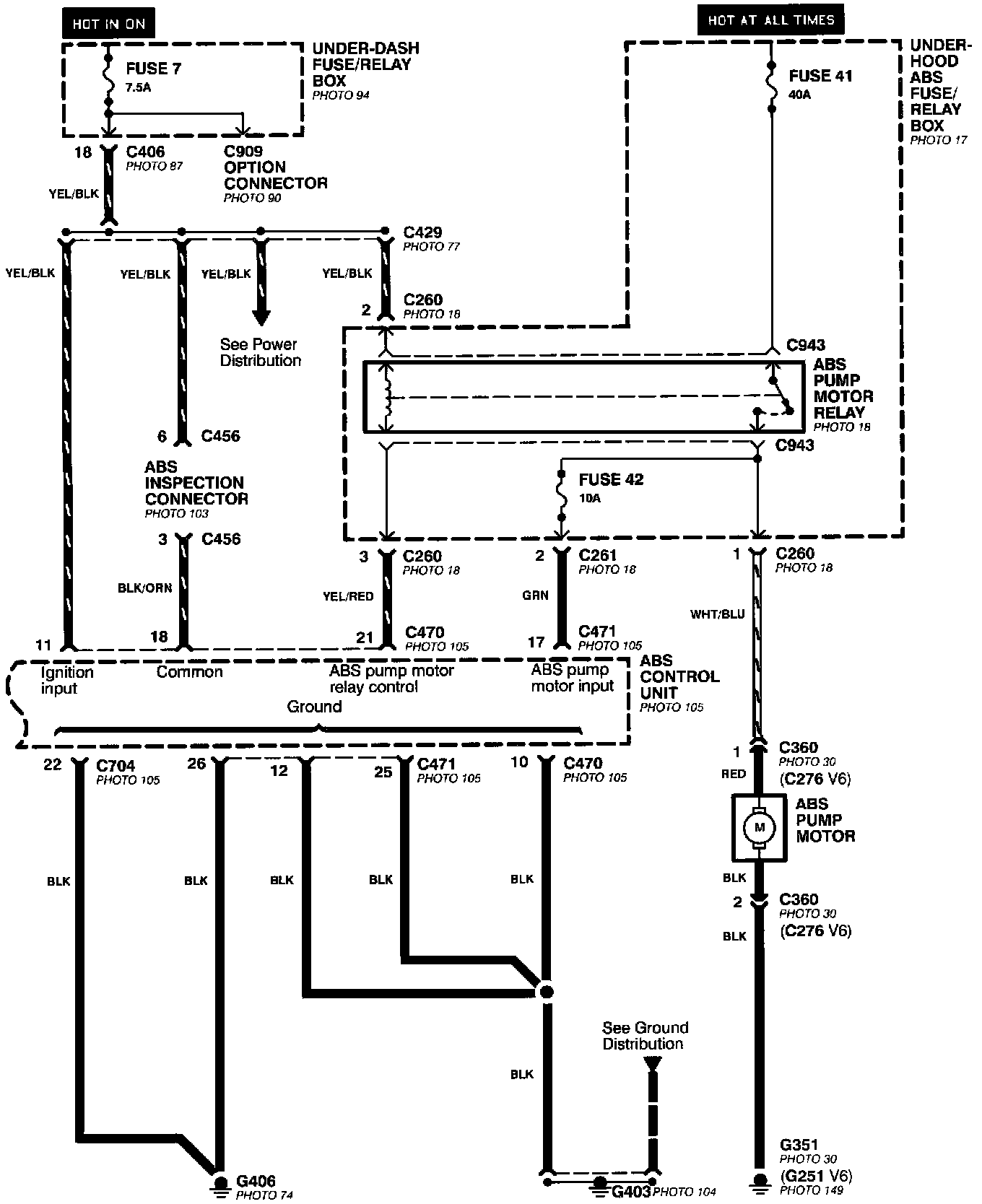

Anti-lock Brake System (ABS)(part 2 Of 4):

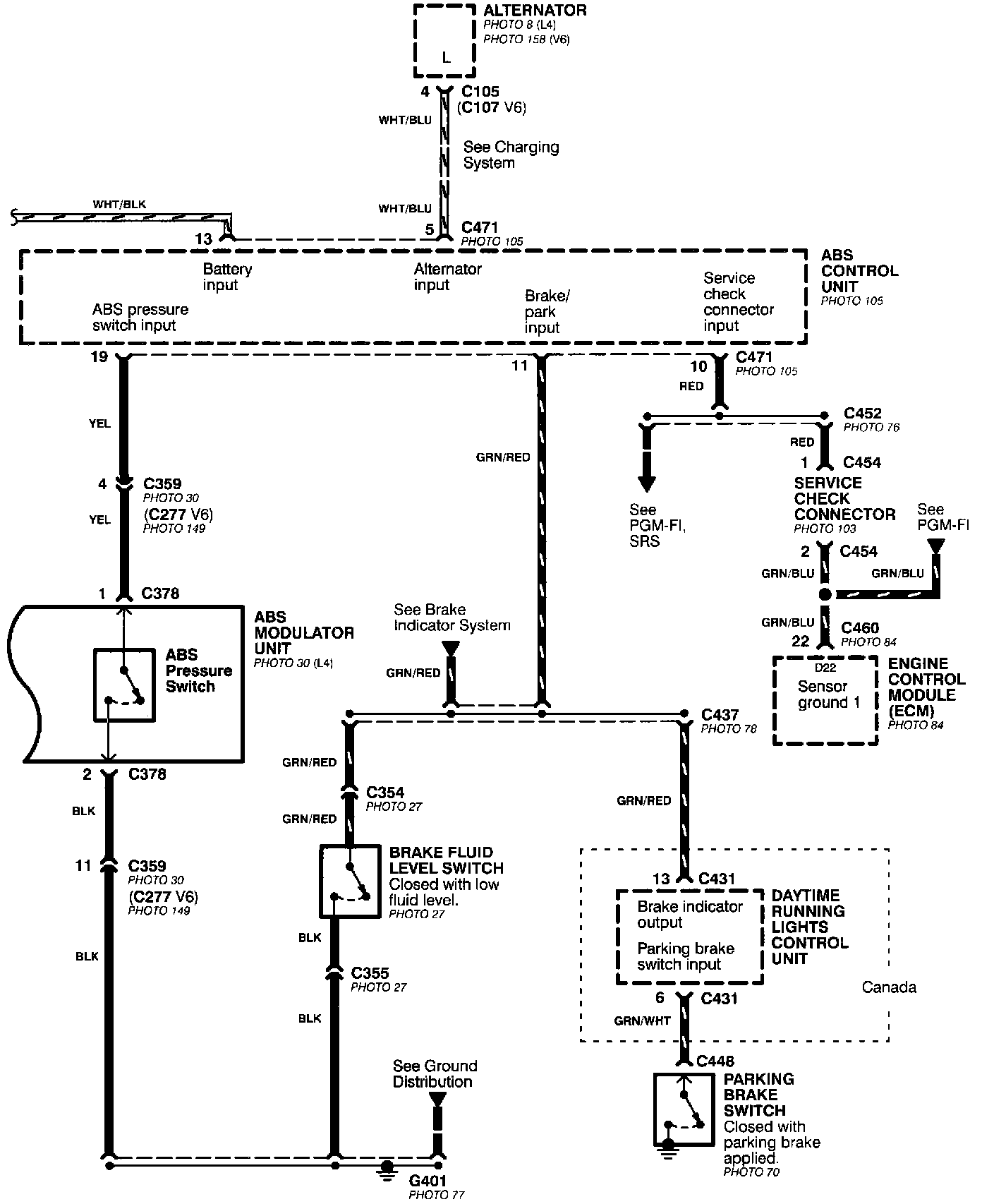

Anti-lock Brake System (ABS)(part 3 Of 4):

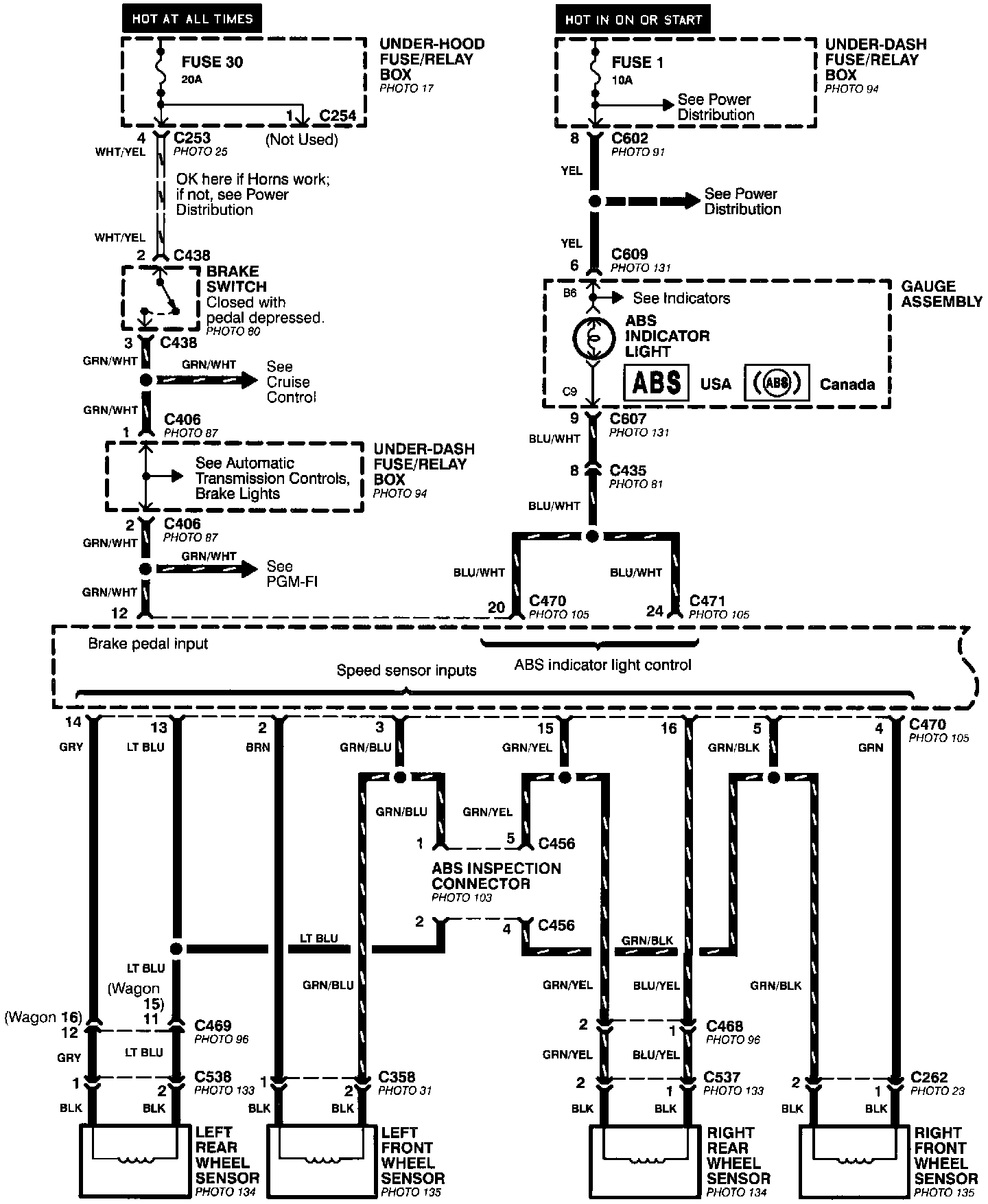

Anti-lock Brake System (ABS)(part 4 Of 4):
