Air Bag Systems

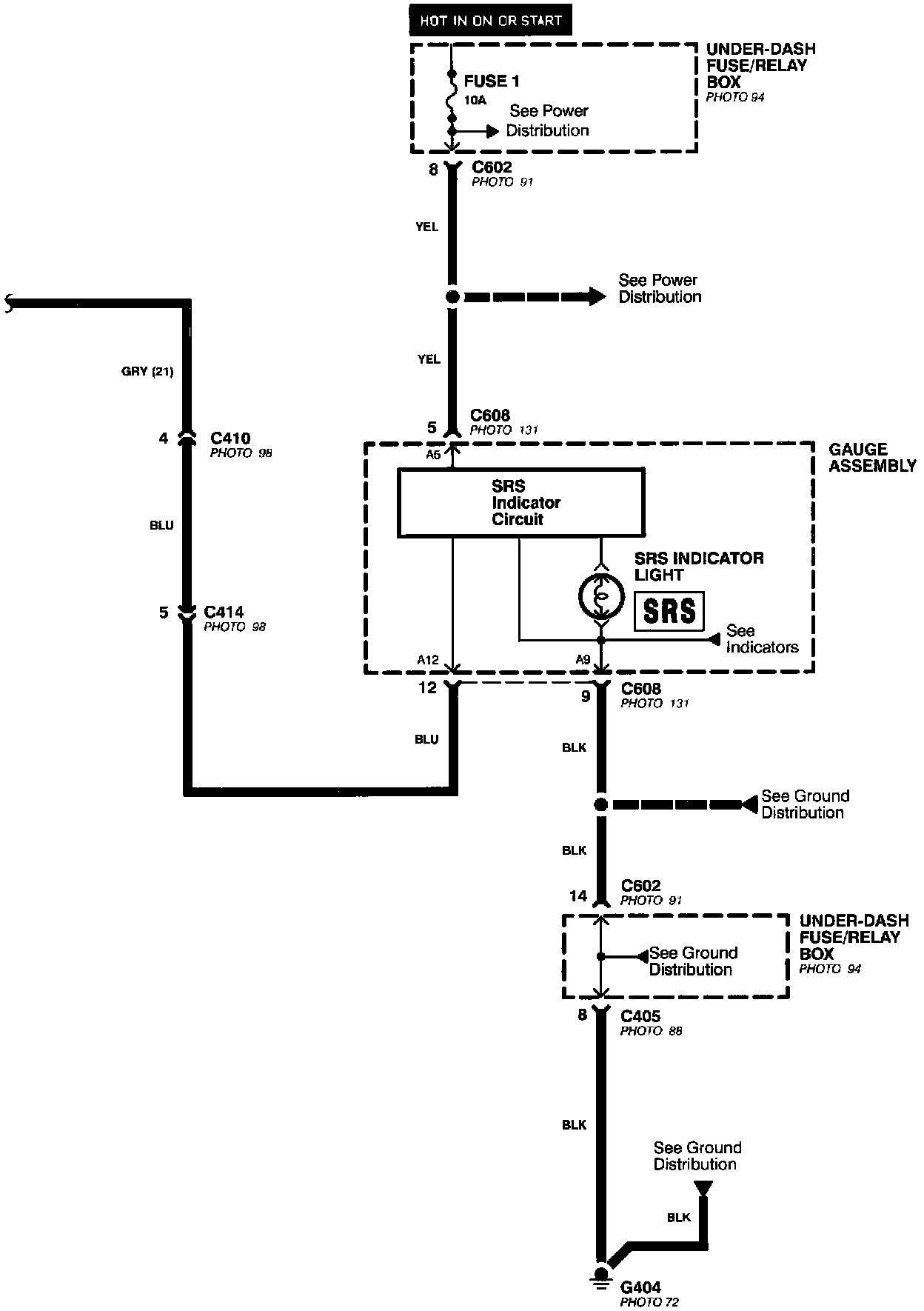

Supplemental Restraint System (SRS)(part 1 Of 2):



Supplemental Restraint System (SRS)(part 2 Of 4):
