Code 9-1 or No Code

DTC 9-1 (Continuous failure)
- If DTC 9-1 is indicated as Continuous failure, replace the SRS unit.

DTC 9-1 (Intermittent failure)

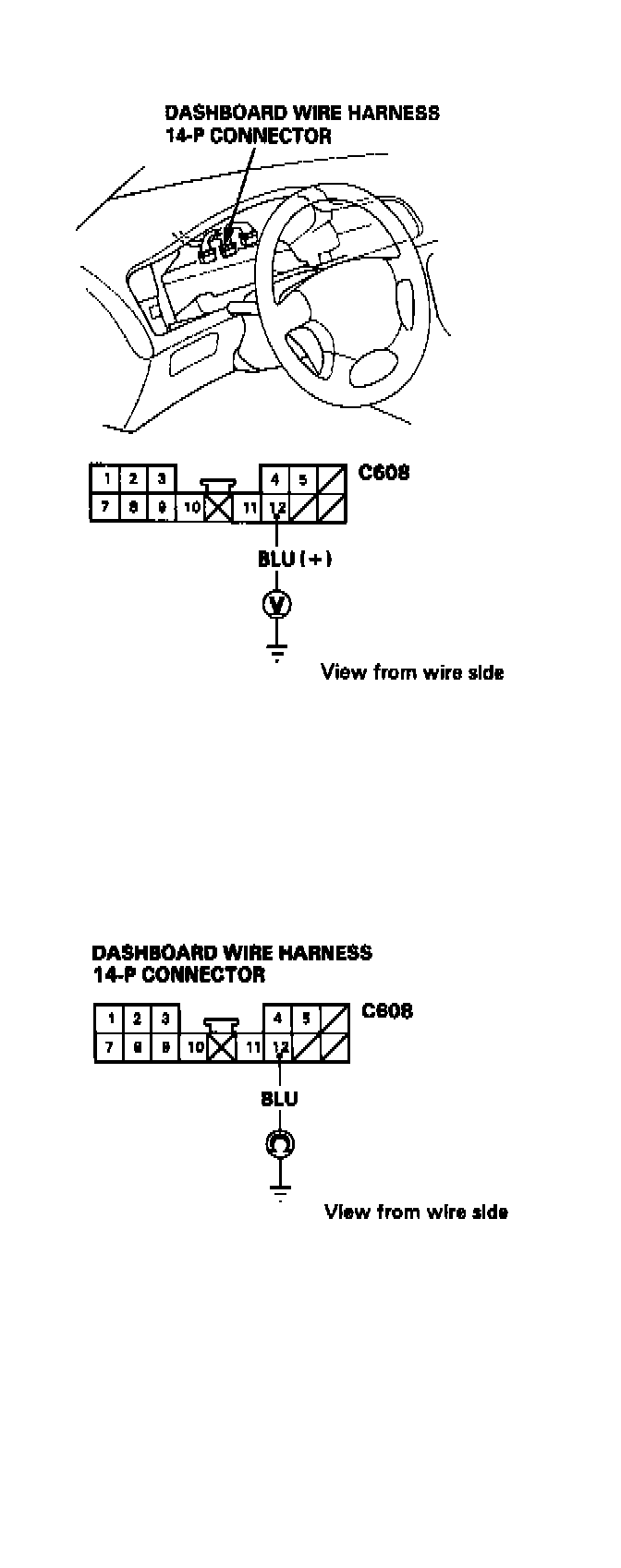

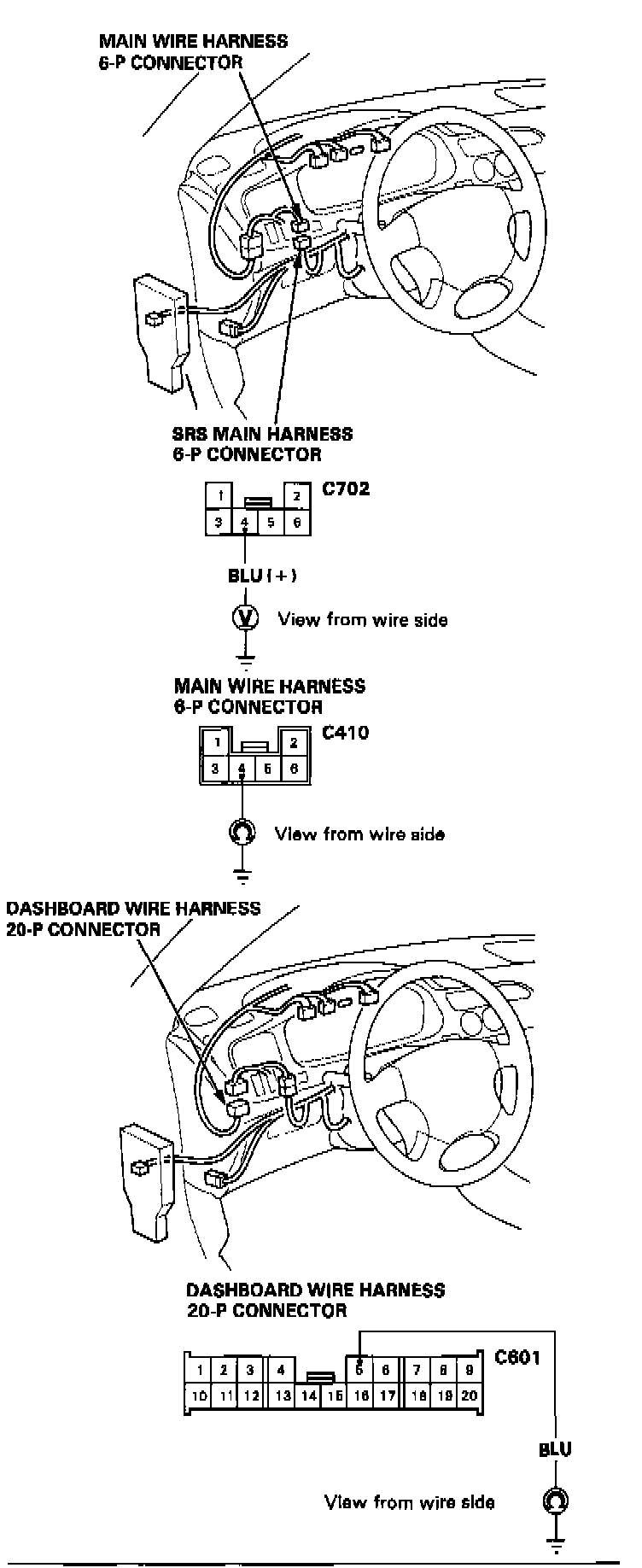

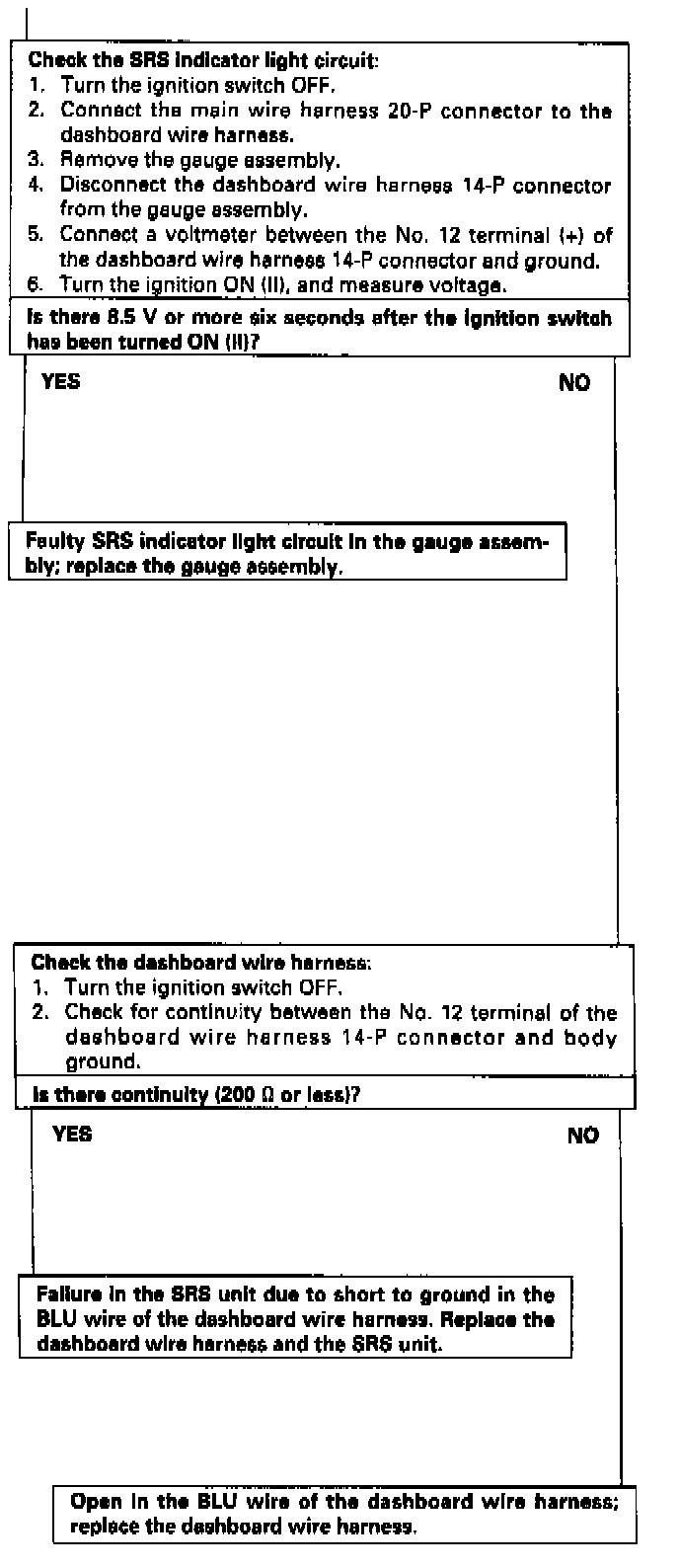

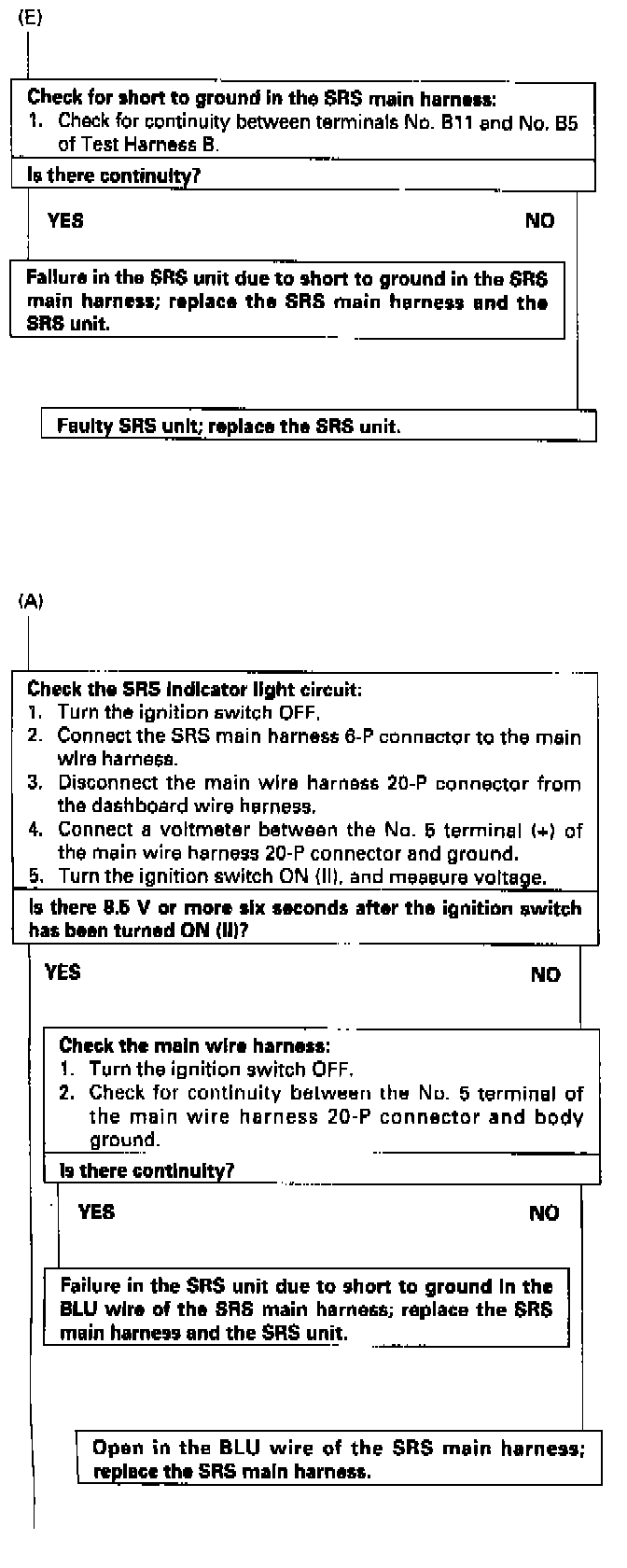

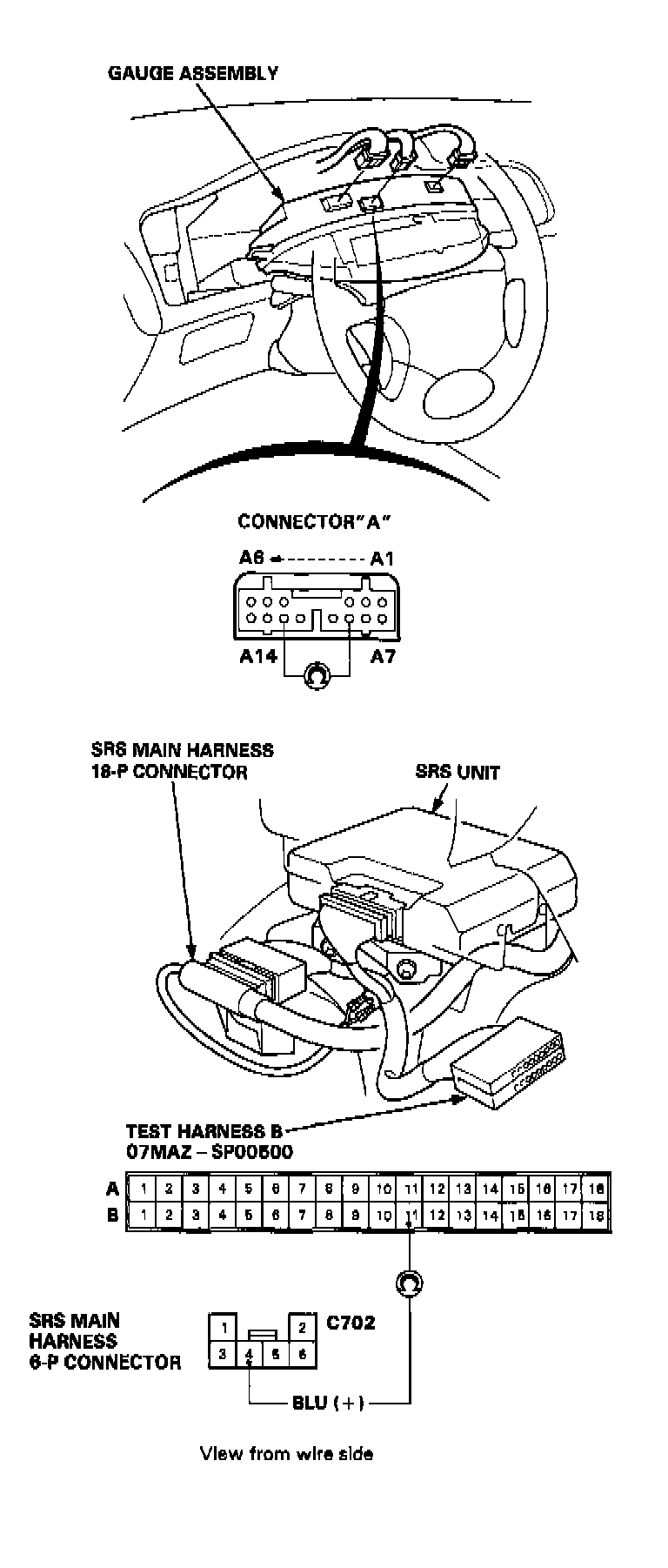

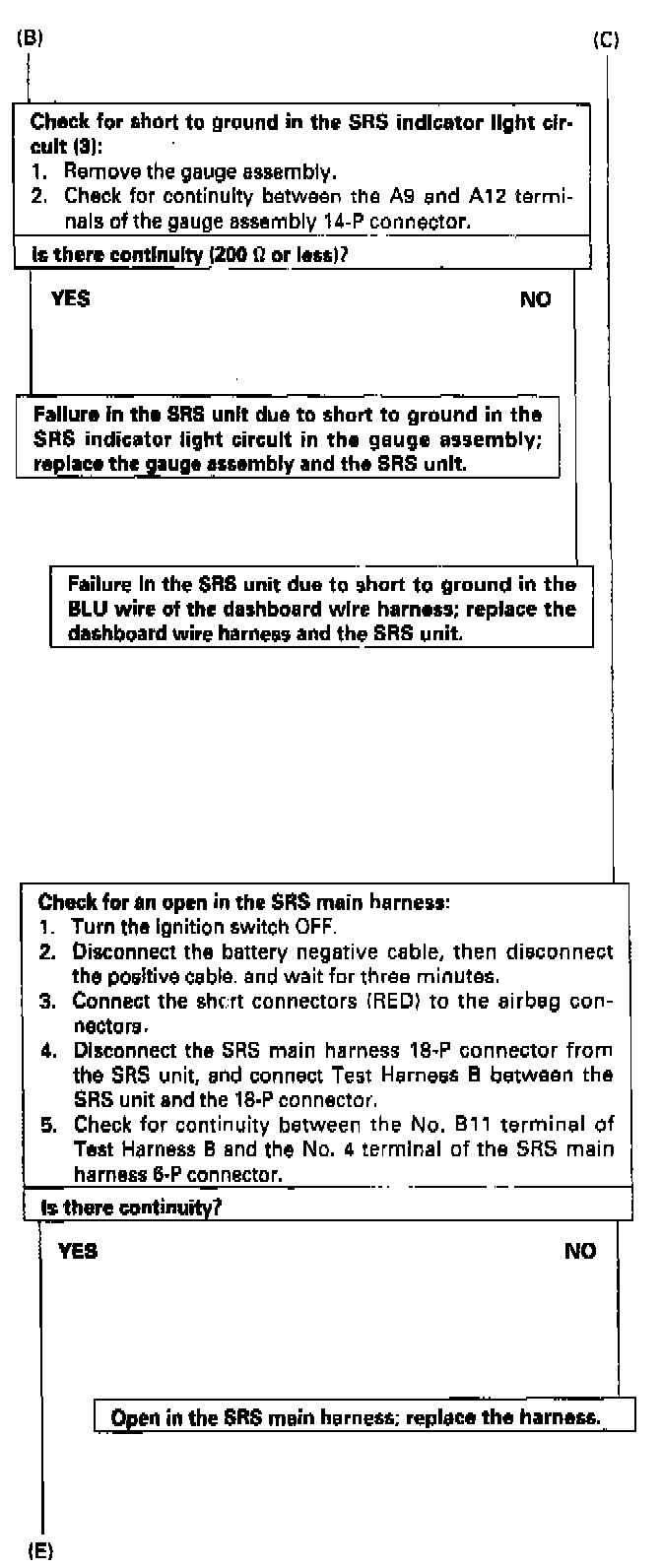

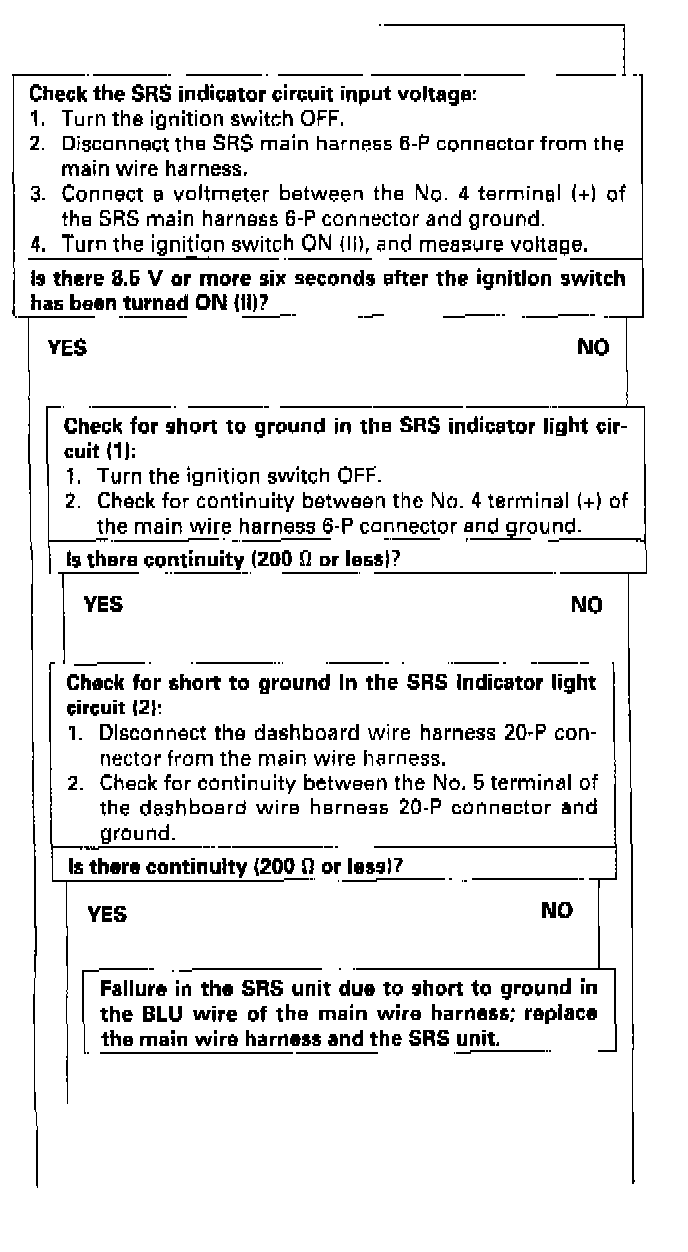

- If DTC 9-1 is indicated as intermittent failure, follow the flowchart below starting with the SRS indicator circuit input voltage test. Make sure that all terminals make good contact.
- If no DTC is indicated (SRS indicator light stays on), start troubleshooting procedures.



























CAUTION: Whenever the ignition switch is ON (II), or has been turned OFF for less than three minutes, be careful not to bump the SRS unit; the airbags could accidentally deploy and cause damage or injuries.
