Home
>>
Honda
>>
1994
>>
Prelude L4-2259cc 2.3L DOHC MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Malfunction Indicator Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

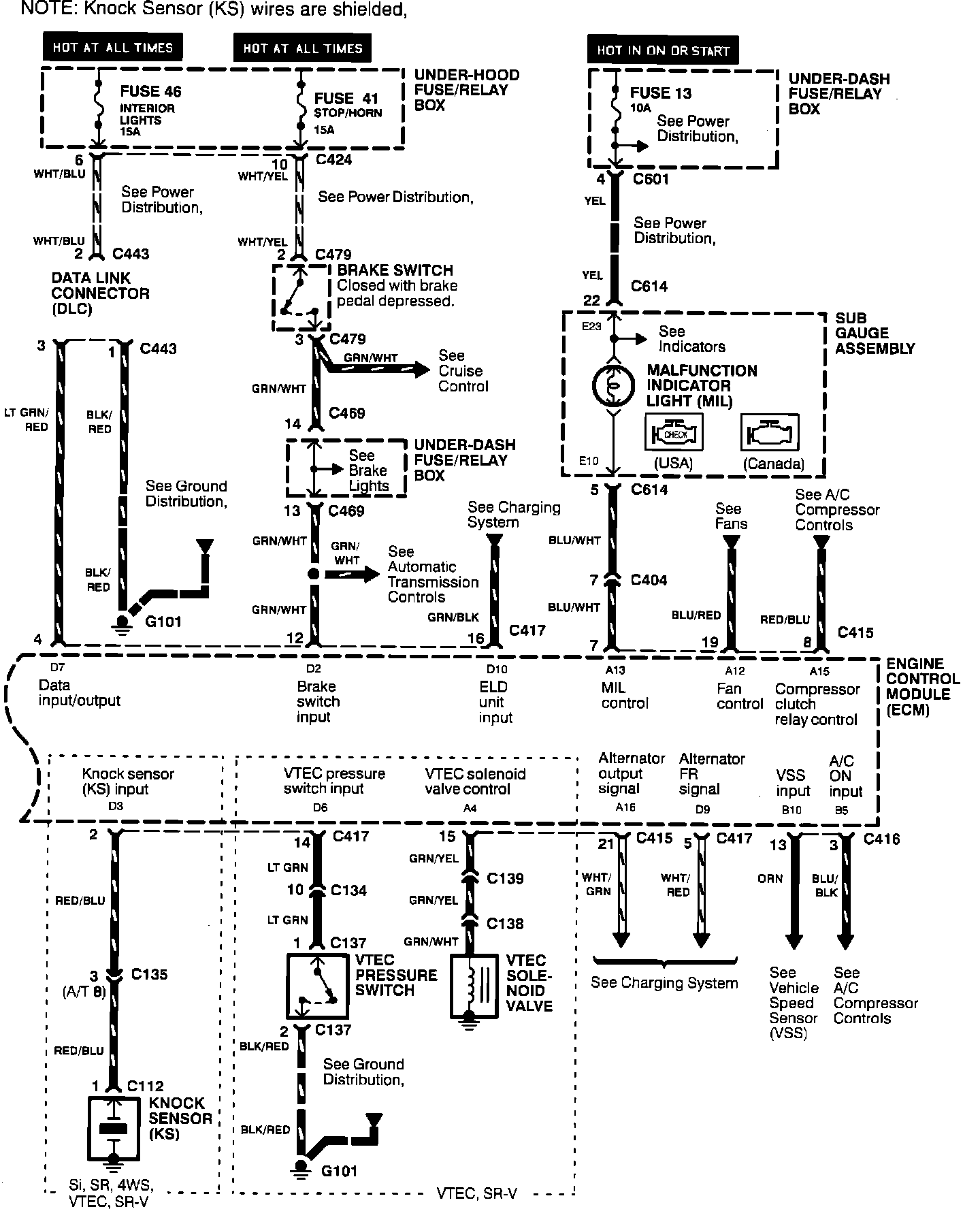

Emissions and Intake Air Control Component Circuits, Part 2 Of 2.:
