Prelude L4-2.2L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Under-Hood Fuse/Relay Box
>>

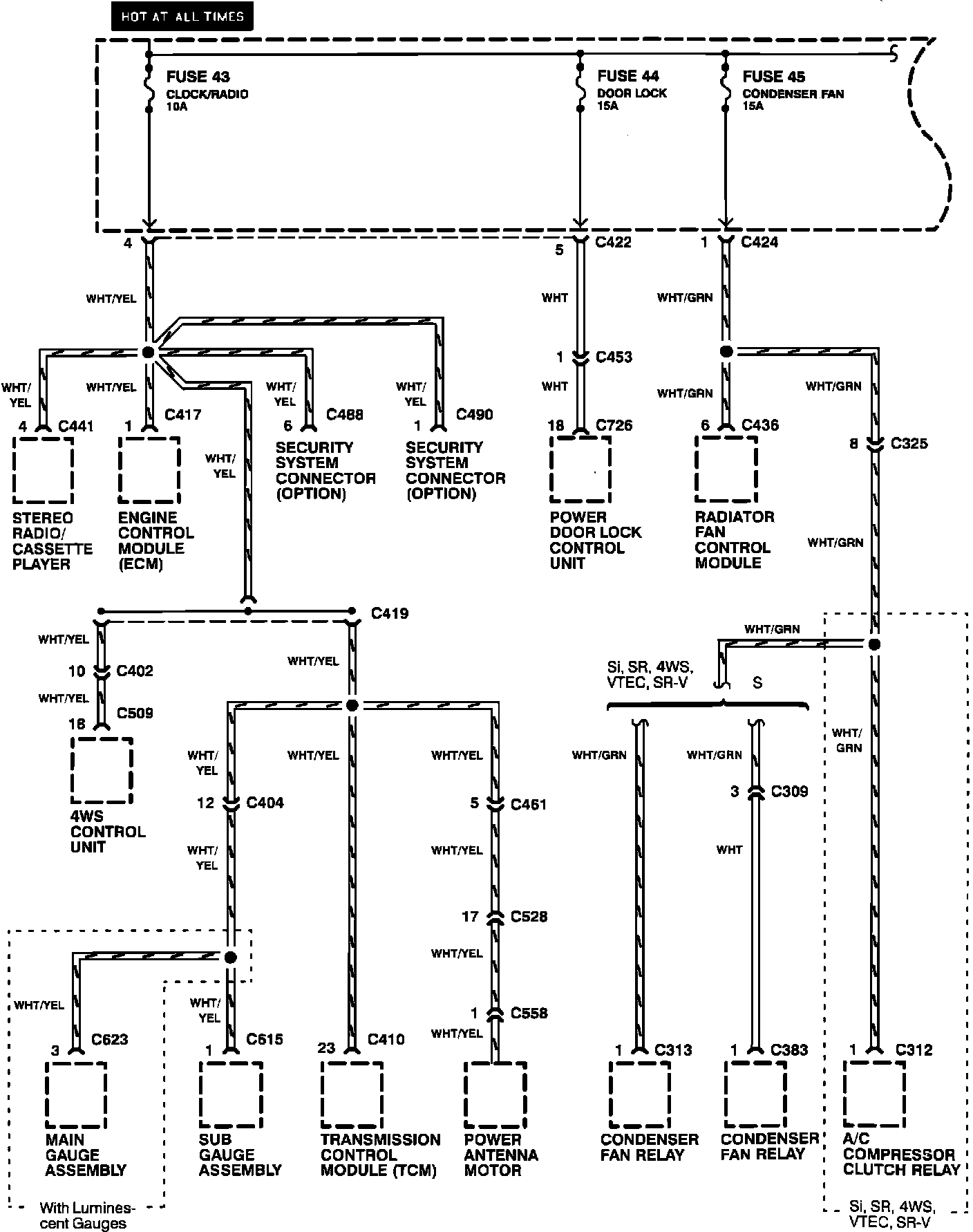

Fuse 43, 44, 45
Fuse 43, 44, 45
Power Distribution:
