Sunroof / Moonroof
Sunroof / Moonroof

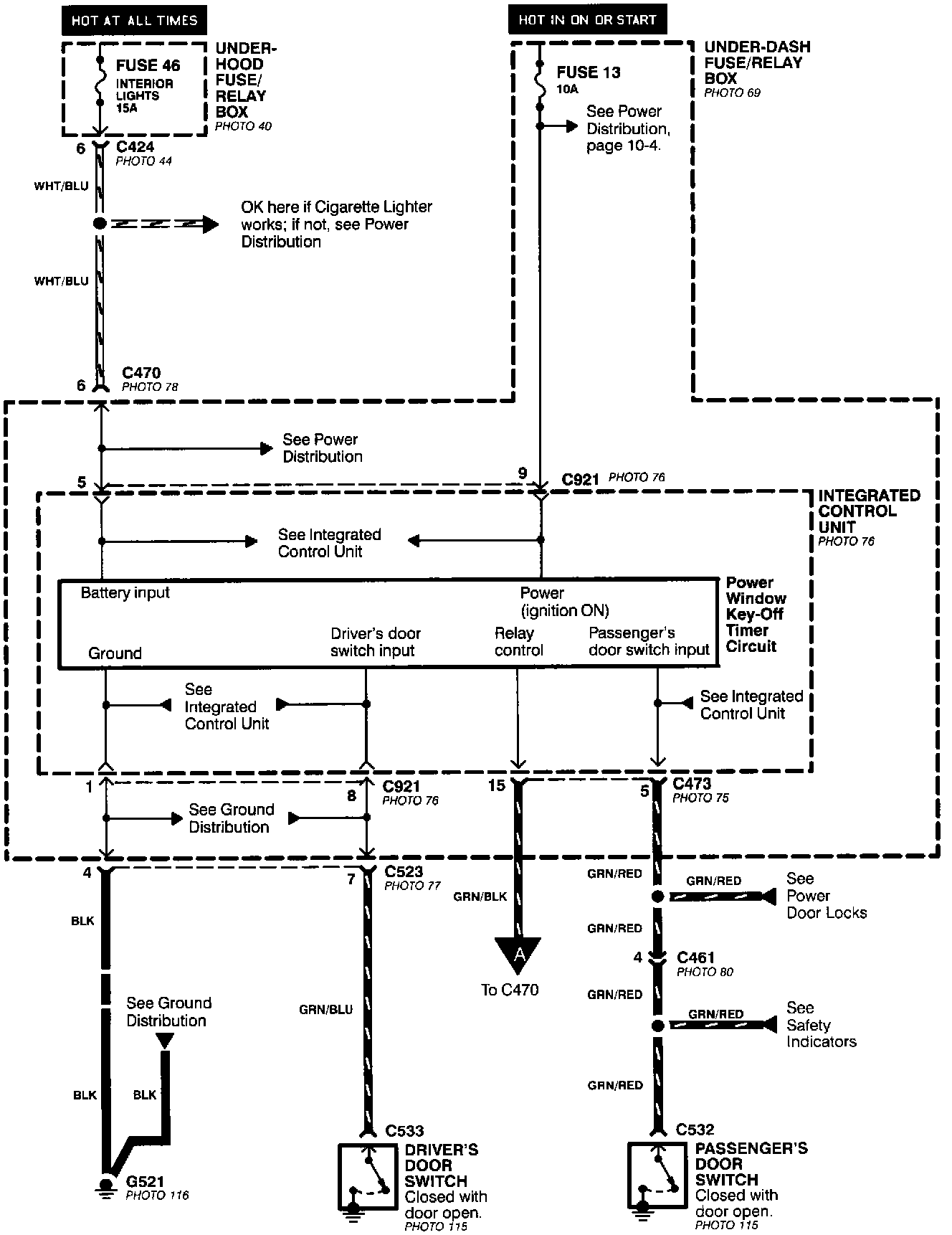

Sunroof- Key-OFF Timer Circuit:

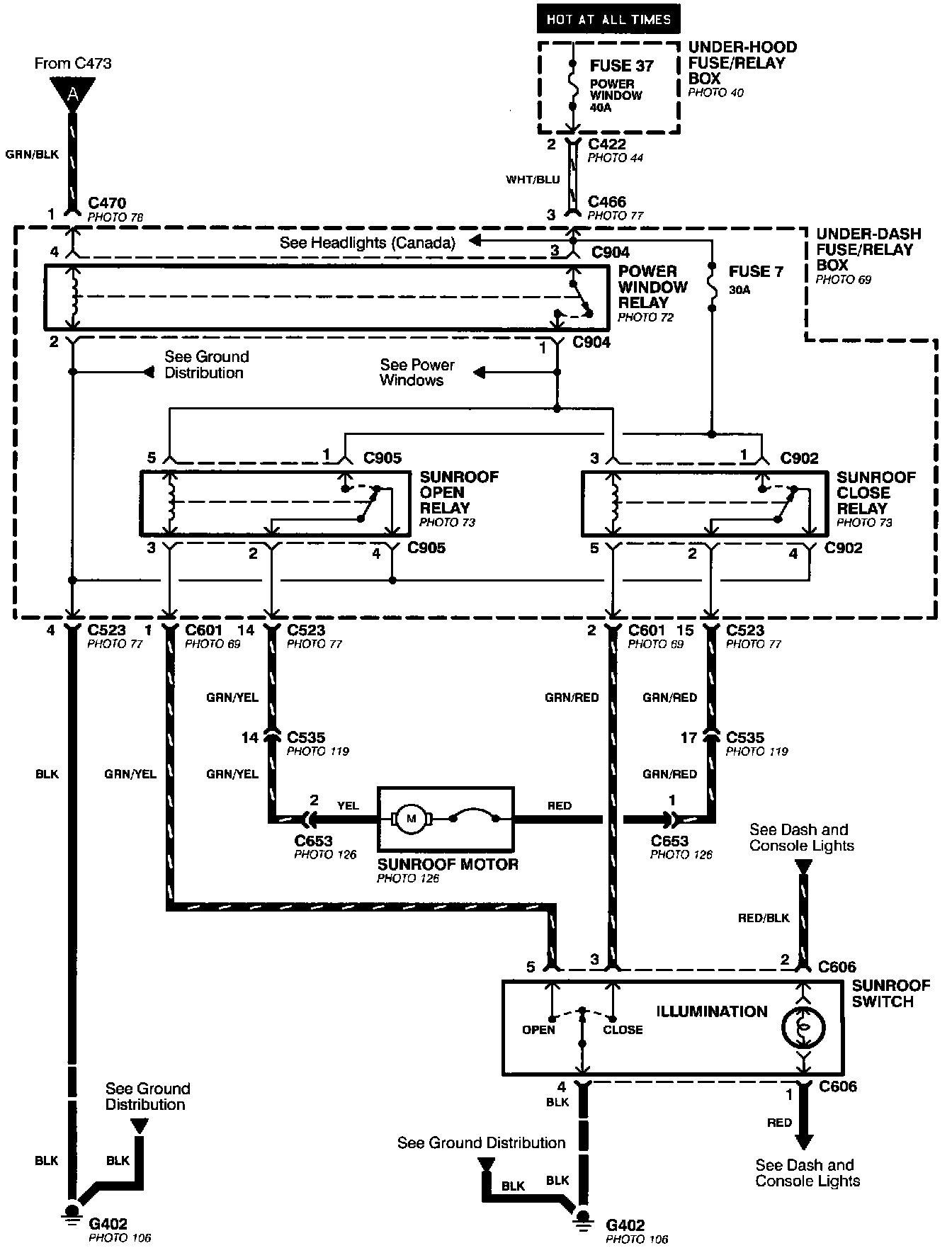

Sunroof- Key-off Timer Circuit (Part 2 Of 2):
