Home >> Honda >> 1994 >> Del Sol L4-1.6L SOHC (VTEC) >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Under-Hood Fuse/Relay Box >> Fuse 31, 32, 35

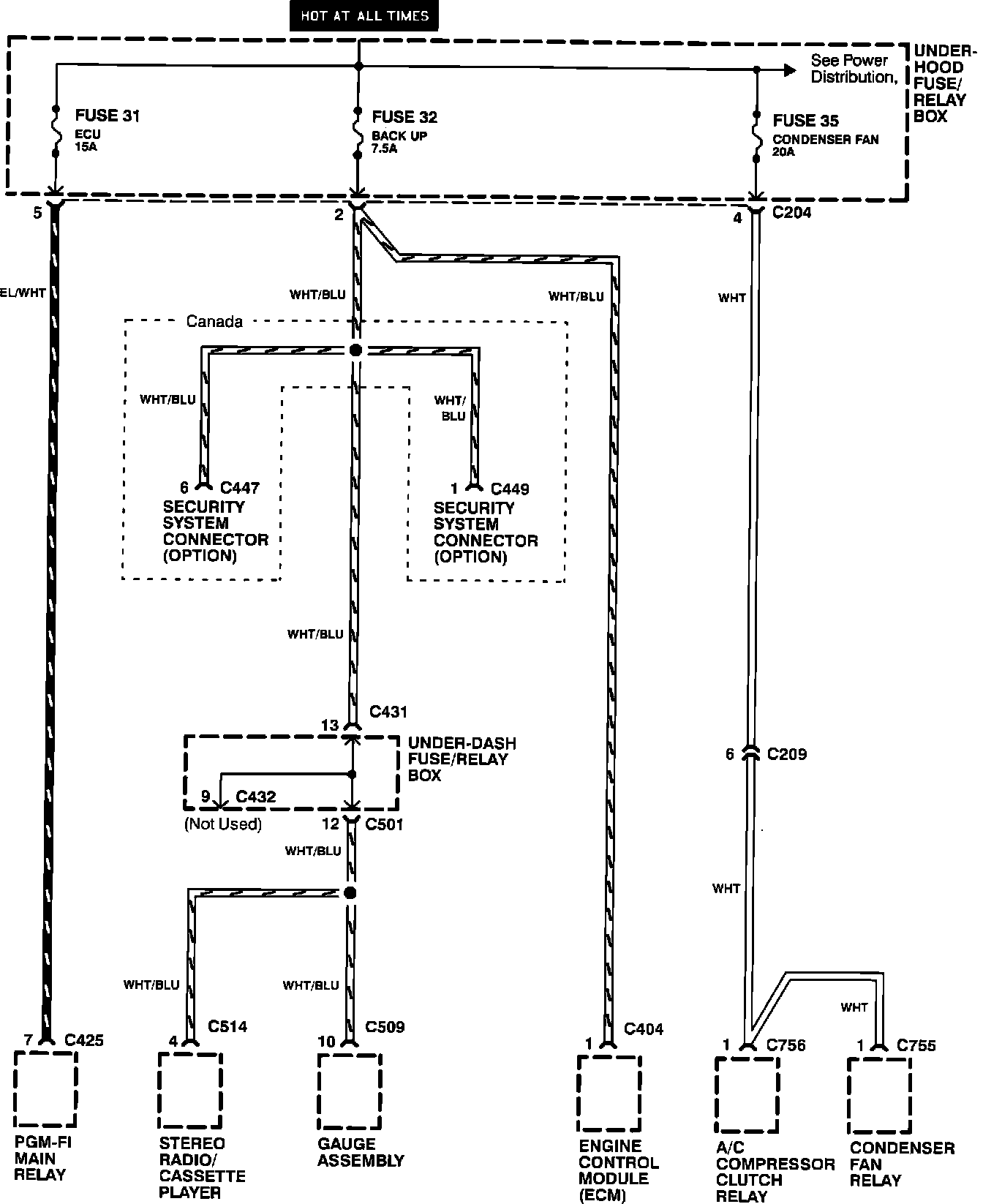

Fuse 31, 32, 35

Power Distribution:
