Under-Hood Fuse/Relay Box Wire Harness
Under-Hood Fuse/Relay Box Wire Harness

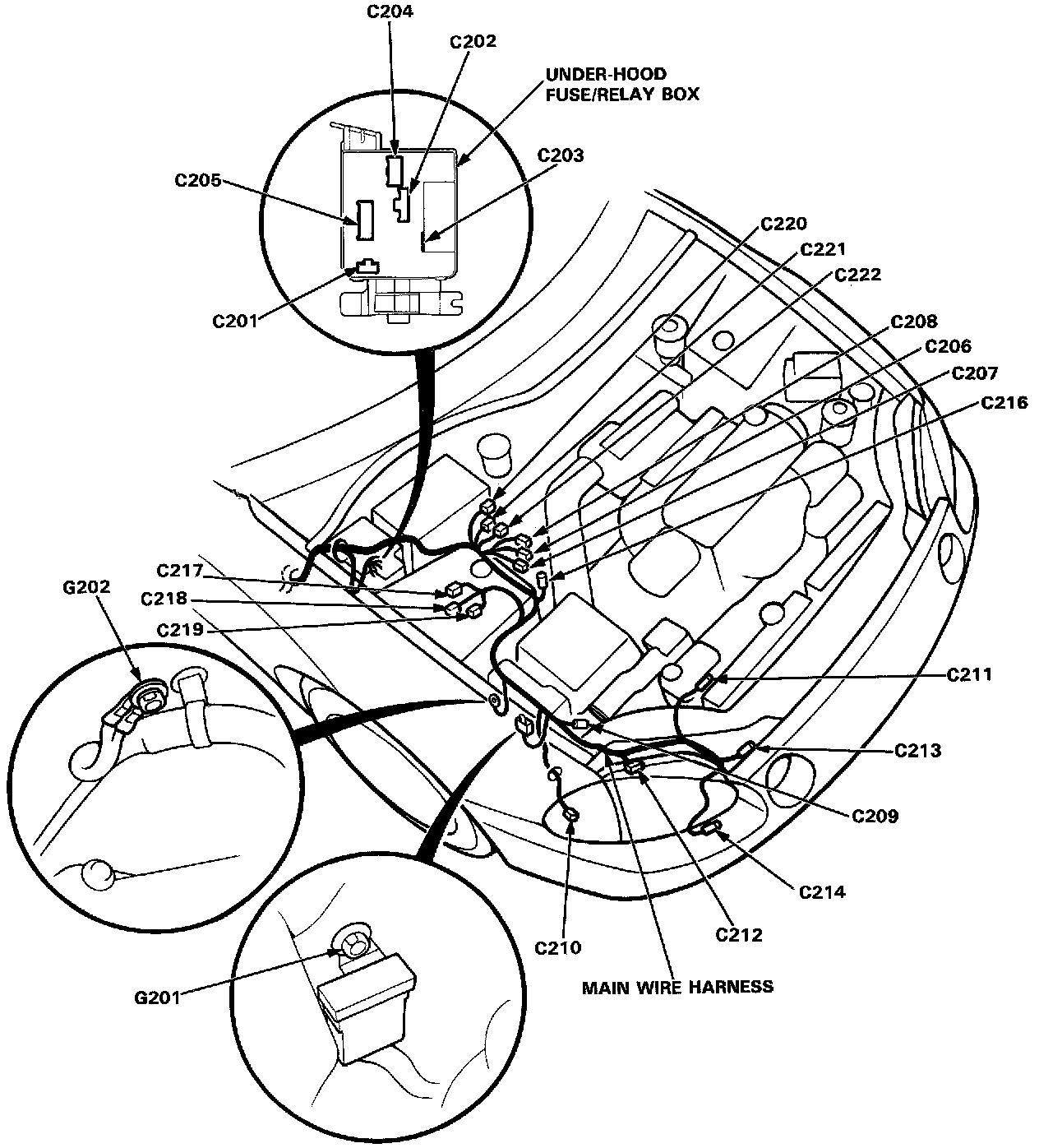

Main Wire Harness (Right Side Of Engine Compartment):

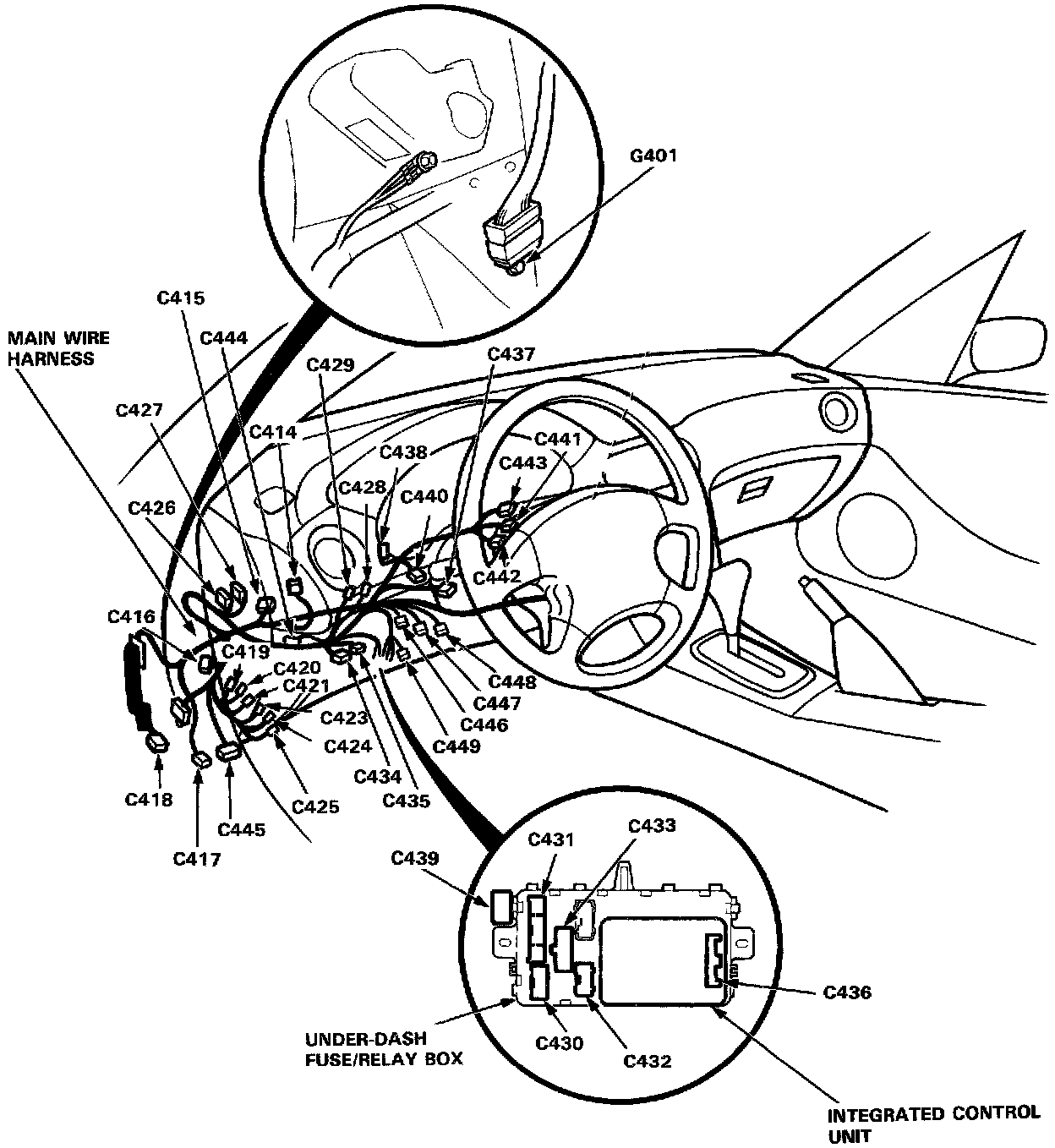

Main Wire Harness (Left Side Of Dash):

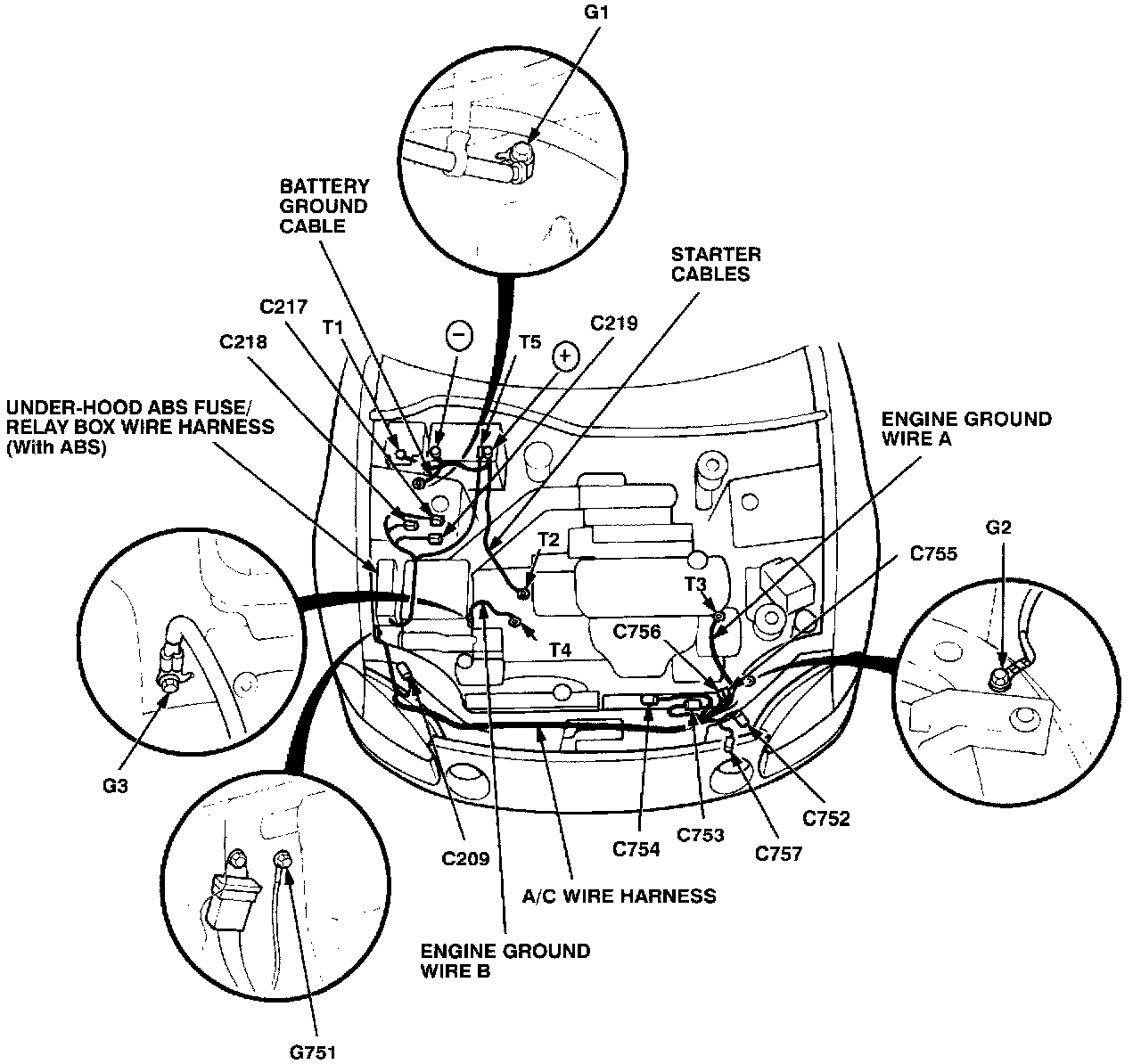

Under-hood ABS Fuse/Relay Box Wire Harness:
Wire Harness Routing:
