Del Sol L4-1.6L SOHC (VTEC)
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Main Wire Harness, Left Side of Dash
Main Wire Harness, Left Side of Dash

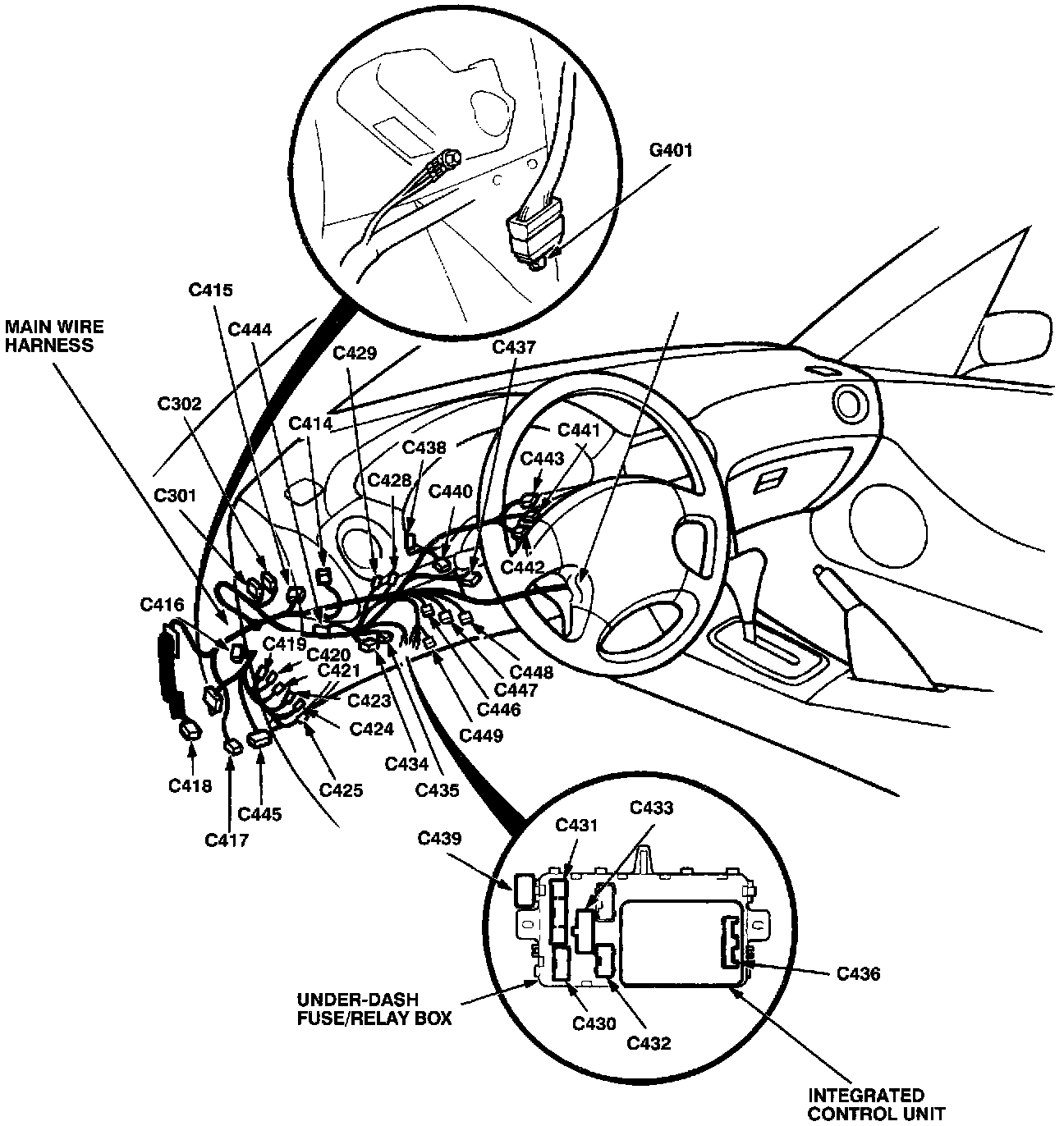

Main Wire Harness (Left Side Of Dash):

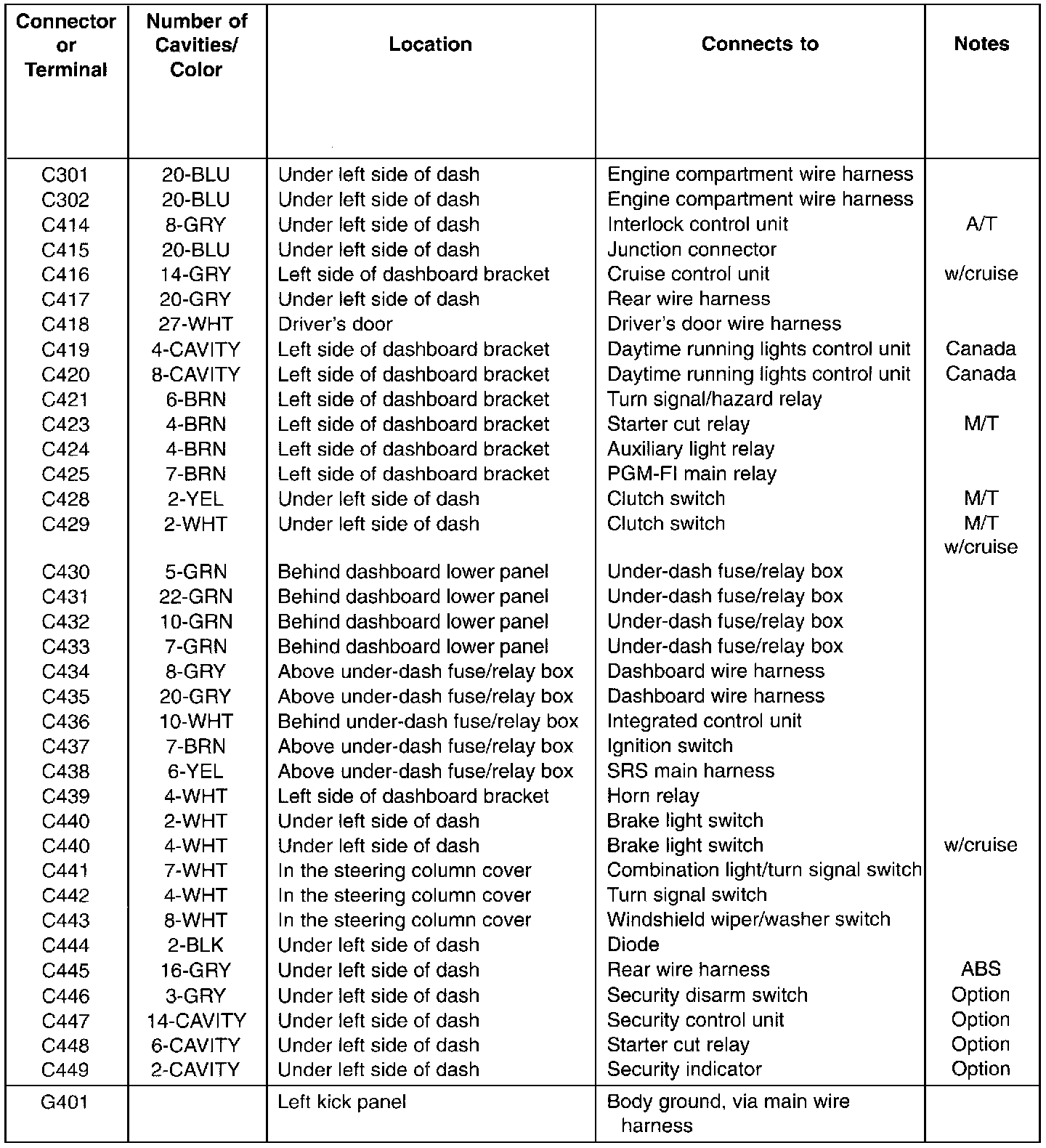

Main Wire Harness (Left Side Of Dash):
