Home >> Honda >> 1994 >> Del Sol L4-1.6L SOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> Under-Dash Fuse/Relay Box >> Fuse 3, 11

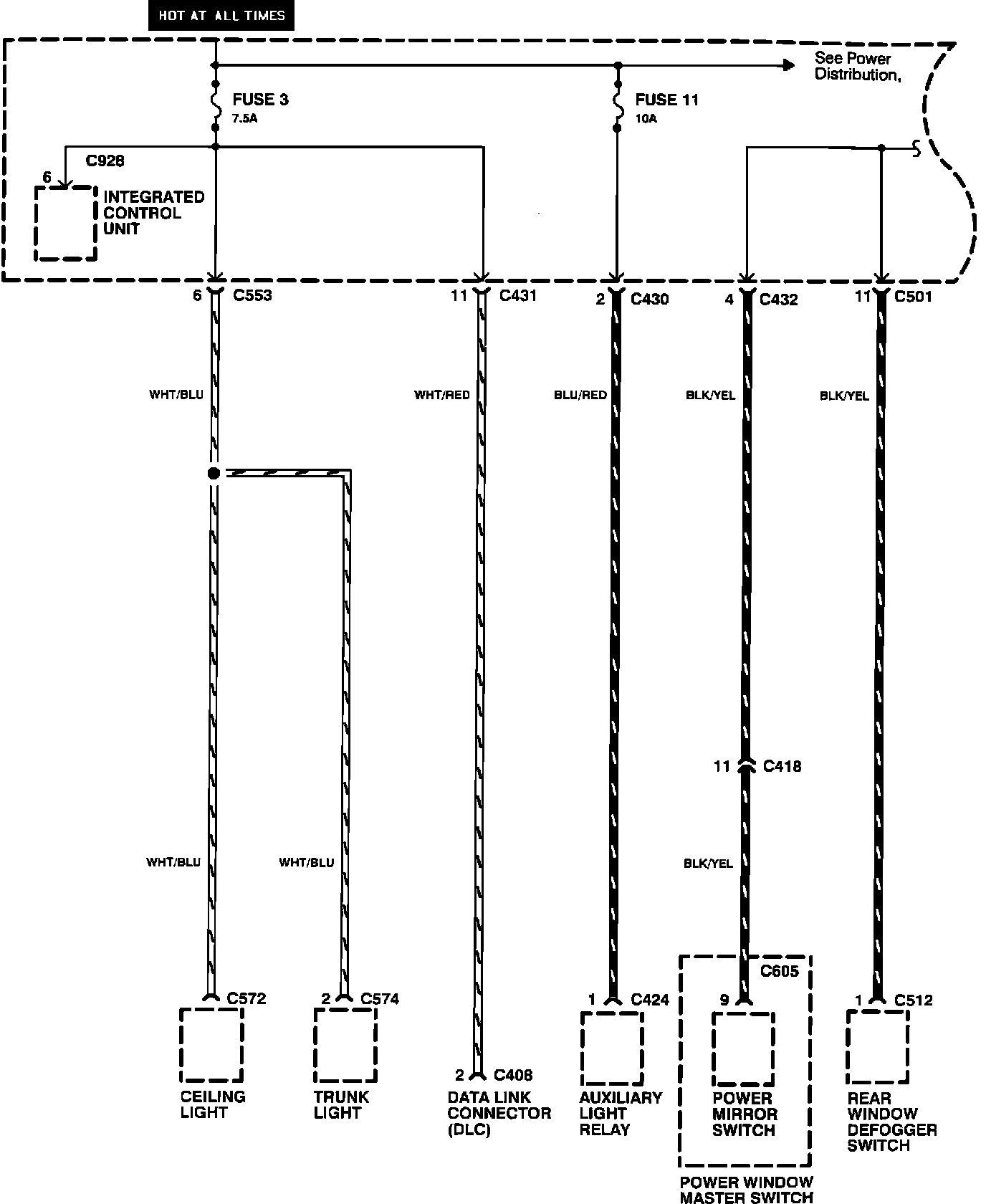

Fuse 3, 11

Power Distribution:
