Home >> Honda >> 1994 >> Del Sol L4-1.6L SOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Horn

Horn

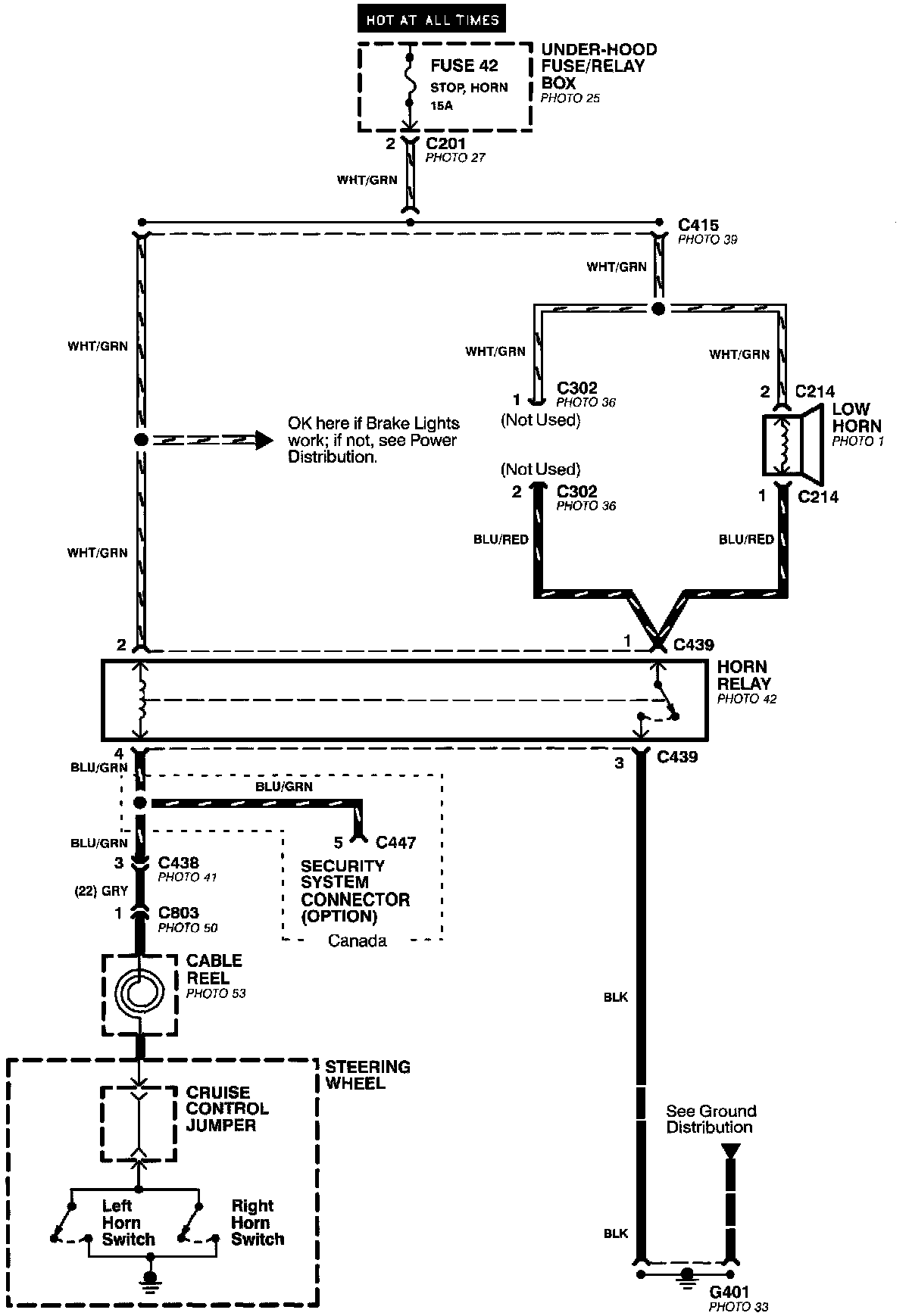

Horns-Without Cruise Control (Part 1 Of 2):

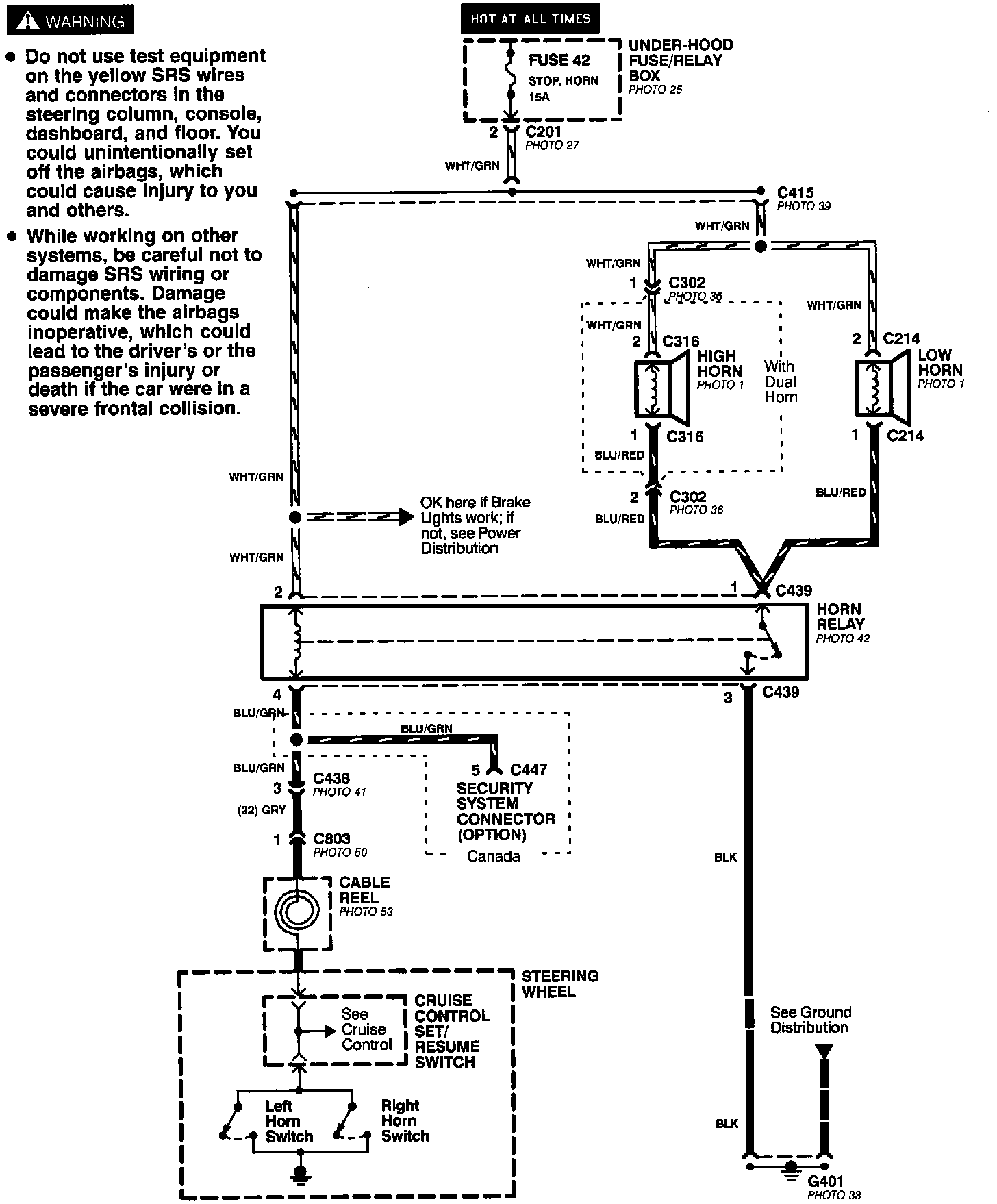

Horns- With Cruise Control (Part 1 Of 2):
