Civic L4-1493cc 1.5L SOHC (8 valve)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Malfunction Indicator Lamp
>>
Diagrams
>>
Electrical Diagrams
>>
VX Models
VX Models

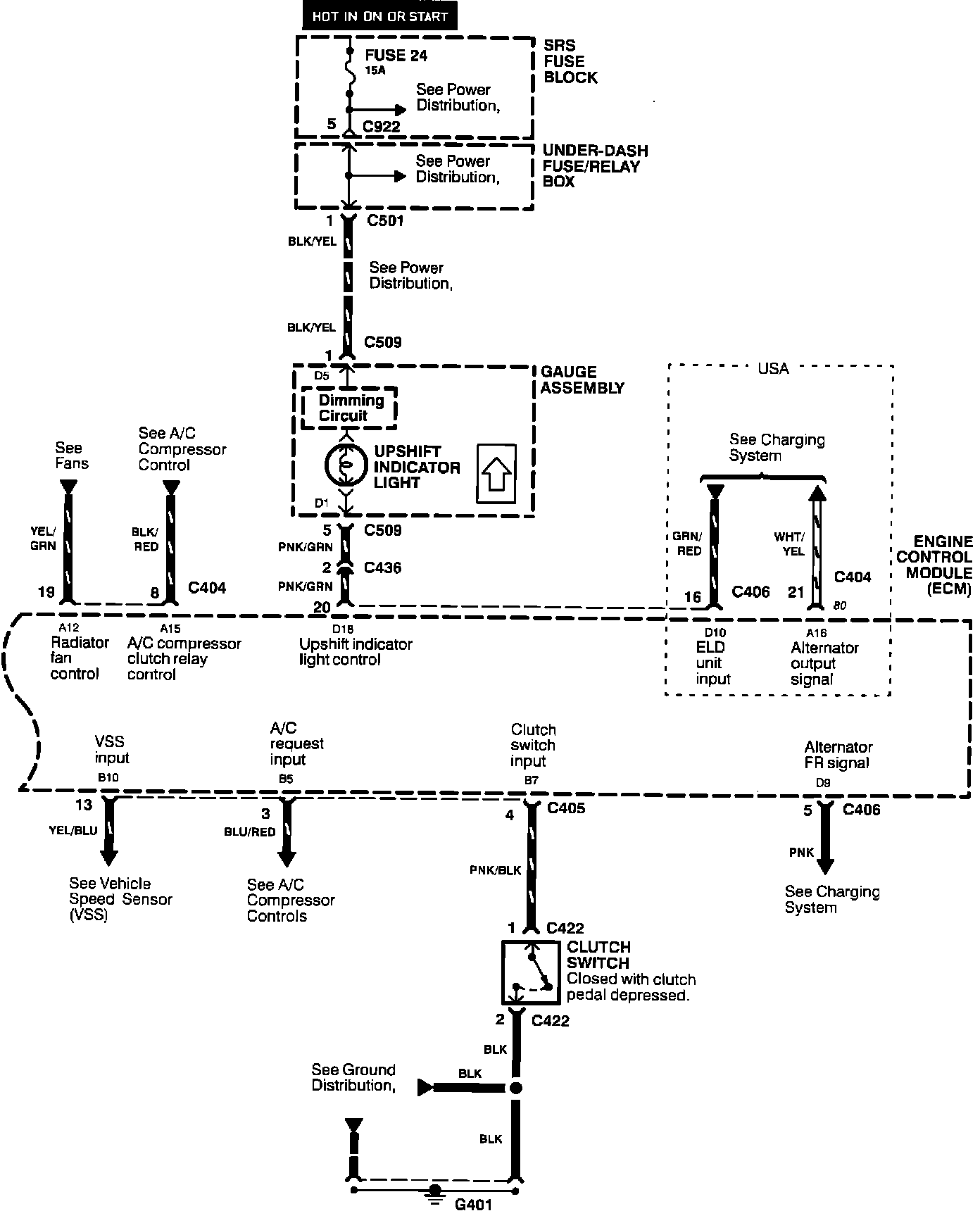

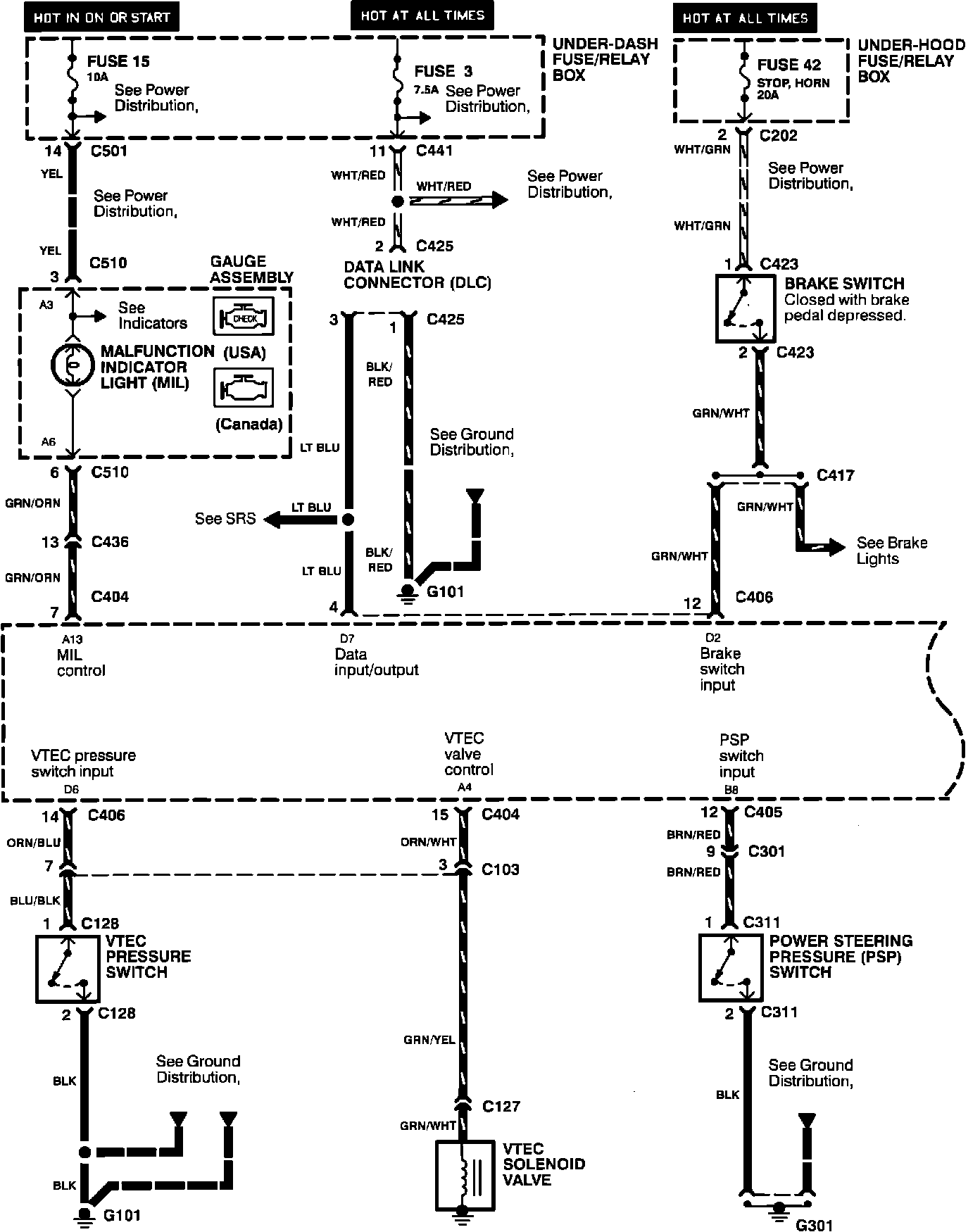

Programmed Fuel Injection System - VX Model:
Programmed Fuel Injection System - VX Model:
