Home
>>
Honda
>>
1994
>>
Civic L4-1493cc 1.5L SOHC (8 valve)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Malfunction Indicator Lamp
>>
Diagrams
>>
Electrical Diagrams
>>
Except VX
Except VX

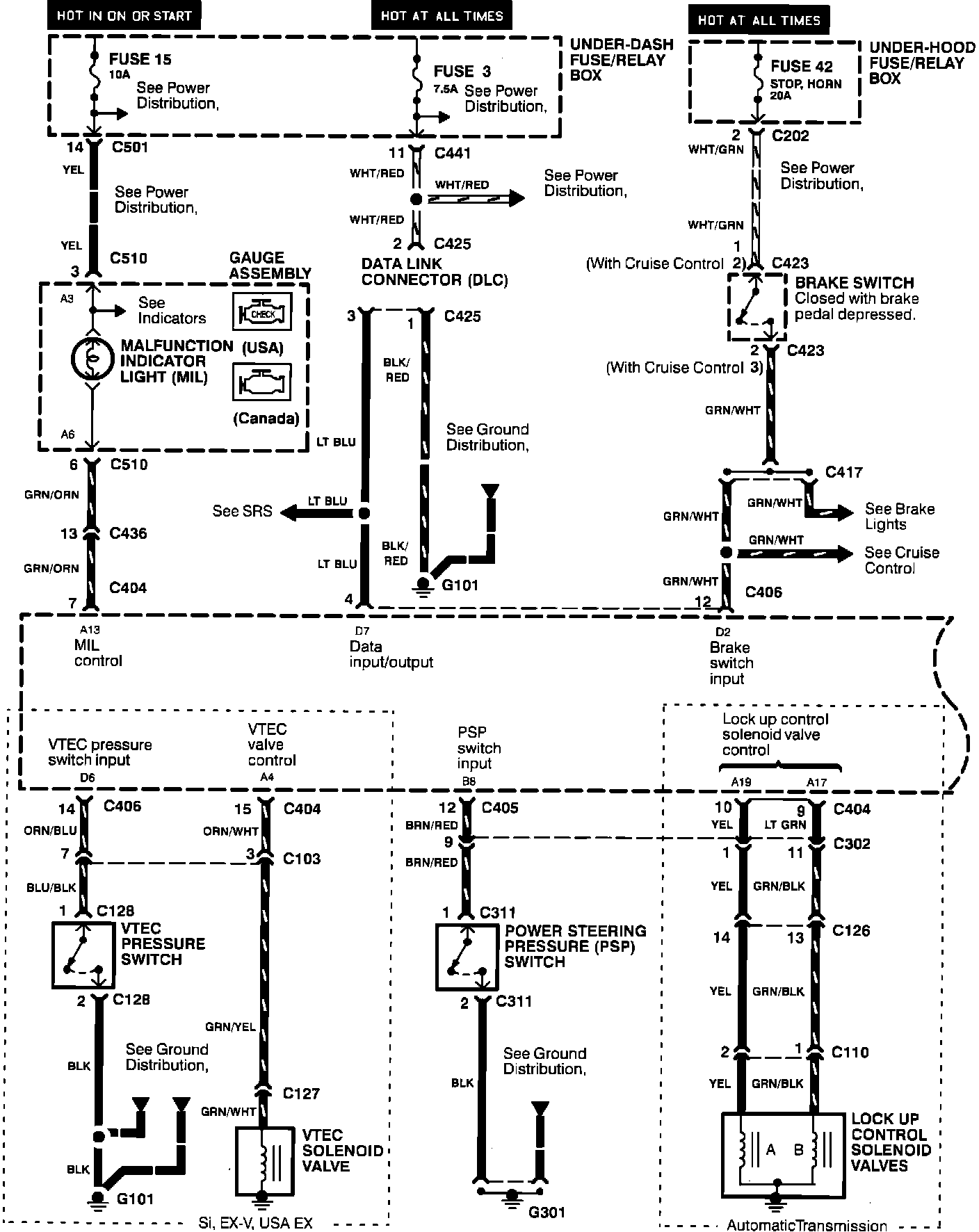

Programmed Fuel Injection System - All Except VX:
