Home
>>
Honda
>>
1994
>>
Civic L4-1493cc 1.5L SOHC (8 valve)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Harness Locations
>>
SRS Main Harness
SRS Main Harness

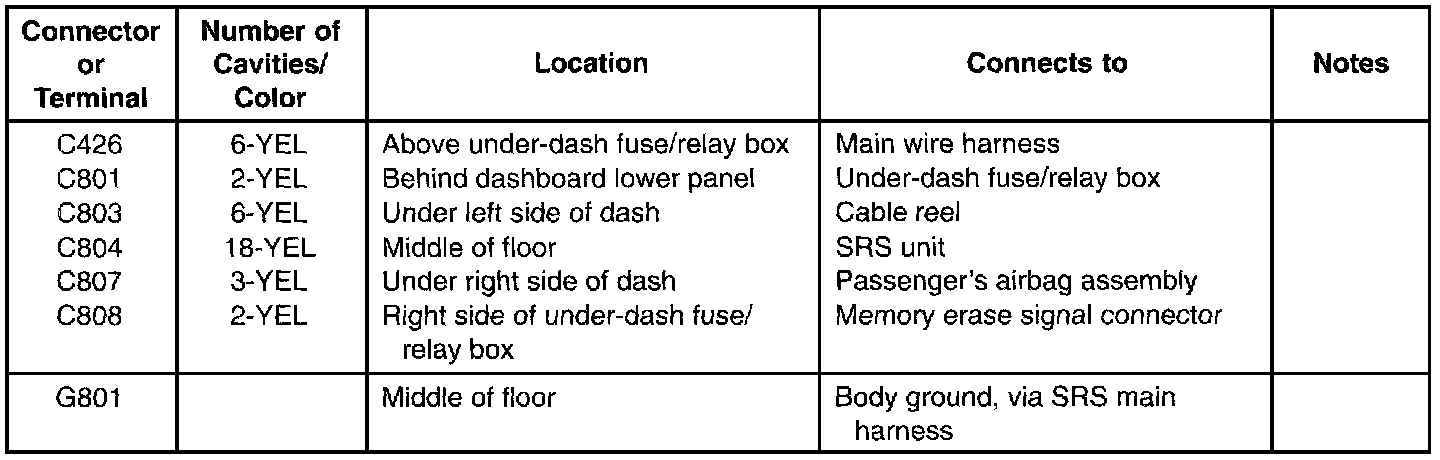

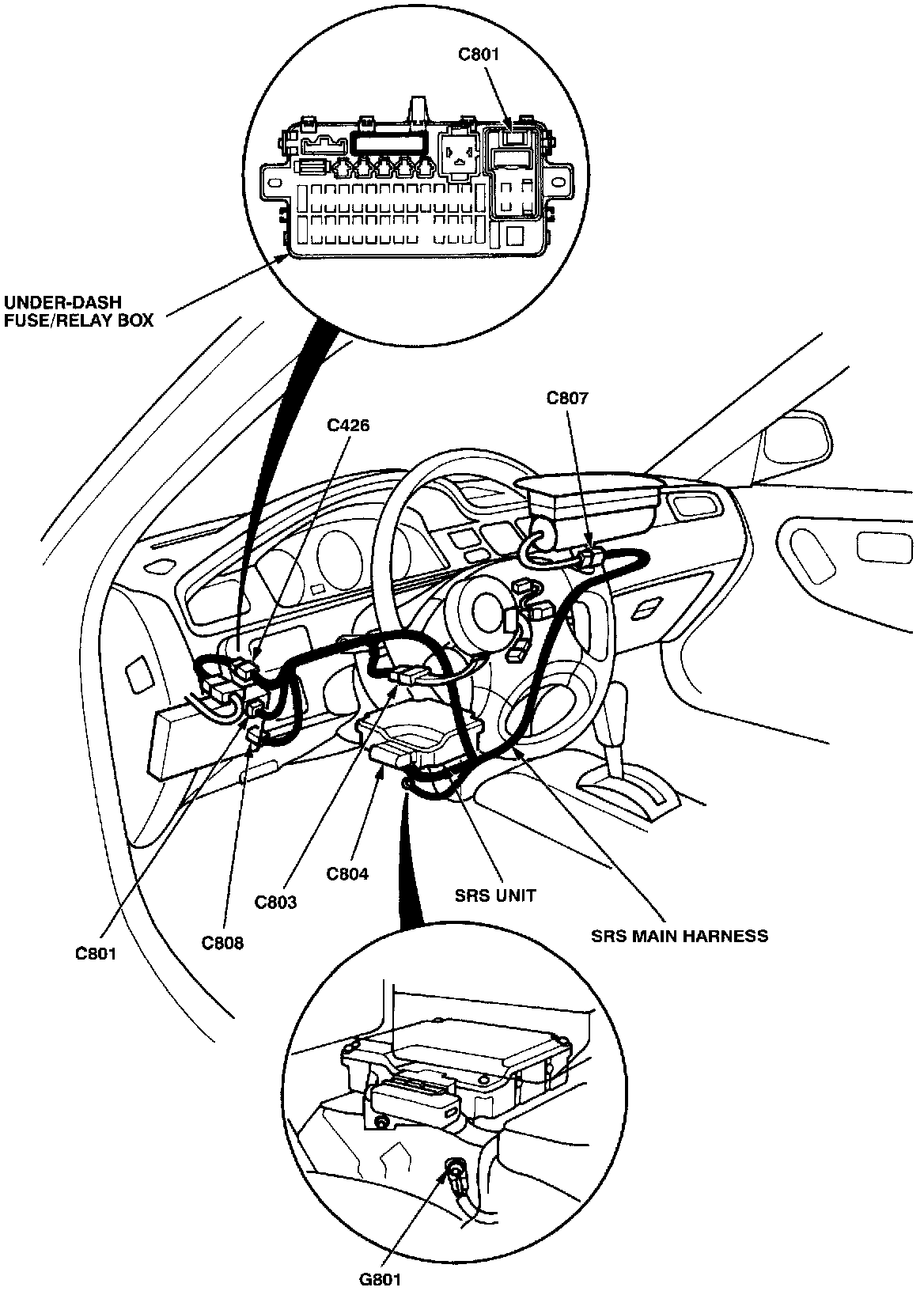

SRS Main Harness (Part 1 Of 2):
SRS Main Harness (Part 2 Of 2):
