Home
>>
Honda
>>
1994
>>
Civic L4-1493cc 1.5L SOHC (8 valve)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

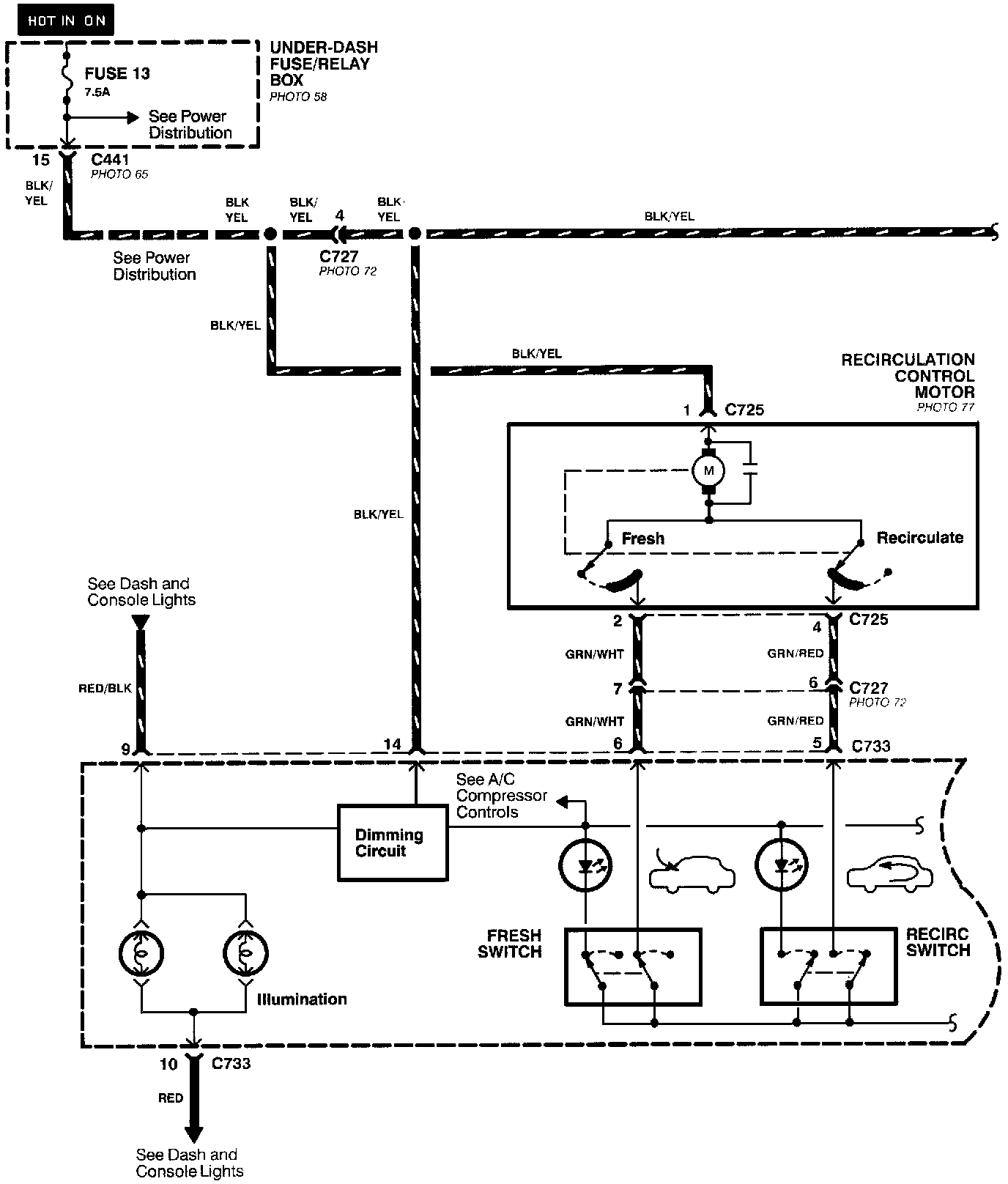

Air Delivery (Part 1 Of 2):

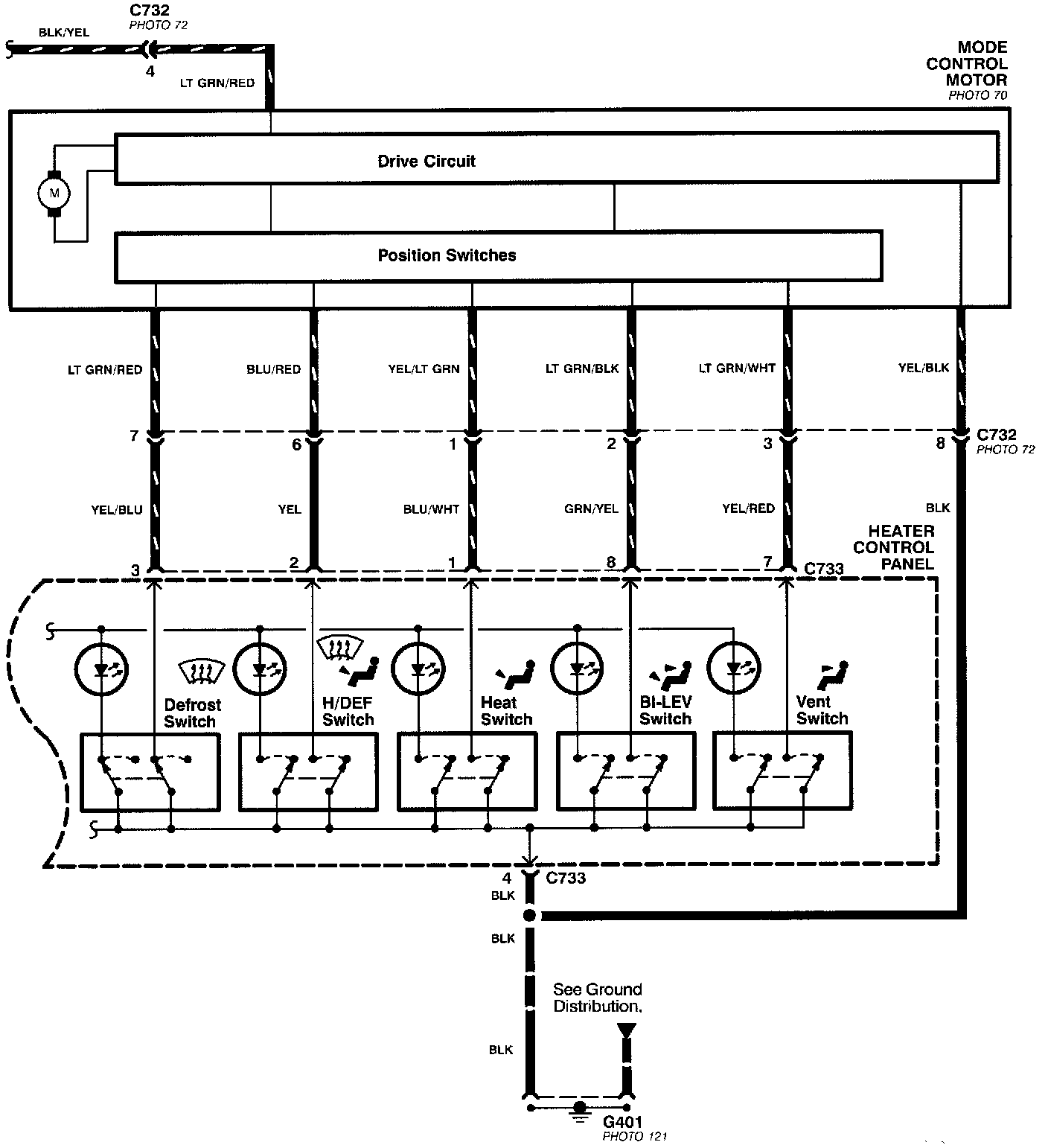

Air Delivery (Part 2 Of 2):
