Accord L4-2156cc 2.2L SOHC MFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G403
G403

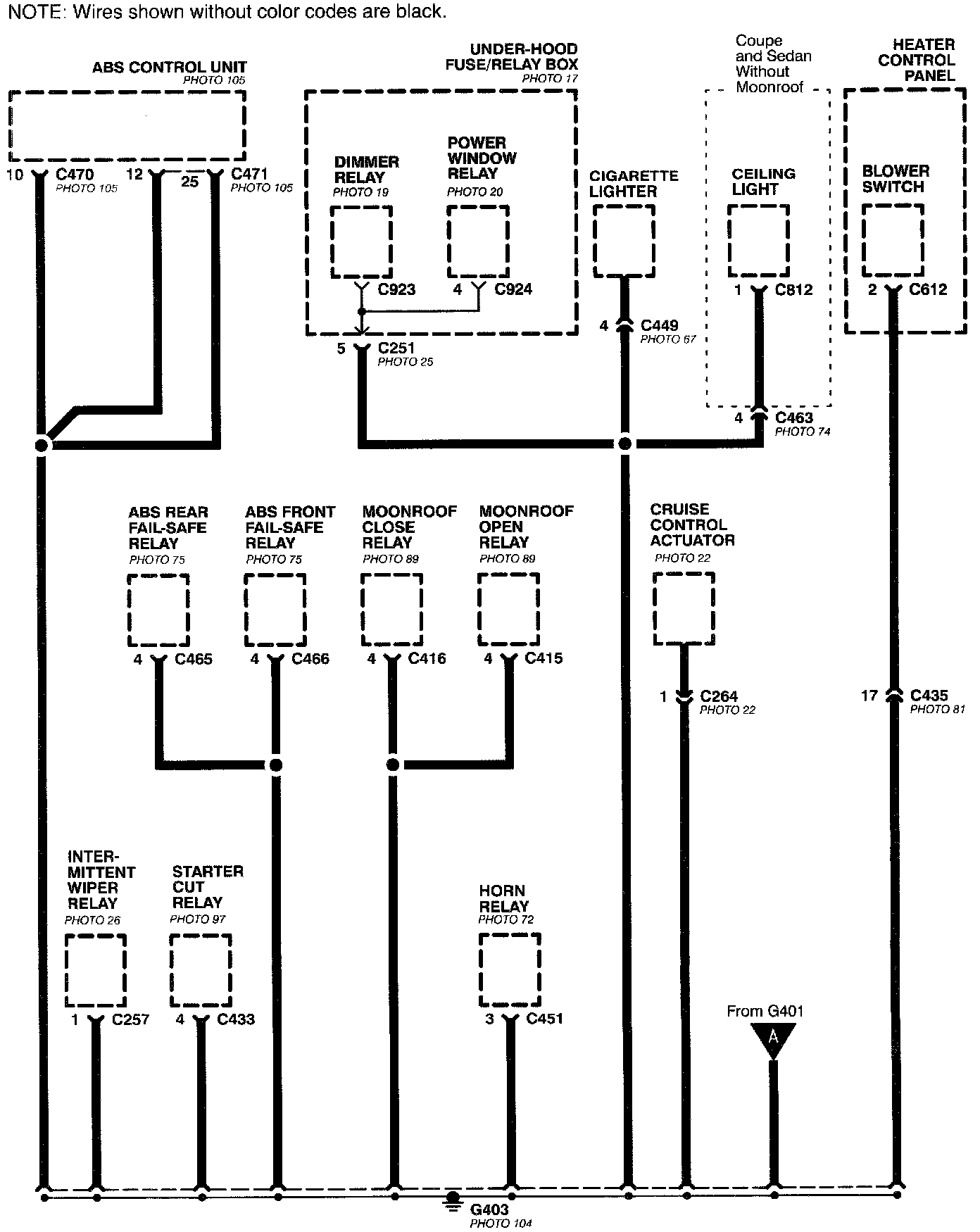

Ground Distribution- G403:
