Home >> Honda >> 1994 >> Accord L4-2156cc 2.2L SOHC MFI >> Repair and Diagnosis >> Lighting and Horns >> Daytime Running Lamp >> Locations

Daytime Running Lamp: Locations

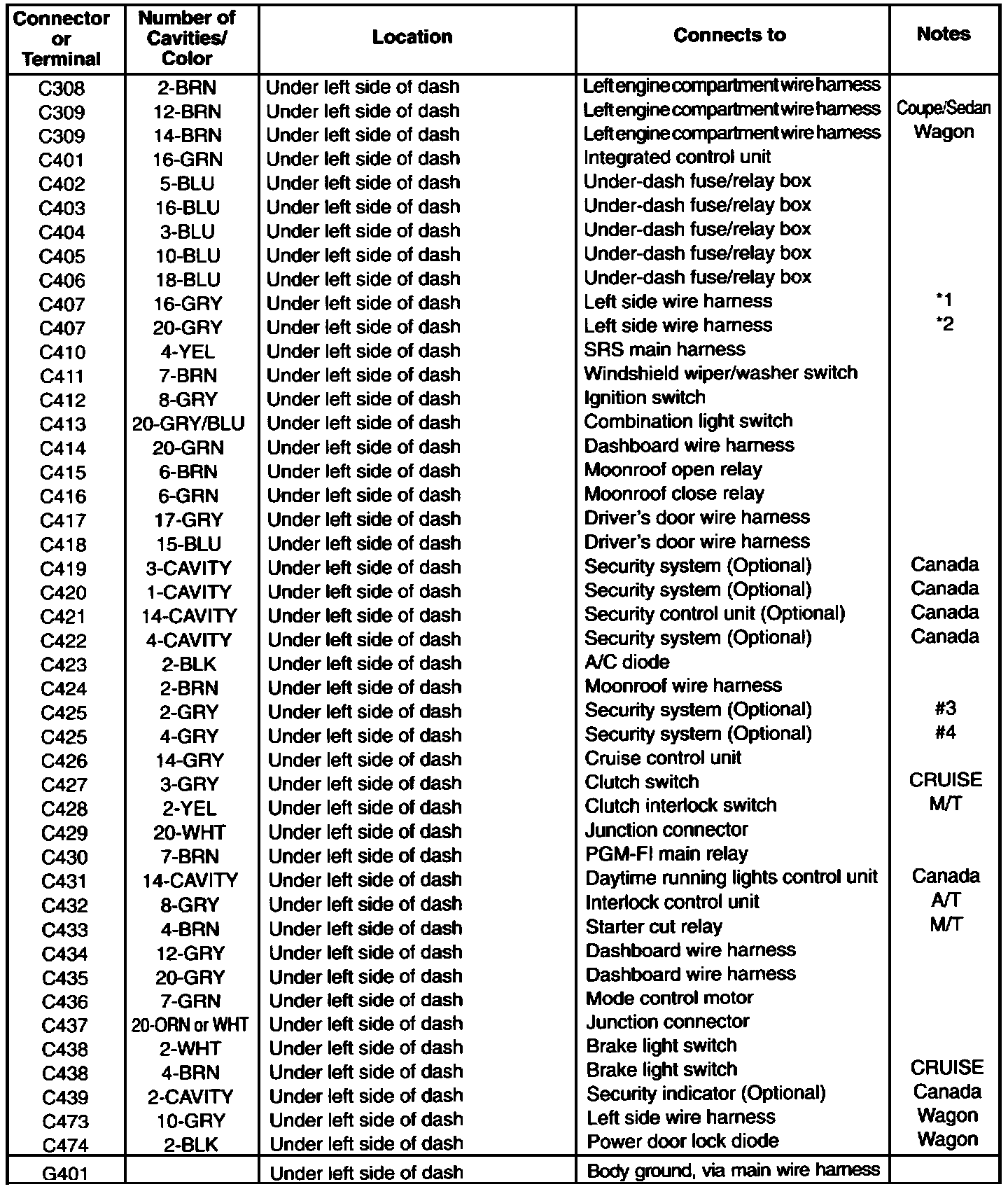

Main Wire Harness (Left Side Of Dash And Floor Branch):

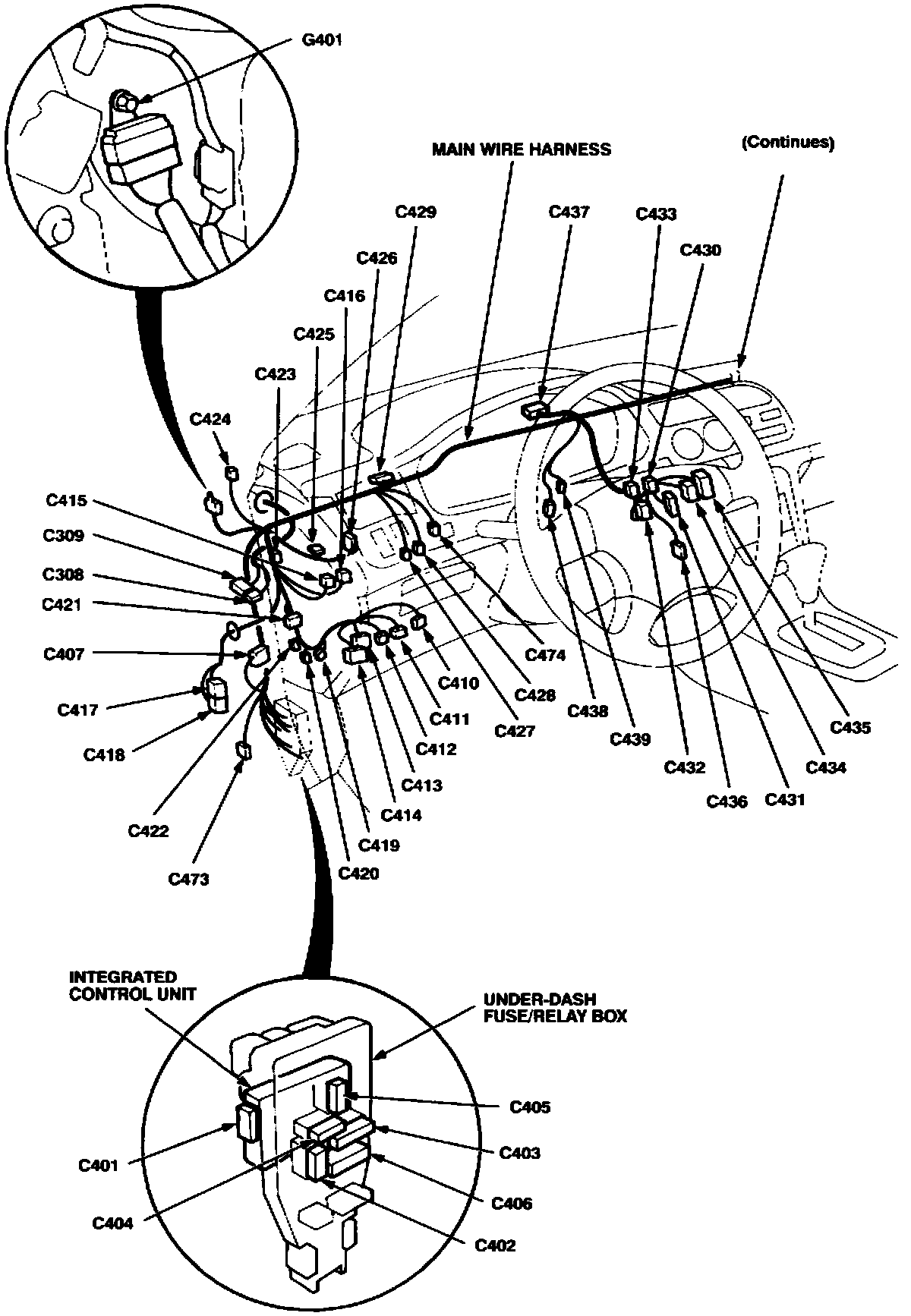

Wire Harness Routing:
